Mark-10 Force Gauges


Authorized Dealer
Mark-10 has been an innovative designer of force and torque measuring instruments for nearly a quarter of a century. Mark-10 produces a wide range of standard equipment and offer full engineering capabilities for customized applications.
Force Gauges
Force Gauges
Torque Testing Equipment
Torque Testing Equipment
Motorized Force Test Stands
Motorized Force Test Stands
Manual Test Stands
Manual Test Stands

Ergonomic Testing Systems

Software for Force Testing

Grips

Sensors

Accessories


Force Gauges

(View Full Comparison Chart)
2 Series 3 Series 4 Series 5 Series 7 Series
Mark-10 2 Series Force Gauges Mark-10 3 Series Force Gauges Mark-10 4 Series Force Gauges Mark-10 5 Series Force Gauges Mark-10 7 Series Force Gauges
Price from $465.50 $688.75 $897.75 $1,187.50 $1,805.00
Capacity 2 x 0.002 lb
5 x 0.005 lb
10 x 0.01 lb
20 x 0.02 lb
50 x 0.05 lb
100 x 0.1 lb
200 x 0.2 lb
500 x 0.5 lb
0.12 x 0.0001 lb
0.25 x 0.0002 lb
0.5 x 0.0005 lb
2 x 0.002 lb
5 x 0.005 lb
10 x 0.01 lb
20 x 0.02 lb
50 x 0.05 lb
100 x 0.1 lb
200 x 0.2 lb
500 x 0.5 lb
0.12 x 0.00005 lb
0.25 x 0.0001 lb
0.5 x 0.0002 lb
2 x 0.001 lb
5 x 0.002 lb
10 x 0.005 lb
20 x 0.01 lb
50 x 0.02 lb
100 x 0.05 lb
200 x 0.1 lb
500 x 0.2 lb
0.12 x 0.00002 lb
0.25 x 0.00005 lb
0.5 x 0.0001 lb
2 x 0.0005 lb
5 x 0.001 lb
10 x 0.002 lb
20 x 0.005 lb
50 x 0.01 lb
100 x 0.02 lb
200 x 0.05 lb
500 x 0.1 lb
1000 x 0.5 lb
2000 x 1 lb
0.12 x 0.00002 lb
0.25 x 0.00005 lb
0.5 x 0.0001 lb
2 x 0.0005 lb
5 x 0.001 lb
10 x 0.002 lb
20 x 0.005 lb
50 x 0.01 lb
100 x 0.02 lb
200 x 0.05 lb
500 x 0.1 lb
Accuracy ±0.5% ±0.3% ±0.2% ±0.1% ±0.1%
Measures Unit lbs, g, kg, N lbs, g, kg, N lbs, oz, g, kg, N, kN, mN lbs, oz, g, kg, N, kN, mN lbs, oz, g, kg, N, kN, mN
Connectivity USB USB USB / RS-232 USB / RS-232 USB / RS-232
Power AC adapter / Battery AC adapter / Rechargeable Battery AC adapter / Rechargeable Battery AC adapter / Rechargeable Battery AC adapter / Rechargeable Battery
  Free Shipping Free Shipping Free Shipping Free Shipping Free Shipping





Torque Testing Equipment

TT01 Cap Torque Testers TT02 Torque Tool Tester Series T-TT03 Series T-TT03C TT05 Torque Tester
Price From $1,529.50 $1,420.25 $1,330.00 $1,605.50 $1,353.75
Capacity 12 x 0.005 lbFin
25 x 0.01 lbFin
50 x 0.02 lbFin
100 x 0.05 lbFin
12 x 0.005 lbFin
25 x 0.01 lbFin
50 x 0.02 lbFin
100 x 0.05 lbFin
10 x 0.01 ozFin
20 x 0.02 ozFin
50 x 0.05 ozFin
12 x 0.01 lbFin
50 x 0.05 lbFin
100 x 0.1 lbFin
12 x 0.01 lbFin
50 x 0.05 lbFin
100 x 0.1 lbFin
12 x 0.005 lbFin
25 x 0.01 lbFin
50 x 0.02 lbFin
100 x 0.05 lbFin
Accuracy +0.5% +0.3% +0.5% +0.5% +0.3%
Measures Unit ozFin, lbFin, lbFft, Nm, Ncm ozFin, lbFin, lbFft, Nm, Ncm lbFin, ozFin, kgFmm, Ncm lbFin, kgFmm, Ncm ozFin, lbFin, lbFft, Nm, Ncm
Connectivity RS-232,. USB RS-232,. USB USB USB RS-232,. USB
Power AC adapter / Battery AC adapter / Battery AC adapter / Battery AC adapter / Battery AC adapter / Battery
  Free Shipping Free Shipping Free Shipping Free Shipping Free Shipping



WT3-201M Wire Crimp Pull Tester WT3-200 Manual Wire Crimp Pull Tester MR06-200 Wire Crimp Pull Sensor
Price $4,645.50 $1,980.99 $1,748.00
Capacity 200 x 0.1 lbF 200 x 0.1 lbF 200 x 0.1 lbF
Accuracy +0.2% +0.2% + 0.5%
Measures Unit lbF,ozF, kgF,N,kN lbF,ozF, kgF,N,kN lbF,ozF,kgF,N,kN
Connectivity RS-232, USB RS-232, USB 3i, 5i, 7i Force / Torque Indicators
(USB, RS-232, Mitutoyo, analog)
Power Universal input 80-240 VAC, 50/60 Hz Universal input 80-240 VAC, 50/60 Hz -
  Free Shipping Free Shipping Free Shipping

Digital Force / Torque Gauge

Coefficient Of Friction Gauge
Coefficient Of Friction Gauge
Price from $1,396.50
Capacity 5 x 0.001 COF
2 x 0.0005 lbF
32 x 0.01 ozF
1 x 0.0002 kgF
1000 x 0.2 gF
10 x 0.002 N
Accuracy +0.1% of full scale
Measures Unit lb oz kg
Connectivity USB / RS-232
Sampling rate 7,000 Hz
Power AC adapter
Rechargeable Battery
  Free Shipping

Series 3i Series 5i Series 7i
Price From $641.25 $973.75 $1,653.00
Capacity 50 - 10000 lb 50 - 10000 lb 50 - 10000 lb
Force / Torque Sensors
Wide range of Mark-10 remote force and torque sensors
Accuracy +0.2% +0.1% +0.1%
Measures Unit lbF,kgF,N,kN lbF,kgF,N,kN,ozF,gF lbF,kgF,N,kN,ozF,gF
Connectivity USB USB, RS-232, Mitutoyo, Analog USB, RS-232, Mitutoyo, Analog
Power AC adapter / Battery AC adapter / Battery AC adapter / Battery
USB output, set point indicators, load bar graph, selectable units, automatic shutoff, NIST cert. USB, RS-232, Mitutoyo, analog outputs, set point indicators/outputs, averaging, external trigger, memory, password.
  Free Shipping Free Shipping Free Shipping

Motorized Force Test Stands

Series-F EasyMESUR Series-F Advanced FS05 Force Sensors MR07 Force Sensors FS06 Force Sensors
Series-F-EM EasyMESUR Series-F FS05 Force Sensors MR07 Force Sensors FS06 Force Sensors
Price From $3,325.00 $8,882.50 $1,377.50 $760.00 $1,282.50
Travel Distance 18.0 in 14.20" / 18.0" / 32.00" Compatible with Models F105, F305, F505, and F505H. Adapter part no. AC1083 is required for Models F755, F755S, F1505, and F1505S. Compatible with Models F755, F755S, F1505, and F1505S. Cannot be used with Models F105, F305, F505, and F505H. Compatible with Models F105, F305, F505, and F505H.
Speed Range 0.02 - 45 in/min
[0.5 - 1,100 mm/min]
0.001 - 70 in/min
[0.02 - 1,800 mm/min]
Capacity 100 lbF [0.5 kN]
300 lbF [1.5 kN]
500 lbF [2.2 kN]
100 lbF [0.5 kN]
300 lbF [1.5 kN]
500 lbF [2.2 kN]
750 lbF [3.4 kN]
1,500 lbF [6.7 kN]
Control Manually control
(optional PC Control)
Manually control
  Free Shipping Free Shipping Free Shipping Free Shipping Free Shipping



ESM750 / ESM1500 ESM ESM303 TSFM500 / TSFM500H
ESM750 / ESM1500 ESM ESM303 TSFM500 / TSFM500H
Price From $6,362.63 $2,075.75 $3,068.50 $2,842.88
Travel Distance 14" / 31" 13" 18" 4"
Speed Range 0.5 - 24 in/min
[[10 - 600 mm/min]
0.5 - 13 in/min
[13 - 330 mm/min]
0.5 - 13 in/min
[13 - 330 mm/min]
0.2 - 5.5 in/min
[5 - 140mm/min]
Capacity 750 lbF
1,500 lbF
200 lb 300 lb 500 lb
Control Full PC control Remote control operation Full PC control Remote control operation
  Free Shipping Free Shipping Free Shipping Free Shipping


ESM-DC TSFM500-DC / TSFM500H-DC TSTM-DC / TSTMH-DC TSTM / TSTMH
Price $3,113.63 $3,745.38 $8,075.00 $3,339.25
Travel Distance 13" 4" 15.5" 4"
Speed Range 0.02 - 36 in/min
[0.5 - 900 mm/min]
0.01 - 6 in/min
[0.2 - 150 mm/min]
0.01 - 15 RPM
[0.05 - 90o/s]
0.3 - 8.6RPM
[4 - 52" /sec]
Capacity 200 lb 500 lb 100 lb 100 lb
Accuracy +0.2% of setting
+0% variation with load
+0.2% of setting
+0% variation with load
+0.2% of setting
+0% variation with load%
+5% of setting
Control Full PC control Full PC control Full PC control Remote control operation
  Free Shipping Free Shipping Free Shipping Free Shipping

Horizontal Motorized Test Stands

Model ESM303-H F505H-EM F505H-IM
ESM303-H F505H-EM F505H-IM
Price $3,655.13 $5,082.50 $11,590.00
Travel Distance 18" 18" 18"
Speed Range 0.5 - 13 in/min - [13 - 330 mm/min] 0.5 – 13 in/min - [13 – 330 mm/min] 0.02 - 45 in/min - [0.5 - 1,100 mm/min]
Capacity 300 lb 500 lb 500 lb
  Free Shipping Free Shipping Free Shipping

Old Horizontal Motorized Test Stands


Manual Test Stands

TSA / TSAH TSB100 Lever TSC1000 / TSC1000H TSF / TSFH
Price $1,125.75 $897.75 $1,558.00 $2,375.00
Travel Distance 6" 6" 3.5" 4"
Maximum Force 750 lb [3.75 Kn] 100 lb [500 N] 1000 lb [5 Kn] 1000 lb [5 Kn]
Maximum Travel with Stop 3.75" [95mm] 3.75" [95mm] - -
Maximum Travel without Stop 6" [152 mm] 6" [152 mm] 3.5" 4" [102 mm]
Travel Rate 3" [76.2 mm] 3" [76.2 mm] - 0.013" [0.34 mm]
  Free Shipping Free Shipping Free Shipping Free Shipping


TST / TSTH ES05 ES10 + ES20 ES30
Price From $3,087.50 Price $627.00 $627.00 $1,045.00
Max Torque 100lbin [11.3 Nm] Maximum Force 30 lb [150 N] 100 lb [500 N] 200 lb [1 Kn]
Maximum Slider Travel 15.5" [394 mm] Maximum Travel 1.5" [38 mm] 9" [229 mm] 13" [330 mm]
Slider Travel Rate 1.047" [26.6 mm]/lever rev Travel Rate - 1.050" [26.7mm]/Lever
0.083" [2.1mm]/Wheel Rev
0.05" [1.3mm]
Handwheel revolution
  Free Shipping   Free Shipping Free Shipping Free Shipping

Mark 10 Ergonomic Testing Systems

EKE EKE5 EK3 EK5 MK
EKE EKE5 EK3 EK5 MK
Price from $1,064.00 $1,662.50 $1,083.00 $1,213.86 $852.15
Maximum Force 100 x 0.05 lbF
200 x 0.05 lbF
500 x 0.1 lbF
100 lbf [1000 N] 500 lbf [2500 N] 500 lbf [2500 N] 200 lbf [1000]
Force Gauge Series E Series E Series 3 Series 5 MG Series
  Free Shipping Free Shipping Free Shipping Free Shipping Free Shipping



Mark 10 Software

Mark 10 WinWedge Software Mark 10 MesurGauge Software
Force Testing Software: Mark 10 MesurGauge data collection software transfers data from your force gauge to any Windows product. Any force or torque gauge with RS-232 data output is compatible with Mark-10 MESURgauge software. Built-in simulated data allows the customer to evaluate the program with data which can be graphed, analyzed, and manipulated just like real test data. A gauge and cable are not necessary
From


Mark 10 Grips & Attachements for Force Testing


Wire Terminal Grips

Wire / Rope Grips

Wheel Wire Terminal Grips

Dual Roller Grip

Adjustable Dual Roller Grip

High Capacity Eccentric Roller Grip

Film & Paper Grips

Pneumatic Grip

Parallel Jaw Grip
Parallel Jaw Vise-Action Grip
Parallel Jaw Vise-Action Grip

Self-Tightening Wedge Grip

Miniature Component Grip

Bottle Grip

Cap Grip

Jacob's Chuck Grip

Compression Plates

Rubber Tip

Swivel Adapter

STH Attachments

Jacob's Chuck Grip

Hooks

Flat Heads

Extension Rods

Chisel Points

Cone Points

V Grooves

Thread Adapters

Padded Attachments

Lock Ring

Anchor Pin

Eye End Adapters

Coefficient of Friction

Score Bend Fixture

Opening Force Fixture Set

Vise Grips

Miniature Wedge

Multi-Jaw Grip

Universal Cap Grip

Clevis Grip

High Capacity Wire/Rope Grip

Bend Fixtures

Loop Tack Fixture

Syringe Compression Fixture
Cork Pull Fixture
Cork Pull Fixture
Flip Cap Pull Grip
Flip Cap Pull Grip
G1104
Jam Washers
Jam Washers
G1084
Spanner Wrench
Spanner Wrench
G1088
Base / load cell adapter kit
Base / load cell adapter kits
AC1047
Base / load cell adapter kit
Grip adapter kits
AC1046
Force gauge adapter kit
Force gauge adapter kits
AC1045
Inline Adapters
Inline Adapters
AC1073
Mark-10 G1111 Ribbon Wrap Grip for ASTM D6775
Ribbon Wrap
G1111
Mark-10 G1110 Puncture Fixture for ASTM D5748 - 1,000 lbF
Puncture Fixture
G1110
Mark-10 G1123 Compression Plate, Self Leveling
Self Leveling Compression Plate
G1123
Mark-10 G1099 Puncture Fixture
Puncture Fixture
G1099






Mark 10 Force and Torque Sensors


SSM
Inline Compression and Tension Testing

SS
Tension and Compression Force

SJR
Miniature Force Sensors

SBC
Compression Force Sensor

STJ
Universal Torque Sensor

STB
Closure Torque Sensor

STH
Universal Torque Sensors

STE
Wrench Extension Torque

STC
Lightweight Torque Sensor

Mark 10 Plug & TestTM Force Sensor

for the Mark 10 5i and Mark 10 3i digital indicators

MR01
S-beam force sensors, tension and compression

MR02
Miniature button force sensors, compression only

MR03
Inline force sensors, tension and compression

MR04
Miniature S-beam force sensors, tension and compression

MR05
Fully enclosed smart sensors, push and pull

MR06
wire crimp pull sensor is a hand-operated solution.

Mark 10 Plug & TestTM Torque Sensor

for the Mark 10 5i and Mark 10 3i digital indicators

MR50
Universal torque sensors

MR51
Universal torque sensors with interchangeable attachments

MR52
Tool calibration torque sensors

MR55
Square Drive Torque Sensors


Mark 10 Accessories


08-1026
8.4V NiMH, for Series 5/4/3 gauges

AC1030
Replacment AC adapter/charger, 110V US

AC1031
AC adapter/charger, 220V Europe

AC1032
AC adapter/charger, 220V UK

AC1035
AC adapter/charger, 220V AUS

AC1002
Handle grip for Series 5/4/BG/EG, Double grip

AC1002-1
Handle grip for Series 5/4/BG/EG, Single grip

AC1003
Double handle grip for Series 3/MG

AC1003-1
Single handle grip for Series 3/MG

AC1004
Mounting kit, BGI/MGT to TS-Series stands

AC1006
Mounting kit, STC, table top

AC1007
Mounting Kit for STJ

AC1010
Mounting kit, STE200/400, table top

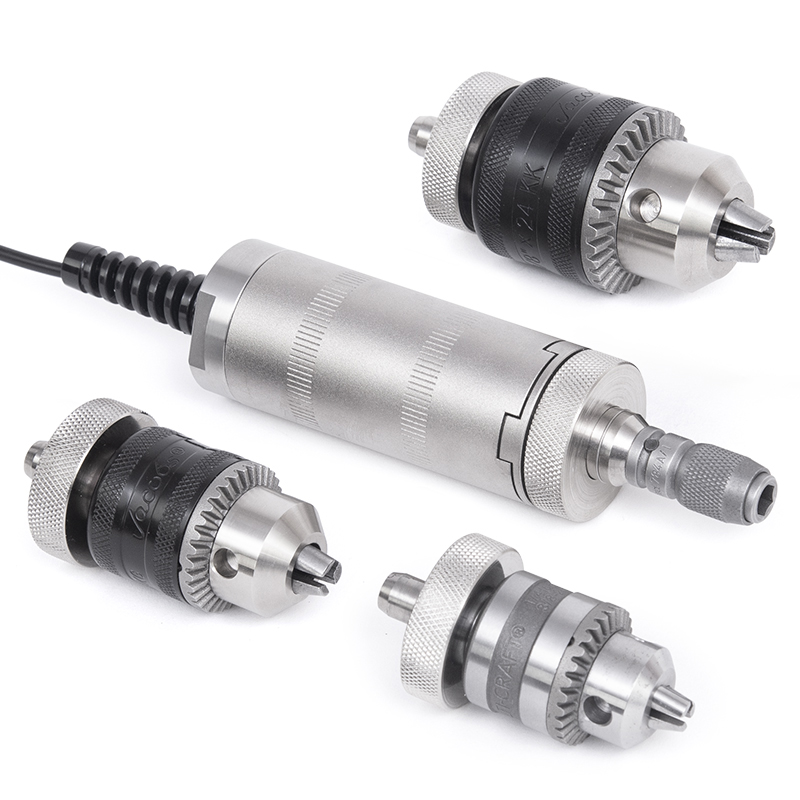

AC1014
Jacobs chuck for STC, 0.062?-0.375? dia.

AC1015
Mounting kit, STH to TST-Series stands

AC1016
Mounting kit, STE200/400 to TST-Series stands

AC1018
Mounting kit, SS/SSM to test stand

AC1019
Air connection kit for G1046

AC1020
Gauge mounting kit, Chatillon DFE/DFS/DFX

AC1021
Gauge mounting kit, Chatillon DFM

AC1022
Gauge mounting kit for Chatillon DFIS

AC1023
Gauge mounting kit, Mecmesin AFG/BFG

AC1024
Gauge mounting kit, Imada Z2/DS2/DPZ/DPS

AC1025
Gauge mounting kit, Shimpo FGV/FGE/FGX

AC1029
Axial compensator

AC1041
Gauge Mounting Kit, Imada Z2/DS2 to TSA750/TSC1000/TSF












Mark 10 Force Gauges

Compare the models - click here

Mark 10 BG Digital Force Gauges Mark 10 BG Digital Force Gauges
±0.2% accuracy. RS-232, Mitutoyo and analog outputs with automatic timed output on RS-232. Dual setpoints with outputs, programmable analog and digital filters. Reversible aluminum housing for hand held use or stand mounting. Full computer control capabilities. Measures in lbs, kg/g and N. Auto peak memory, push button calibration, battery or AC operation.
- Capacity: 0.25 to 500 lbs (1 to 2500 N, 100 g to 250 kg) from $897.75
Mark 10 CG High Capacity Digital Force Gauge Mark 10 CG High Capacity Digital Force Gauge
±0.2% accuracy. RS-232, Mitutoyo and analog outputs with automatic timed output on RS-232. Dual setpoints with outputs, programmable analog and digital filters. Measures in lbs, kg/g and N. Auto peak memory, push button calibration, battery or AC operation. Full computer control capabilities.
- Capacity: 500 or 1000 lbs (250 or 500 kg, 2500 or 5000 N) $1,349.00
Mark 10 EG Digital Force Gauges Mark 10 EG Digital Force Gauges
±0.3% accuracy. Dual setpoints with outputs, programmable analog and digital filters. Reversible aluminum housing for hand held use or stand mounting. Optional RS-232, Mitutoyo and analog outputs with automatic timed output on RS-232. Measures in lbs, kg/g and N. Auto peak memory, push button calibration, battery or AC operation. Configurable measurement settings
- Capacity: 0.25 to 500 lbs (1 to 2500 N, 100 g to 250 kg) from $627.00

Mark 10 Torque Testing Equipment

Mark 10 MGT Digital Torque Gauges Mark 10 MGT Digital Torque Gauges
±0.5% accuracy. Dedicated remote torque sensor with Jacobs chuck and compact size. Rugged aluminum housing with peak memory for clockwise and counterclockwise readings. With push button calibration and 30 readings/second sampling rate.
- Capacity: 10 oz-in to 100 lb-in from N/A
Mark 10 ST Torque Tool Tester Mark 10 ST Torque Tool Tester
A simple yet accurate solution for testing torque screwdrivers, wrenches, and other tools. Applications exist in manufacturing facilities in virtually every industry. The ST features a solid aluminum housing, making it rugged enough for many years of service in production or laboratory use, while a universal receptacle with square drive and grooves accepts common bits and attachments.
- 12 x 0.01 lbin
- 50 x 0.05 lbin
- 100 x 0.1 lbin
$1,078.49



Mark 10 Motorized Force Test Stands

Compare the models - click here

Mark 10 ESM Motorized Test Stand Mark 10 ESM Motorized Test Stand
Versatile and precise test stand for compression & tensile force testing with modular design. Adjustable speed with a remote control unit. With a manual fine adjustment knob and stepper motor.

- Capacity: 200 lb
- 13" max travel
- Speed Range - 0.5-13 in/min [13-330 mm/min]
- Speed accuracy - ±5% of setting, ±0% variation with load

$2,075.75
Mark 10 TSFM500 / TSFM500H Motorized Test Stands
Mark 10 TSFM500 / TSFM500H Motorized Test Stands

Mark 10 TSFM500 / TSFM500H Motorized Test Stands
Available in vertical or horizontal (H) configuration. Remote control operation with removable base. Ideal for compression & tension testing of springs, fabrics, metals, packaging and more.

- Capacity: 500 lb
- 4" travel
- Speed Range - 0.2-5.5 in/min [5-140 mm/min]
- Speed accuracy - ±5% of setting, ±0% variation with load
$2,842.88
Mark 10 TSTM / TSTMH Motorized Test Stands
Mark 10 TSTM / TSTMH Motorized Test Stands
Mark 10 TSTM / TSTMH Motorized Test Stands
Motorized test stands are available in vertical or horizontal (H) configuration. Ideal for closure torque testing, fastener torque testing and more up to 100 lb capacity. Motorized clockwise and counterclockwise rotation.
- Capacity: 100 lb
- 4" travel
- Speed Range - 0.3 -8.6 rpm (4-52°/sec)
- Speed accuracy - ±5% of setting
$3,339.25

Mark 10 Manual Test Stands

Compare the models - click here

Mark 10 TST/TSTH Manual Torque Test Stand
Mark 10 TST/TSTH Manual Torque Test Stand
Mark 10 TST / TSTH Manual Torque Test Stand
Ideal for a wide variety of torque testing applications up to 100 lb-in, including closure torque testing, fastener torque testing, and more. The TST’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures.

- Capacity: 100 lb-in

$3,087.50
Mark 10 TSTM / TSTMH Motorized Test Stands
Mark 10 TSTM / TSTMH Motorized Test Stands
Mark 10 TSA750 / TSA750H Lever Operated Manual Test Stands
The Mark 10 TSA/TSAH lever operated force measurement test stand is a perfect solution for quick-action pull testing and compression testing of up to 750 lb of tensile or compressive force. Modular design.
- Capacity: 750 lb
- 6" travel
$1,125.75
Mark 10 TSB Lever Operated Manual Test Stands Mark 10 TSB100 Lever Operated Manual Test Stands
A perfect solution for quick-action pull testing and compression testing of up to 100 lb of tensile or compressive force. Loading lever can be positioned in 30° increments for ease of operation. Optional adjustable travel stops.
- Capacity: 100 lb
- 6" travel without stops, 3.75" with stops
$897.75
Mark 10 TSC / TSCH Handwheel Operated Manual Test Stands
Mark 10 TSC / TSCH Handwheel Operated Manual Test Stands
Mark 10 TSC1000 / TSC1000H Handwheel Operated Manual Test Stands
The Mark 10 TSC1000/TSC1000H hand wheel operated force measurement test stand is ruggedly built for pull testing and compression testing of up to 1000 lb. A large hand wheel requires little effort, even at high loads. Compatible with all Mark-10 force gauges and grips.
- Capacity: 1000 lb
- 3.5 " travel
$1,558.00
Mark 10 TSF / TSFH Handwheel Operated Manual Test Stands
Mark 10 TSF / TSFH Handwheel Operated Manual Test Stands
Mark 10 TSF / TSFH Handwheel Operated Manual Test Stands
Features a convenient side-mounted hand wheel and modular design with a rigid 3" x 3" column. With a removable steel loading surface with threaded holes for fixture and grip mounting. Available in vertical or horizontal configurations. Ideal for spring testing, destructive testing, product integrity testing and more.
- Capacity: 1000 lb
- 4" travel
$2,375.00
Mark10 ES05 Manual Test Stands Mark10 ES05 Manual Test Stands
Compact and economical solutions for compression testing of small samples. Spring loaded lever mechanism is an economic solution for repetitive low force testing
- Capacity: 30 lb $627.00
Mark10 ES10 and ES20 Manual Test Stands
Mark10 ES10 and ES20 Manual Test Stands
Mark10 ES10 and ES20 Manual Test Stands
Compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results.
- Capacity: 100 lb from $627.00
Mark10 ES30 Manual Test Stands Mark10 ES30 Manual Test Stands
The Mark-10 ES30 Force Measurement Test Stand is a versatile and economical solution for most compression and tensile testing applications. Precision hand wheel operation enables the user to easily and accurately test up to 200 lb of force.
- Capacity: 200 lb $1,045.00



Mark 10 Ergonomic Testing Systems


Mark 10 MK Ergonomics Testing Kit Mark 10 MK Ergonomics Testing Kit
The new Ergonomic Testing Kits from Mark-10 make job task analysis and ergonomic testing analysis simple and accurate, ideal for ADA compliance, workplace design, and ergonomic studies. These kits present the ergonomics and other professionals with a simple and economical testing solution. Comes complete with a Mark-10 MG force gauge, attachments, accessories -- all in a padded carrying case

- Capacity: 200 or 500 lbs

$852.15
Mark-10 EK5-500 Ergonomics testing kit, 500 lb capacity Mark-10 EK5 Ergonomics testing kits
Series EK5 kits make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, physical therapy, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution. 200 lb and 500 lb capacity force gauges are available

- Capacity: 200 lbs

$1,213.86

Mark 10 serves a variety of industries including medical, pharmaceutical, automotive, textile, food and beverage. Typical applications are suture strength measurement, package seal strength measurement, torque tool calibration, bottle cap testing, fastener torque measurement and man others.

All of Mark-10's products utilize the latest developments in sensor technology, electronics and materials. They are built in the United States and calibrated in Mark-10's laboratory to NIST standards. Certificates of calibration are included with every instrument.

Mark 10 Force Gauge Comparison Chart

Model Series 7 Series 5 Series 4 Series 3 Series 2
Professional
Advanced
Performance
Basic
Economical
Accuracy of full scale +0.1% +0.1% +0.2% +0.3% +0.5%
Sampling rate 14,000 Hz 7,000 Hz 3,000 Hz 2,000 Hz 500 Hz
Resolution 1/5,000 1/5,000 1/2,000 1/1,000 1/1,000
Data Outputs USB, RS-232, Mitutoyo, analog USB, RS-232, Mitutoyo, analog USB, RS-232, Mitutoyo, analog USB, via DATA key press only -
ASCII command set for external communication YES YES command only (request current reading) - -
Data capture & storage capabilities Continuous data capture at up to 14,000 Hz*, with buffer, or individually saved readings, 5,000 readings total 1,000 individually saved readings 50 individually saved readings - -
Statistical calculations and output to PC YES YES YES - -
Break detection* YES - - - -
1st / 2nd peak detection* YES - - - -
Programmable footswitch command string YES - - - -
Averaging mode YES* - - - -
External trigger mode YES** - - - -
Set points (for pass / fail indication) Yes, with high / low indicators, markers on analog bar graph, and outputs Yes, with high / low indicators, markers on analog bar graph, and outputs Yes, with high / low indicators, markers on analog bar graph, and outputs Yes with high/low indicators, markers on analog bar graph, no output -
Password Protection for keys and calibration YES YES - - -
Overload outputs, w/pins for tension and compression YES YES YES - -
Units of measurement 7, including coefficient of friction unit and user-defined unit 5 5 3 3
Peaks and analog load bar always shown on display YES YES YES YES -
Included Items Carrying case with complete set of attachments, AC adapter, rechargeable battery, and calibration cert with data Carrying case with complete set of attachments, AC adapter, rechargeable battery, and calibration cert with data Carrying case with complete set of attachments, AC adapter, rechargeable battery, and calibration cert with data Same as Series 7/5/4, with certificate of calibration without data Non-rechargeable 9V battery
More More> More More More
* With configurable automatic data output, data storage, and zero function upon event completion. Can also stop travel of the ESM301/ESM301L test stand.
** Can stop travel of the ESM301/ESM301L test stand upon event completion.




Old Horizontal Motorized Test Stands

Model ESMH-DC TSFM500H TSFM500H-DC TSTMH TSTMH-DC
ESMH-DC TSFM500H TSFM500H-DC TSTMH TSTMH-DC
Price $3,474.63 $2,842.88 $3,745.38 $3,339.25 $8,075.00
Travel Distance 13" 4" 4" 15.5" 15.5"
Speed Range 0.2 - 50 in/min [5 - 1270 mm/min] 0.2 - 5.5 in/min [5 - 140 mm/min] 0.01 - 6 in/min [0.2 - 150 mm/min] 0.3-8.6 RPM (4-52o/s) 0.01 - 15 RPM [0.05 - 90o/s]
Capacity 100 lb 500 lb 500 lb 100 lb 100 lb
  Free Shipping Free Shipping Free Shipping Free Shipping Free Shipping



Old Force Gauges

CG Series BG Series EG Series
Mark-10 CG Series Force Gauges
Price From: $1,349.00 $897.75 $627.00
Capacity 500 x 0.2 lb -
1000 x 0.5 lb
0.12 x 0.00005 lb
- 500 x 0.2 lb
0.12 x 0.00005 lb
- 500 x 0.2 lb
Accuracy +0.2% +0.2% +0.3%
Measures Unit lbs, kg/g and N lbs, kg/g and N lbs, kg/g and N
Connectivity RS-232 RS-232 RS-232
Power AC adapter / Battery AC adapter / Rechargeable Battery AC adapter / Battery
  Free Shipping Free Shipping Free Shipping




Old Torque Testing Equipment

CTA Closure Tester / Cap Torque Tester STA Torque Tool Tester MGT Digital Torque Gauges
Price From $1,168.74 $1,078.49 N/A
Capacity 12 - 100 lb-in 12 x 0.01 - 100 x 0.1 lb-in 10 oz - 100 lb-in
Accuracy +0.5% +0.5% +0.5%
Measures Unit lb-in lb-in oz and lb-in
Connectivity RS-232 RS-232 -
Power AC adapter / Battery AC adapter / Battery Battery
  Free Shipping Free Shipping Free Shipping

View Cart | Specials | Contact Us | Home | Blog | Sitemap | Store Policies | Your Account | Enter Monthy Contest

For Orders, Phone toll-free 800-832-0055
All other inquiries, please phone 718-336-5900
FAX 718-627-1313
TEXT: 718-336-5900

Chat with us via WhatsApp Chat whatsapp: 718 787 8658



Scales & Equipment: Value Electronic Scales | Value Mechanical Scales | Lab / Analytical Scales | Baby Scales | Bathroom Scales | Bariatric Scales | Body Fat Monitors | Pro Body Composition Monitors | Calibration Weights | Counting Scales | Crane ScalesDeli/Food/Grocery Scales | Dynamometers | Fish/Game Scales | Floor Scales | Force Gauges | Industrial-Use Scales | Jewelry Scales | Livestock Scales"Legal for Trade" Scales | Medical Scales | Moisture Analyzers | Pallet Scales | Pocket ScalesPortable Spring Gauges | Shipping Scales  | Specialty Medical Scales | Test Stands / Force Measurement | Veterinary Scales


Manufacturers: Acculab digital scales | AND electronic scales | Best Weight mechanical scales| Detecto Physician's Scales | CAS digital scales | Chatillon/Ametek mechanical and electronic scales | DigiWeigh Economical Scales | Dillon Crane Scales, Dynamometers & Force Testing Products| Easy Weigh Legal for Trade Scales | Health O Meter Scales | Hoto Instruments | Imada Force Measurement | InScale Floor Scales | Mark-10 Force Testing | Mettler Toledo® | Minx Economical Pocket Scales | Ohaus electronic and mechanical scales | Tanita digital scales | Salter Brecknell | Sartorius Lab Balances | Seca Medical Scales | Great Gift Ideas



© 2000 2024 scalesgalore.com   All rights reserved.
Phone Myaccount cart home Home
×
