Mark 10 Series 4 Digital Force Gauges |
Authorized Dealer |

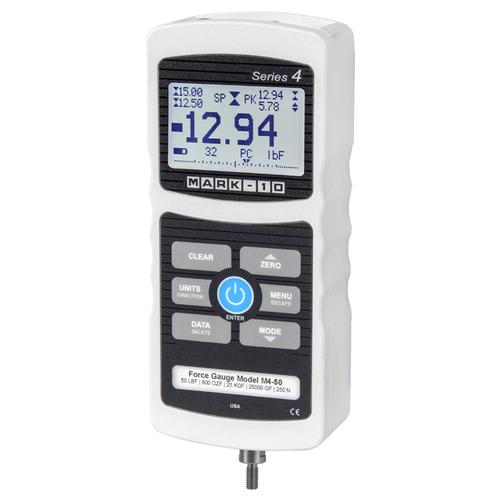

| Series 4 digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is +0.2% of full scale +1 digit, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. |
| Force Measurement >> Mark-10 |
|
View Specifications Chart
On-board data memory for up to 50 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.
Series 4 gauges include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data from Series 5 and 4 gauges. Data saved in the gauge’s memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.
- High-speed 3,000 Hz sampling rate
- USB, RS-232, Mitutoyo, and analog outputs
- Large backlit graphic display
- 50-point data memory with statistics (min, max, mean, standard deviation) and outputs
- Live load bar graph with set point markers
- Programmable set points, with alarms and outputs
- Peak readings and set points always displayed
- 5 selectable units of measurement
- Configurable audio alarms and key tones
- Password protection, configurable for individual keys and calibration
|
|
 Series 4 digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is +0.2% of full scale +1 digit, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
| Model |
Price |
Capacity X Resolution |
| M4-012 |
$1,425.00
|
0.12 x 0.00005 lb
2 x 0.001 oz
50 x 0.02 g
0.5 x 0.0002 N
500 x 0.2 mN
Weight: 1.0 lb [0.45 kg] |
| M4-025 |
$1,425.00
|
0.25 x 0.0001 lb
4 x 0.002 oz
100 x 0.05 g
1 x 0.0005 N
1000 x 0.5 mN
Weight: 1.0 lb [0.45 kg] |
| M4-05 |
$1,068.75
|
0.5 x 0.0002 lb
8 x 0.005 oz
250 x 0.2 g
2.5 x 0.002 N
2500 x 1 mN
Weight: 1.0 lb [0.45 kg] |
| M4-2 |
$897.75
|
2 x 0.001 lb
32 x 0.02 oz
1000 x 0.5 g
1 x 0.0005 kg
10 x 0.005 N
Weight: 1.0 lb [0.45 kg]> |
| M4-5 |
$897.75
|
5 x 0.002 lb
80 x 0.05 oz
2500 x 1 g
2.5 x 0.001 kg
25 x 0.01 N
Weight: 1.0 lb [0.45 kg] |
| M4-10 |
$897.75
|
10 x 0.005 lb
160 x 0.1 oz
5000 x 2 g
5 x 0.002 kg
50 x 0.02 N
Weight: 1.0 lb [0.45 kg] |
| M4-20 |
$897.75
|
20 x 0.01 lb
320 x 0.2 oz
10000 x 5 g
10 x 0.005 kg
100 x 0.05 N
Weight: 1.0 lb [0.45 kg] |
| M4-50 |
$897.75
|
50 x 0.02 lb
800 x 0.5 oz
25000 x 10 g
25 x 0.005 kg
250 x 0.1 N
Weight: 1.0 lb [0.45 kg] |
| M4-100 |
$897.75
|
100 x 0.05 lb
1600 x 2 oz
50000 x 20 g
50 x 0.01 kg
500 x 0.2 N
Weight: 1.0 lb [0.45 kg] |
| M4-200 |
$1,068.75
|
200 x 0.1 lb
3200 x 2 oz
100 x 0.05 kg
1000 x 0.5 N
1 x 0.0005 kN
Weight: 1.2 lb [0.54 kg] |
| M4-500 |
$1,068.75
|
500 x 0.2 lb
8000 x 5
250 x 0.1 kg
2500 x 1 N
2.5 x 0.001 kN
Weight: 1.2 lb [0.54 kg] |
| Accuracy |
+0.2% of full scale +1 digit |
| Power |
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low |
| Battery life |
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
|
| Measurement units |
lb, oz, g, kg, N, kN, mN (depending on model) |
| Outputs |
USB / RS-232: Configurable up to 115,200 baud
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: +1 VCD, +0.25% of full scale at capacity
General purpose: Three open drain outputs, one input
Set points: Three open drain lines.
|
| Configurable settings |
Digital filters, outputs, automatic shutoff, default settings, key tones, audio alarms, calibration |
| Safe overload |
150% of full scale (display shows “OVER” at 110% and above) |
| Included items |
Carrying case, chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration with data |
| Warranty |
3 years (see individual statement for further details)
|
| Model |
M4-012 |
M4-025 |
M4-05 |
M4-2 |
M4-5 |
M4-10 |
M4-20 |
M4-50 |
M4-100 |
M4-200 |
M4-500 |
| Included Extension Rods |
G1024 |
G1031 |
| Included Cone |
G1026 |
G1033 |
| Included Chisel |
G1025 |
G1032 |
| Included V-Groove |
G1027 |
G1034 |
| Included Flat |
G1029 |
G1036 |
| Included Hook |
G1028 |
G1038 |
G1035 |
| Included Coupling |
- |
G1039 |
G1037 |
|
Thread |
Hex |
| M4-012 - M4-100 |
#10-32 |
5/16 |
| M4-200 - M4-500 |
5/16-18 |
11/32 |
Grips
|
