Mark 10 MG Digital Force Gauges |
 Authorized Dealer |
| The Mark-10 MGT Torque Gauge is an economical solution for most basic torque measurement applications. A dedicated remote torque sensor with a Jacobs chuck can be used to grip a sample or fixture. The Mark 10 MGT digital torque gauge is available in a wide variety of capacities, from 10 oz-in to 100 lb-in | |
| Force Measurement >> Torque Measurement >> Mark-10 | |
|

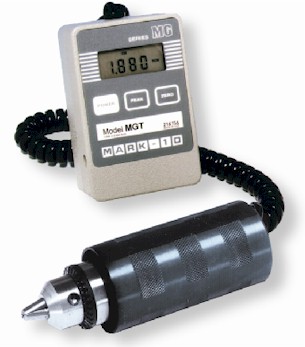

The Mark-10 MGT Torque Gauge is an economical solution for most basic torque measurement applications. A dedicated remote torque sensor with a Jacobs chuck can be used to grip a sample or fixture. The Mark 10 MGT digital torque gauge is available in a wide variety of capacities, from 10 oz-in to 100 lb-in
Features:
- Low cost
- Programmable automatic shutoff
- Programmable default configuration
- Selectable units of measurement
- Rugged aluminum housing
- Remote sensor
- Peak memory for clockwise and counter clockwise readings
- IPM - Intelligent Power Management
- Push-button calibration
- Capacities from 10 ozin (7 Ncm) to 100 lbin (1150 Ncm)
- Battery or AC operation
Specifications:
- Accuracy: ± 0.5% of full scale ±1 digit
- Sampling rate: 30 readings/sec
- Safe overload: 150% of capacity
- Battery life: 30 hours of continuous operation
- Weight: 1.8 lbs (0.8 kg)
- Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
- Warranty: 3 years

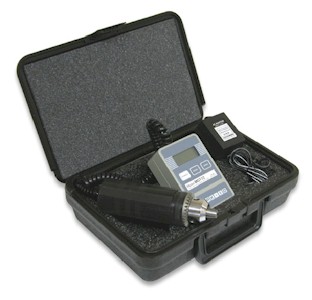

Series MG torque gauges are supplied in a cushioned carrying case with AC adapter, battery, chuck key, user's manual, and NIST-traceable certificate of calibration
| Model | Capacity x resolution | Price | |
|---|---|---|---|
| MGT10Z | 10 x 0.01 ozin, 7 x 0.005 kgFmm, 7 x 0.005 Ncm, 110V |
 |
|
| MGT20Z | 20 x 0.02 ozin, 14 x 0.01 kgFmm, 14 x 0.01 Ncm, 110V |
|
|
| MGT12 | 12 x 0.01 lbin, 140 x 0.1 kgFmm, 135 x 0.1 Ncm, 110V |
|
|
| MGT100 | 100 x 0.1 lbin, 1150 x 1 kgFmm, 1150 x 1 Ncm, 110V |
|

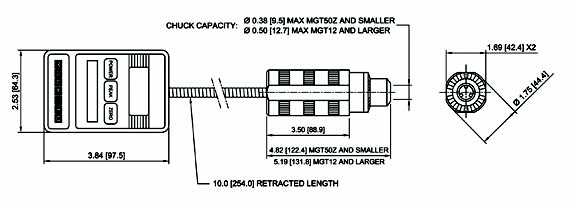

Dimensions:
