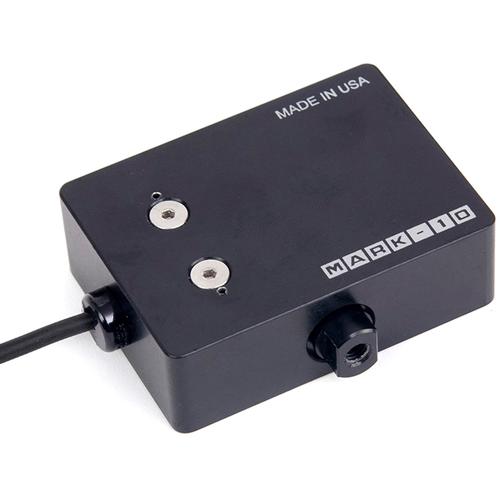

Mark-10 R03 Tension and Compression Force Sensors |
Authorized Dealer |
| Force measurement sensor for tensile and compressive loads in a wide variety of applications, available in capacities from 0.25 lb to 100 lb. Thread on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.
|
| Force Measurement >> Mark-10 |
Force measurement sensor for tensile and compressive loads in a wide variety of applications, available in capacities from 0.25 lb to 100 lb. Thread on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.
| Model |
Price |
Capacity x Resolution
(With Model 3i) |
Capacity x Resolution
(With Model 5i and 7i) |
| MR03-025 |
$869.25
|
0.25 x 0.0002 lbF
1 x 0.001 N
100 x 0.1 gF |
0.25 x 0.0001 lbF
1 x 0.0005 N
4 x 0.002 ozF
100 x 0.05 gF
1000 x 0.5 mN |
| MR03-05 |
$869.25
|
0.5 x 0.0005 lbF
2.5 x 0.002 N
250 x 0.2 gF |
0.5 x 0.0002 lbF
2.5 x 0.001 N
8 x 0.005 ozF
250 x 0.1 gF
2500 x 1 mN |
| MR03-2 |
$726.75
|
2 x 0.002 lbF
1 x 0.001 kgF
10 x 0.01 N |
2 x 0.001 lbF
1 x 0.0005 kgF
10 x 0.005 N
32 x 0.02 ozF
1000 x 0.5 gF |
| MR03-5 |
$726.75
|
5 x 0.005 lbF
2.5 x 0.002 kgF
25 x 0.02 N |
5 x 0.002 lbF
2.5 x 0.001 kgF
25 x 0.01 N
80 x 0.05 ozF
2500 x 1 gF |
| MR03-10 |
$726.75
|
10 x 0.01 lbF
5 x 0.005 kgF
50 x 0.05 N |
10 x 0.005 lbF
5 x 0.002 kgF
50 x 0.02 N
160 x 0.1 ozF
5000 x 2 gF |
| MR03-20 |
$726.75
|
20 x 0.02 lbF
10 x 0.01 kgF
100 x 0.1 N |
20 x 0.01 lbF
10 x 0.005 kgF
100 x 0.05 N
320 x 0.2 ozF
10000 x 5 gF |
| MR03-50 |
$726.75
|
50 x 0.05 lbF
25 x 0.02 kgF
250 x 0.2 N |
50 x 0.02 lbF
25 x 0.01 kgF
250 x 0.1 N
800 x 0.5 ozF
25000 x 10 gF |
| MR03-100 |
$726.75
|
100 x 0.1 lbF
50 x 0.05 kgF
500 x 0.5 kN |
100 x 0.05 lbF
50 x 0.02 kgF
500 x 0.2 N
1600 x 1 ozF
50000 x 20 gF |
