| The Mark10 ES10 and ES20 manual test stands are compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement. Use these stands with force gauges and grips to create complete and economical testing systems. | |
| Force Measurement >> Torque Measurement >> Mark-10 | |
|
|||||

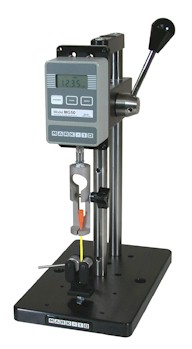

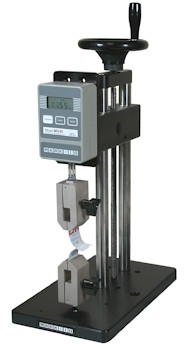

The Mark10 ES10 and ES20 manual test stands are compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement. Use these stands with force gauges and grips to create complete and economical testing systems.
Features / Specifications:
- Maximum Travel: 9" [229 mm]
- Maximum Force: 100 lb [500 N]
- Travel Rate:1.050" [26.7mm]/Lever
0.083" [2.1mm]/Wheel Rev - Small size
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting
- Large, removable baseplate with 5 #10-32 UNF holes for fixture mounting
Optional Equipment
- A wide range of force gauges and gripping fixtures
- Dial indicator kit (shown right) - Displays 1" [25.4 mm] of displacement in increments of 0.001"
| Model | Capacity x resolution | Price | |
|---|---|---|---|
| ES10 | Test stand, lever-operated, 100 lb | $627.00 |
 |
| ES20 | Test stand, hand wheel operated, 100 lb | $736.25 |
|
| ES001 | Dial indicator kit, 1" travel | $161.50 |
|
| 14-1068 | Base Plate with Matrix of tapped holes for ES10/20 | $85.50 |
|
Dimensions:

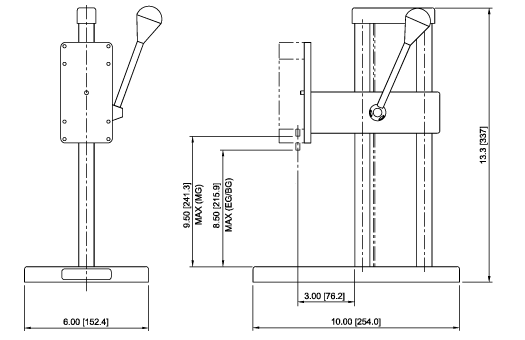

ES10:

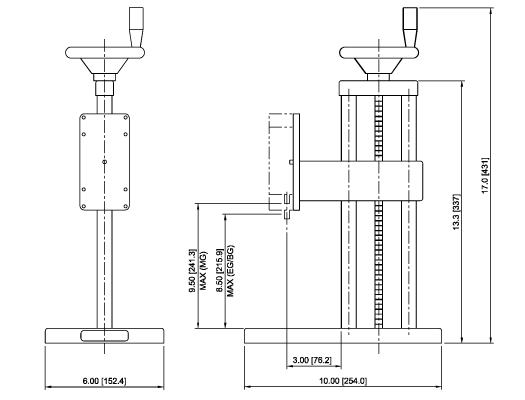

ES20:
