Mark 10 Series M5 Digital Force Gauges |
Authorized Dealer |
| Series 5 advanced digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). |
| Force Measurement >> Mark-10 |
|
On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
The Series 5’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 5 force gauges are directly compatible with Mark-10 test stands, grips, and software.
Features
- High-speed 7,000 Hz peak sampling rate
- USB, RS-232, Mitutoyo, and analog outputs
- Large backlit graphic display
- 1,000-point data memory with statistics and outputs
- Live load bar graph with set point markers
- Programmable set points, with alarms and outputs
- Peak readings and set points always displayed
- Averaging mode - calculates average readings over time
- External trigger mode - for switch contact testing or remotely stopping display update
- Automatic data output via USB/RS-232
- 5 selectable units of measurement
- Configurable audio alarms and key tones
- Password protection, configurable for individual keys and calibration
|
|
| Model |
Price |
Capacity X Resolution |
| M5-012 |
$1,676.75
|
0.12 x 0.00002 lb
2 x 0.0005 oz
50 x 0.01 g
0.5 x 0.0001 N
500 x 0.1 mN
Weight: 1.0 lb [0.45 kg] |
| M5-025 |
$1,676.75
|
0.25 x 0.00005 lb
4 x 0.001 oz
100 x 0.02 g
1 x 0.0002 N
1000 x 0.2 mN
Weight: 1.0 lb [0.45 kg] |
| M5-05 |
$1,339.50
|
0.5 x 0.0001 lb
8 x 0.002 oz
250 x 0.05 g
2.5 x 0.0005 N
2500 x 0.5 mN
Weight: 1.0 lb [0.45 kg] |
| M5-2 |
$1,187.50
|
2 x 0.0005 lb
32 x 0.01 oz
1000 x 0.2 g
1 x 0.0002 kg
10 x 0.002 N
Weight: 1.0 lb [0.45 kg]> |
| M5-5 |
$1,187.50
|
5 x 0.001 lb
80 x 0.02 oz
2500 x 0.5 g
2.5 x 0.0005 kg
25 x 0.005 N
Weight: 1.0 lb [0.45 kg] |
| M5-10 |
$1,187.50
|
10 x 0.002 lb
160 x 0.05 oz
5000 x 1 g
5 x 0.001 kg
50 x 0.01 N
Weight: 1.0 lb [0.45 kg] |
| M5-20 |
$1,187.50
|
20 x 0.005 lb
320 x 0.1 oz
10000 x 2 g
10 x 0.002 kg
100 x 0.02 N
Weight: 1.0 lb [0.45 kg] |
| M5-50 |
$1,187.50
|
50 x 0.01 lb
800 x 0.2 oz
25000 x 5 g
25 x 0.005 kg
250 x 0.05 N
Weight: 1.0 lb [0.45 kg] |
| M5-100 |
$1,187.50
|
100 x 0.02 lb
1600 x 0.5 oz
50000 x 10 g
50 x 0.01 kg
500 x 0.1 N
Weight: 1.0 lb [0.45 kg] |
| M5-200 |
$1,339.50
|
200 x 0.05 lb
3200 x 1 oz
100 x 0.02 kg
1000 x 0.2 N
1 x 0.0002 kN
Weight: 1.2 lb [0.54 kg] |
| M5-300 |
$1,339.50
|
300 x 0.1 lb
4800 x 2 oz
150 x 0.05 kg
1500 x 0.5 N
1.5 x 0.0005 kN
Weight: 1.2 lb [0.54 kg] |
| M5-500 |
$1,339.50
|
500 x 0.1 lb
8000 x 2 oz
250 x 0.05 kg
2500 x 0.5 N
2.5 x 0.0005 kN
Weight: 1.2 lb [0.54 kg] |
| M5-750 |
$1,615.00
|
750 x 0.5 lb
12000 x 10 oz
375 x 0.2 kg
3750 x 2 N
3.75 x 0.002 kN
Weight: 1.2 lb [0.54 kg] |
| M5-1000 |
$1,615.00
|
1000 x 0.5 lb
16000 x 5 oz
500 x 0.2 kg
5000 x 2 N
5 x 0.002 kN
Weight: 1.8 lb [0.82 kg] |
| M5-1500 |
$1,615.00
|
1500 x 1 lb
24000 x 20 oz
750 x 0.5 kg
7500 x 5 N
7.5 x 0.005 kN
Weight: 1.8 lb [0.82 kg] |
| M5-2000 |
$1,615.00
|
2000 x 1 lb
32000 x 20 oz
1000 x 0.5 kg
10000 x 5 N
10 x 0.005 kN
Weight: 1.8 lb [0.82 kg] |
| Accuracy |
+0.1% of full scale +1 digit |
| Power |
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
All models include 110V AC adapters.
euro plug (220V) or UK plug (220V) available. |
| Battery life |
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
|
| Measurement units |
lb, oz, g, kg, N, kN, mN (depending on model) |
| Outputs |

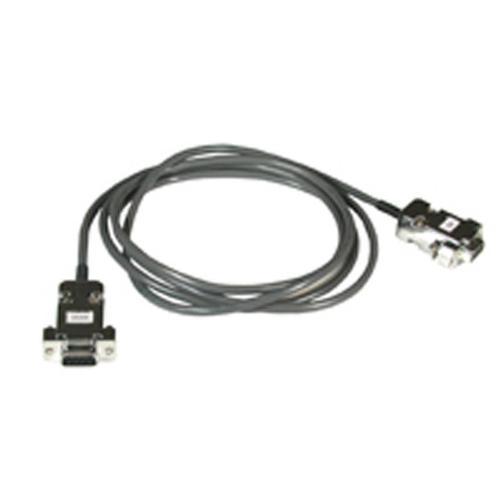

USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog: +1 VCD, +0.25% of full scale at capacity
General purpose: Three open drain outputs, one input
Set points: Three open drain lines
|
| Configurable settings |
Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration |
| Safe overload |
150% of full scale (display shows “OVLD” at 110% and above) |
| Included items |
Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide,USB cable, resource CD (USB driver, MESURgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration with data. |
| Warranty |
3 years (see individual statement for further details) |
| Model |
M5-012 |
M5-025 |
M5-05 |
M5-2 |
M5-5 |
M5-10 |
M5-20 |
M5-50 |
M5-100 |
M5-200 |
M5-300 |
M5-500 |
M5-750 |
M5-1000 |
M5-1500 |
M5-2000 |
| Included Extension Rods |
G1024 |
G1031 |
| Included Cone |
G1026 |
G1033 |
| Included Chisel |
G1025 |
G1032 |
| Included V-Groove |
G1027 |
G1034 |
| Included Flat |
G1029 |
G1036 |
| Included Hook |
G1028 |
G1038 |
G1035 |
G1042 |
- |
| Included Coupling |
- |
G1039 |
G1037 |
- |
| Thread Adapter |
- |
G1041 |
M5-012 -M5-500
M5-750,M5-2000
|
Thread |
Hex |
| M5-012 - M5-100 |
#10-32 |
5/16 |
| M5-200 - M5-500 |
5/16-18 |
11/32 |
| M-750, M5-1000, M5-2000 |
1/2-20F |
- |
