Mark-10 Bend Fixtures G1095 - G1096 - G1097


Authorized Dealer
This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.

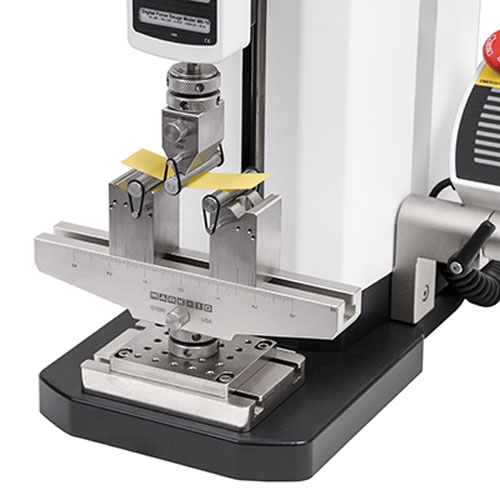

G1095 Bend Fixture
for ASTM C393, C1161, D790

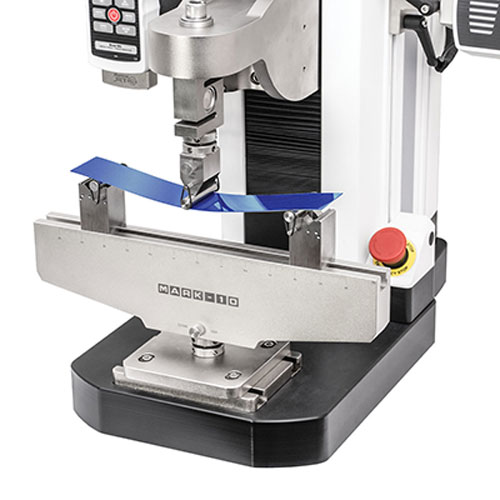

G1096 High Capacity Bend Fixture
for ASTM C393, C1161, D790

G1097 Upper Anvil for Bend Fixtures
for ASTM C393, C1161, D790
call now Specifications Chart
Mark-10 Bend Fixtures G1095 - G1096 - G1097

View Spec Cart

Model Price Capacity
lbF [kN]
Weight*
lb [kg]
Housing
material
Block
material
Roller
material
Includes
*G1095 Mark-10 G1095 Bend Fixtur
$902.50
500
[2.5]
3.0
[1.3]
2024 Al 303 SS 416 SS, hardened Screws for test stand mounting, two 10 mm dia.
rollers and o-rings
*G1096 Mark-10 G1096 High Capaci
$1,235.00
2,000
[10]
7.1
[3.2]
2024 Al 303 SS 416 SS, hardened Screws for test stand mounting, two 10 mm dia.
rollers and o-rings
G1097 Mark-10 G1097 Upper Anvil
$171.00
2,000
[10]
0.5
[0.2]
303 SS -- 416 SS, hardened 10 mm. dia. roller and o-rings

*Including two blocks and 10 mm dia. rollers

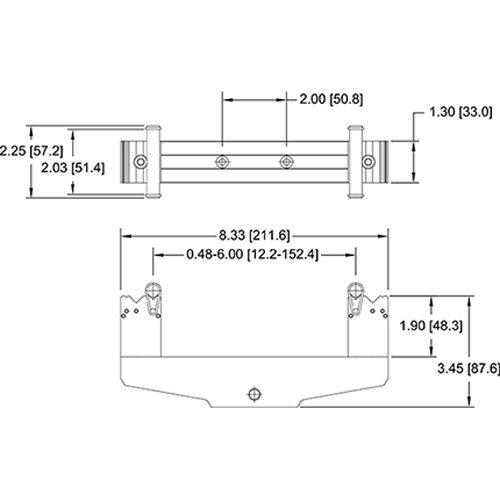

Mark-10 G1095 Bend Fixture for ASTM C393, C1161, D790

Mark-10 Bend Fixtures G1095


This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.

Bases feature movable blocks with multiple V-grooves to accept several roller diameters. 10 mm dia. rollers are included, and other sizes are available.

The bases feature engraved rulers, dual-graduated with an inch scale on one side and mm scale on the other. Integrated eye end receptacles facilitate mounting to load cells, force gauges, and test stands. The bases also include thru-holes and mounting screws for direct mounting to certain test stands.

FEATURES
  • Designed for 3-point and 4-point bend testing
  • Accommodate a broad sample size range
  • Rugged design
  • Dual graduated rulers - in and mm
  • Compatible with the following test stands: ESM303, ESM1500, TSFM500-DC, ES30, TSA750 (with optional loading table), TSC1000, TSF. Recommended for use with a motorized test stand.
  • May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).

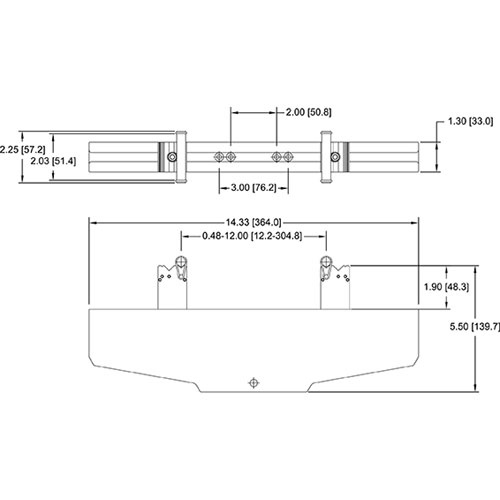

Mark-10 G1096 High Capacity Bend Fixture for ASTM C393, C1161, D790

Mark-10 Bend Fixtures G1096


This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.

Bases feature movable blocks with multiple V-grooves to accept several roller diameters. 10 mm dia. rollers are included, and other sizes are available.

The bases feature engraved rulers, dual-graduated with an inch scale on one side and mm scale on the other. Integrated eye end receptacles facilitate mounting to load cells, force gauges, and test stands. The bases also include thru-holes and mounting screws for direct mounting to certain test stands.

FEATURES
  • Designed for 3-point and 4-point bend testing
  • Accommodate a broad sample size range
  • Rugged design
  • Dual graduated rulers - in and mm
  • Compatible with the following test stands: ESM303, ESM1500, TSFM500-DC, ES30, TSA750 (with optional loading table), TSC1000, TSF. Recommended for use with a motorized test stand.
  • May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).

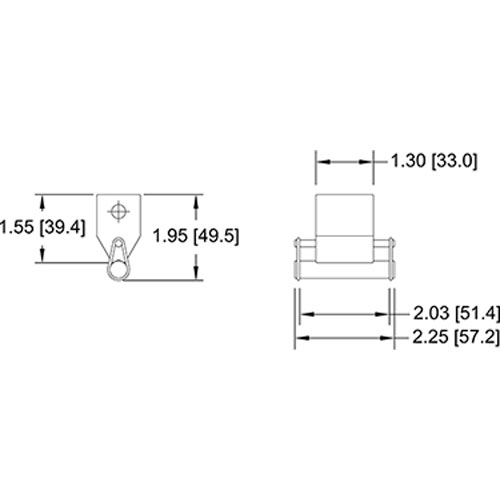

Mark-10 G1097 Upper Anvil for Bend Fixtures for ASTM C393, C1161, D790

Mark-10 Bend Fixtures G1097


This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.

Bases feature movable blocks with multiple V-grooves to accept several roller diameters. 10 mm dia. rollers are included, and other sizes are available.

The bases feature engraved rulers, dual-graduated with an inch scale on one side and mm scale on the other. Integrated eye end receptacles facilitate mounting to load cells, force gauges, and test stands. The bases also include thru-holes and mounting screws for direct mounting to certain test stands.

FEATURES
  • Designed for 3-point and 4-point bend testing
  • Accommodate a broad sample size range
  • Rugged design
  • Dual graduated rulers - in and mm
  • Compatible with the following test stands: ESM303, ESM1500, TSFM500-DC, ES30, TSA750 (with optional loading table), TSC1000, TSF. Recommended for use with a motorized test stand.
  • May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).

Mark-10 G1071 TAPPI T829 Score Bend Fixture

Mark-10 G1071 TAPPI T829
Score Bend Fixture

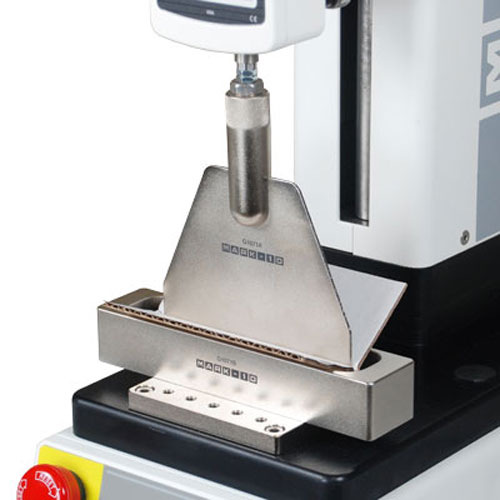

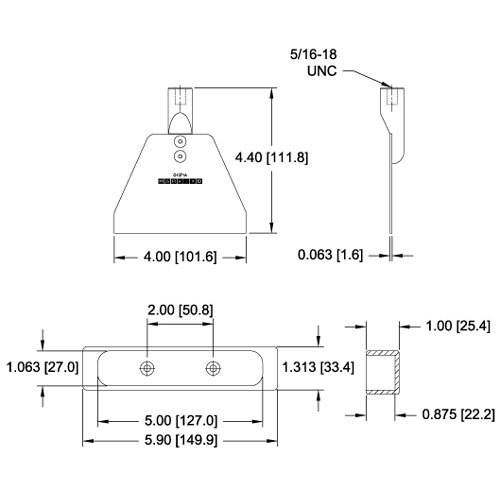

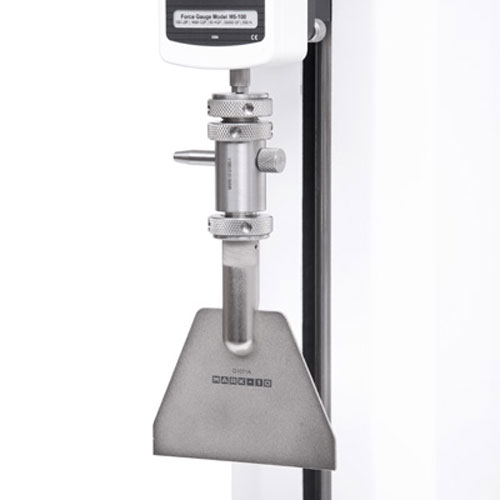

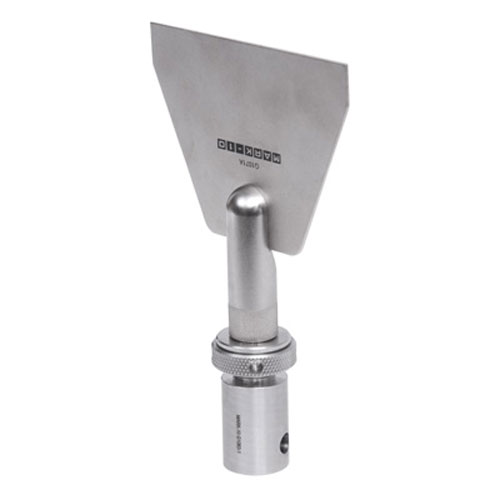

This set of fixtures is used to produce a 90o bend in fiber board materials and plastics. The fixtures are compliant to TAPPI standard T829 for evaluating the relative quality of scores in corrugated containers.

Upper and lower fixtures are easily removable.

Use this fixture with a choice of test stand and force gauge to create a complete score bend testing system.

Note: These fixtures are designed for compatibility with a Mark-10 force gauge and test stand. The resulting value displayed on the force gauge will be a force value. The abstract score ratio as called for in T829 is not automatically calculated.

FEATURES
  • Set of upper and lower dies produce 90 degree bend in corrugated board and plastics
  • Meets the requirements of TAPPI T829
  • Fixtures are easily removable
  • Maximum force: 50 lbF (250 N)
  • Mounts directly to the following test stands: ESM, ESM303, ES30, TSC1000, TSF, TSFM500, ES10/ES20 (when ordered with optional AC1060 mounting plate). A motorized test stand is required to fufill the test speed requirement of TAPPI T829.

Mark-10 G1072 Opening Force Fixture Set

Mark-10 G1072
Opening Force Fixture Set

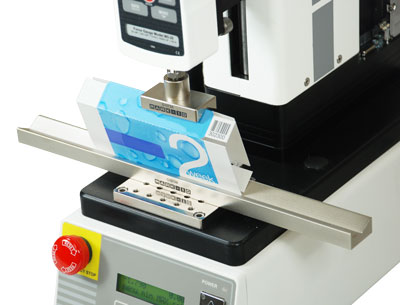

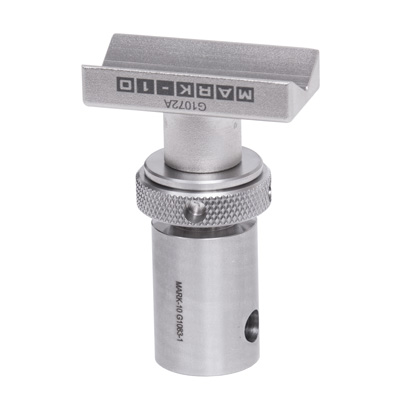

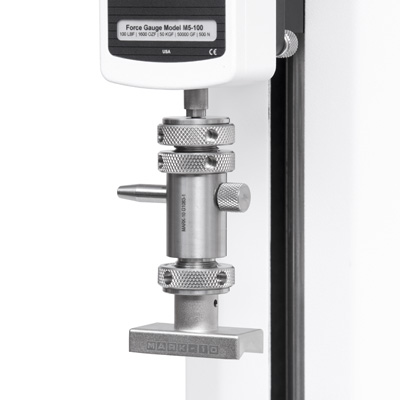

Used to determine the opening force of flat folded cartons along their score lines. Ideal for numerous applications in the packaging, food and beverage, medical device, consumer products, and many other industries.

Upper and lower fixtures are easily removable.

Use this fixture with a choice of test stand and force gauge to create a complete score bend testing system.

FEATURES
  • Set of upper lower dies provided to accommodate various sized packaging materials
  • Fixtures are easily removable
  • Maximum force: 50 lbF (250 N)
  • Mounts directly to the following test stands: ESM, ESM303, ES30, TSC1000, TSF, TSFM500, ES10/ES20 (when ordered with optional AC1060 mounting plate). A motorized test stand is recommended.
  • Upper die includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.
  • Lower die includes mounting hardware for above listed test stands.

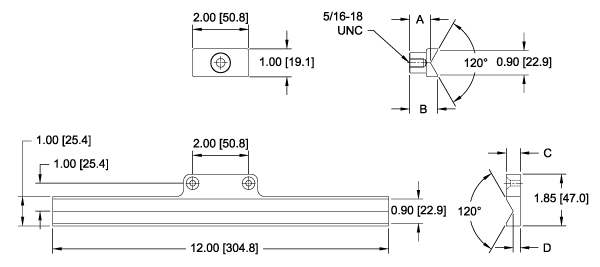

A: 0.75 [19.1] B: 1.00 [25.4] C: 0.50 [12.7] D: 0.25 [6.4]
