| Mark-10 ES30 Hand Wheel Manual Test Stand |  Authorized Dealer |
| The Mark-10 ES30 Force Measurement Test Stand is a versatile and economical solution for most compression and tensile testing applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lb of force. Use the ES30 test stand with any Mark-10 force gauge and grips to create a complete testing solution | |
| Force Measurement >> Torque Measurement >> Mark-10 | |
|
The Mark-10 ES30 Force Measurement Test Stand is a versatile and economical solution for most compression and tensile testing applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lb of force. Use the ES30 test stand with any Mark-10 force gauge and grips to create a complete testing solution
Features / Specifications:
- Maximum force: 200 lb [1 kN]
- Compatible with all Mark-10 force gauges, accessories and grips
- Maximum travel: 13" [330 mm]
- Travel rate: 0.05" [1.37 mm]/hand wheel revolution
- Mounting holes for bench mounting
- Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
- The ES30 is supplied with a small hook, medium hook, and 2" diameter compression plate
Optional Equipment
- A wide range of force gauges and gripping fixtures
- Digital travel display (shown right) - 6" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.001" [0.03 mm] accuracy, SPC output for automated data collection
- Column extensions - Available in 6", 12", and 24", and custom lengths
| Model | Capacity x resolution | Price | |
|---|---|---|---|
| ES30 | Test stand, hand wheel operated, 200 lb | $997.50 |
 |
| ESM001 | Digital travel display, 6" x 0.0005 (150 mm x 0.01) | $807.50 |
|
| ESM003-1 | 6" Column extension for ESM/ES30 | $161.50 |
|
| ESM003-2 | 12" Column extension for ESM/ES30 | $190.00 |
|
| ESM003-3 | 24" Column extension for ESM/ES30 | $218.50 |
|

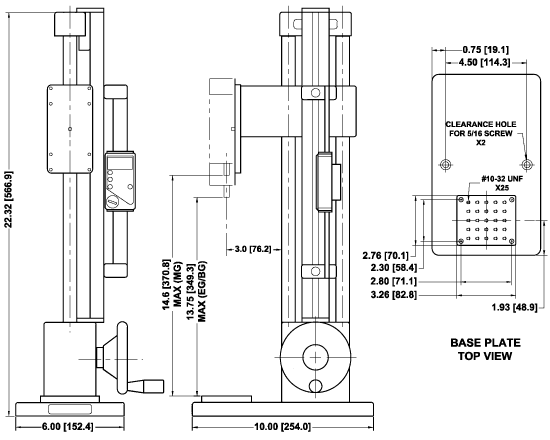

Dimensions:
