Mark-10 Series-E - Ergonomic Force Gauges	Authorized Dealer

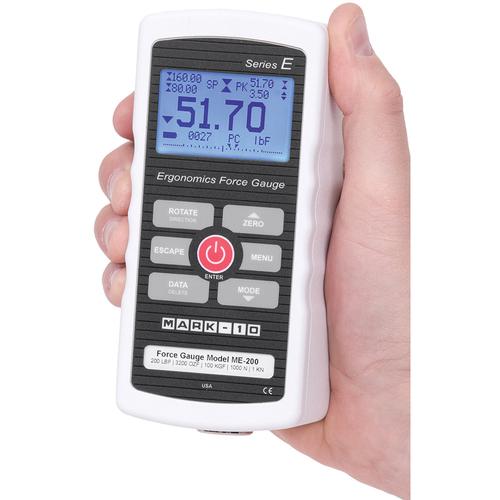

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications.
Force Measurement >> Mark-10 >> Ergonomics Testing

E Series Including USB cable, Carrying case

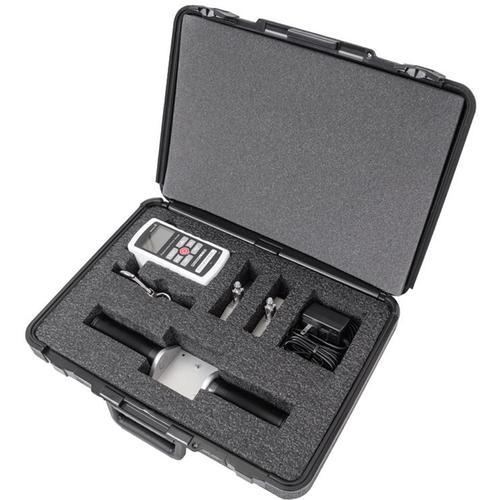

Basic Ergonomics Kit - Including Force gauge, E1003, E1004, E1006, E1009, E1000

Basic Ergonomics Kit - Including E Series Force gauge, E1003, E1004, E1006, E1009, E1000

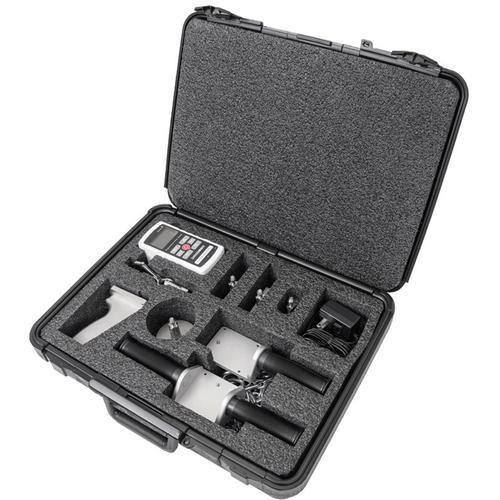

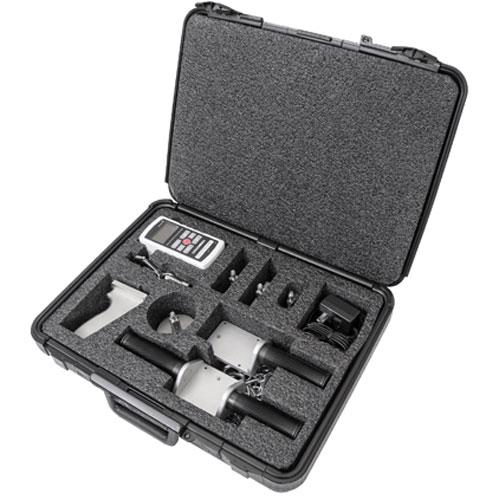

Professional Ergonomics Kit - Including E Series Force gauge, E1002, E1003, E1004, E1005, E1006, E1007, E1008, E1009, E1010, E1001

View Specifications Chart

View Attachments

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Sample 2

Measure real time and peak push and pull forces

Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
Accuracy: +0.2% of full scale
Sampling rate: 7,000 Hz
USB data output
High / low limit indicators, for pass / fail and minimum force testing
Averaging mode calculates average force over a period of time
5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESURTM Lite data collection software.
Statistical calculations for saved data points
Includes an AC adapter/charger, rechargeable battery, MESURTM Lite software, MESURTMgauge 90-day trial, USB cable, USB driver, carrying case, and NIST-traceable certificate of calibration with data

Attachments click and lock into place via innovative Click-LockTM technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90^o or 180^o orientations. No fastening is required, as with conventional force gauges, reducing the risk of damage to the instrument.

	Force Gauge			Basic Ergonomics Kit			Professional Ergonomics Kit
Model	ME-100	ME-200	ME-500	EKE-100-1	EKE-200-1	EKE-500-1	EKE-100-2	EKE-200-2	EKE-500-2
Price	$1,064.00	$1,064.00	$1,064.00	$1,491.50	$1,491.50	$1,491.50	$2,023.50	$2,023.50	$2,023.50
Capacity X Readability	100 x 0.05 lbF	200 x 0.05 lbF	500 x 0.1 lbF	100 x 0.05 lbF	200 x 0.05 lbF	500 x 0.1 lbF	100 x 0.05 lbF	200 x 0.05 lbF	500 x 0.1 lbF
	1600 x 1 ozF	3200 x 1 ozF	8000 x 2 ozF	1600 x 1 ozF	3200 x 1 ozF	8000 x 2 ozF	1600 x 1 ozF	3200 x 1 ozF	8000 x 2 ozF
	50 x 0.02 kgF	100 x 0.02 kgF	250 x 0.05 kgF	50 x 0.02 kgF	100 x 0.02 kgF	250 x 0.05 kgF	50 x 0.02 kgF	100 x 0.02 kgF	250 x 0.05 kgF
	50000 x 20 gF	-	-	50000 x 20 gF	-	-	50000 x 20 gF	-	-
	500 x 0.2 N	1000 x 0.2 N	2500 x 0.5 N	500 x 0.2 N	1000 x 0.2 N	2500 x 0.5 N	500 x 0.2 N	1000 x 0.2 N	2500 x 0.5 N
	-	1 x 0.0002 kN	2.5 x 0.0005 kN	-	1 x 0.0002 kN	2.5 x 0.0005 kN	-	1 x 0.0002 kN	2.5 x 0.0005 kN
Accuracy	+0.2%
Sampling rate	7,000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Output	USB - Configurable up to 115,200 baud.
Measurement units	lbF, ozF, gF, kgF, N, kN (depending on model, see below)
Safe overload	200% of full scale (display shows “OVER” at 110% and above)
Data Memory Points	5,000
Includes	AC adapter/charger, rechargeable battery, MESURTM Lite software, MESURTMgauge 90-day trial, USB cable, USB driver, carrying case, and NIST-traceable certificate of calibration with data			Force gauge, AC adapter, Padded attachment rectangular (E1003), Padded attachment curved (E1004), Clasp hook (E1006), Double handle grip (E1009) and Carrying case, small (E1000)			Force gauge, AC adapter, Padded attachment square(E1002), Padded attachment rectangular (E1003), Padded attachment, curved (E1004), Padded attachment circular(E1005), Clasp hook(E1006), Chain / clasp hook assembly(E1007), Single handle grip(E1008), Double handle grip(E1009), Pistol grip(E1010), Carrying case, large(E1001)
Warranty	3 years

Attachments

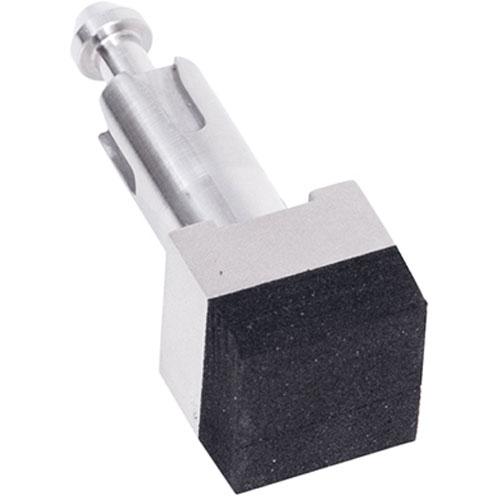

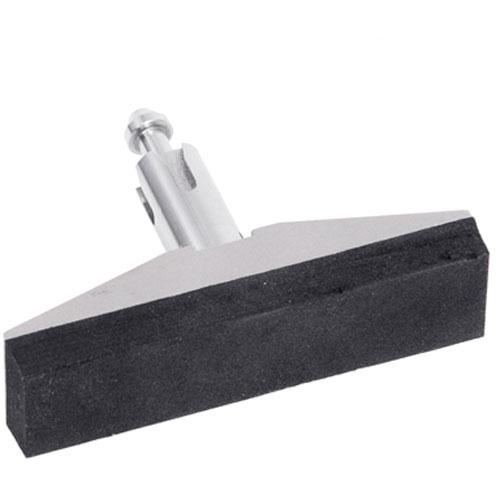

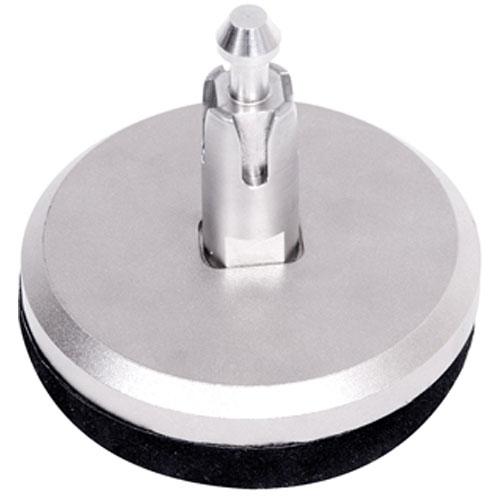

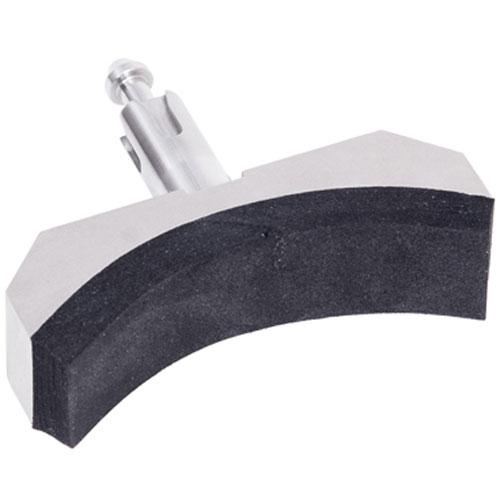

$80.75 E1002 Square Padded Attachment	$90.25 E1003 Rectangular Padded Attachment	$99.75 E1004 Curved Padded Attachment	$128.25 E1005 Circular Padded Attachment

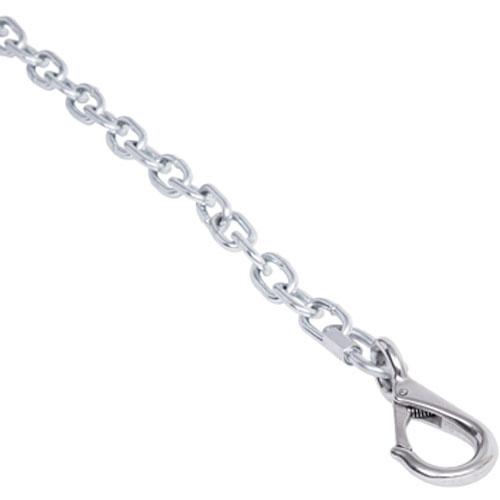

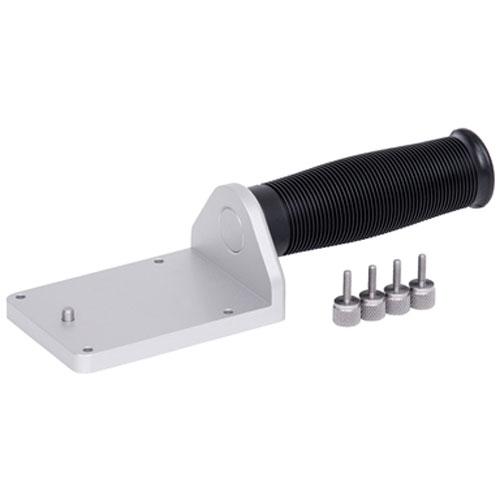

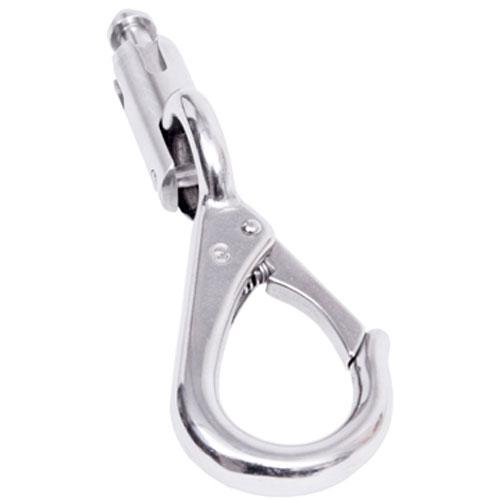

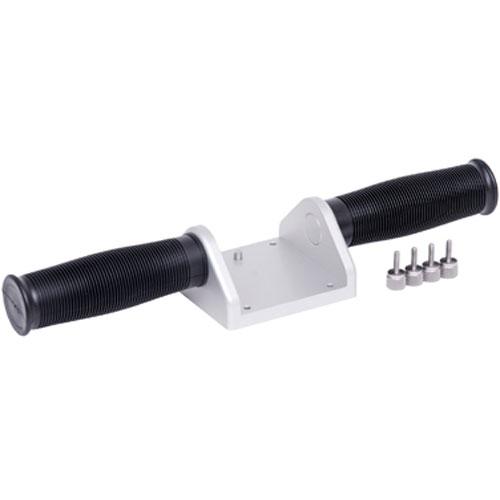

$118.75 E1006 Snap Clasp Hook	$104.50 E1007 Chain / Hook Assembly	$104.50 E1008 Single Handle Grip	$161.50 E1009 Double Handle Grip

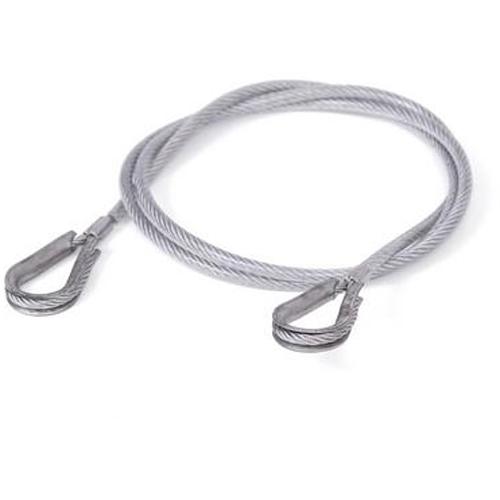

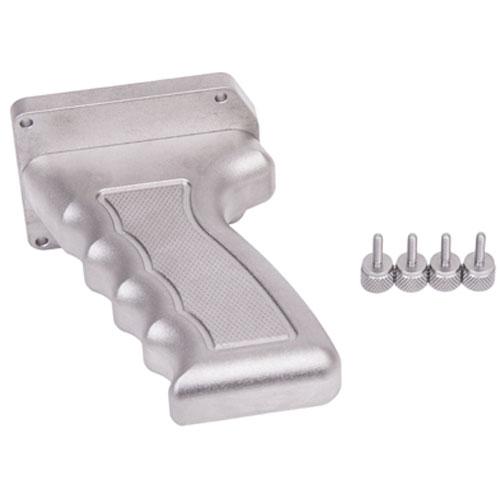

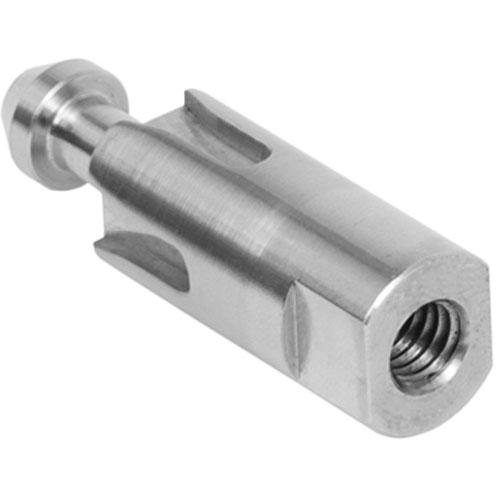

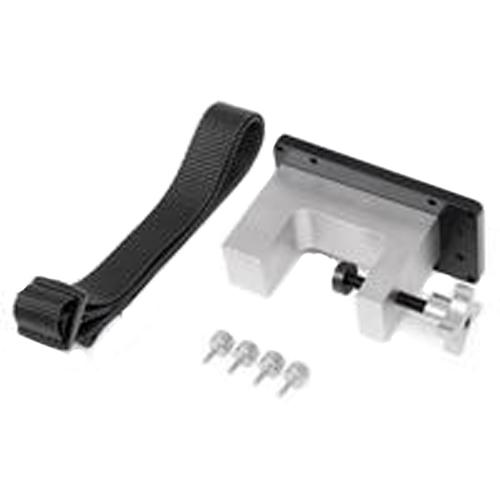

$270.75 E1010 Pistol Grip	$52.25 E1011 Standard Grip Adapter	$47.50 E1012 Looped cable (Does not fit into carrying cases)	$294.50 E1013 Myometer kit (Does not fit into carrying cases. Requires E1006 hook.)
