Mark-10 TSC1000/ TSC1000H Handwheel Operated Manual Test Stands |
 Authorized Dealer |
| The Mark-10 TSC Force Measurement Test Stand is ruggedly built for testing up to 1,000 lb of compression or tension force.A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations. | |
| Force Measurement >> Torque Measurement >> Mark-10 | |

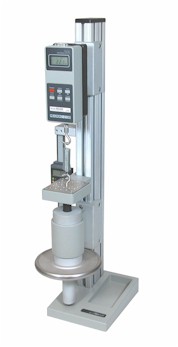

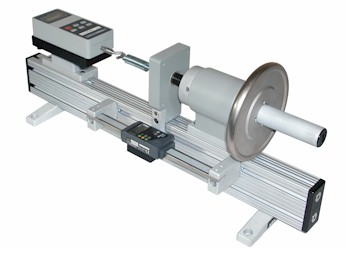

 TSC1000 above  TSC1000H above |
The Mark-10 TSC Force Measurement Test Stand is ruggedly built for testing up to 1,000 lb of compression or tension force.A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.
Features / Specifications:
- Maximum force: 1000 lb [5 kN]
- Maximum travel: 3.5" [89 mm]
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting
- Loading table with 25 #10-32 UNF holes for fixture mounting
- Precision Acme screw and nut
- Optional digital travel display
- The TSC1000 / TSC1000H test stand is supplied with a tool kit, medium hook, large hook, and a 2" diameter compression plate.
Optional Equipment
- A wide range of force gauges and gripping fixtures
- Digital travel display (shown right) - 6" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.001" [0.03 mm] accuracy, SPC output for automated data collection.
- Horizontal / wall mounting kit - Set of mounting legs that attach to the test stand column in place of the base
- Custom modifications - Special modifications are available, including custom-designed fixtures, increased column length, and more.
| Model | Capacity x resolution | Price |
|---|---|---|
| TSC1000 | Test stand, hand wheel-operated, 1,000 lb, vertical | $1558.00 |
| TSC1000H | Test stand, hand wheel-operated, 1,000 lb, horizontal | $1558.00 |
| TSC001 | Digital travel display for TSC/TSCH | $741.00 |
| TSA002 | Horizontal/wall mount kit for TSA/TSC | $171.00 |
| AC1004 | Mounting kit, BGI to TS-Series test stands | $95.00 |
Dimensions:

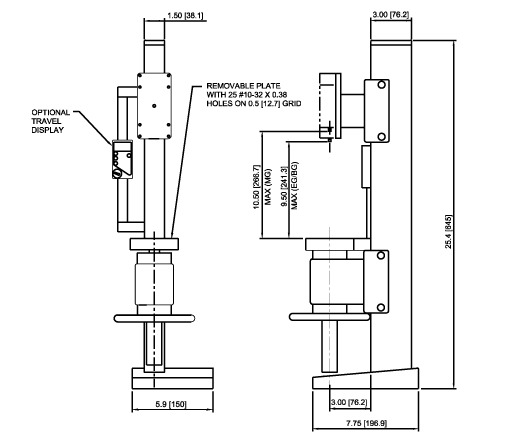

TSC1000:

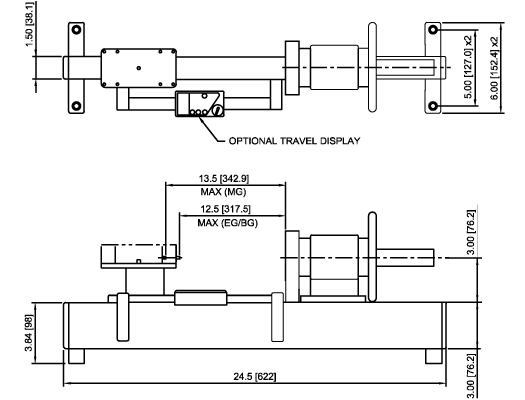

TSC1000H:
