| The Mark-10 ESM Motorized Force Measurement Test Stand is a versatile and precise testing solution for most compression and tensile testing applications up to 200 lb. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design.Speed is adjustable in up and down directions and a remote control unit provides added safety during testing | |
| Force Measurement >> Torque Measurement >> Mark-10 | |
|

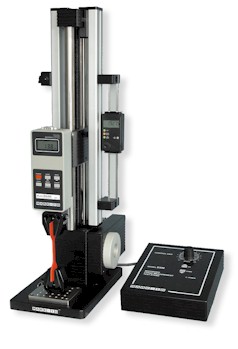

The Mark-10 ESM Motorized Force Measurement Test Stand is a versatile and precise testing solution for most compression and tensile testing applications up to 200 lb. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design.Speed is adjustable in up and down directions and a remote control unit provides added safety during testing. Other features include a manual fine adjustment knob and a stepper motor that prevents speed variation with load, making testing precise and repeatable. Use this test stand with any Mark-10 force gauge and grips to create a complete testing solution.
Features / Specifications:
- Maximum force: 200 lb [1kN]
- Maximum travel: 13" [330 mm]
- Speed range: 0.5-13 in/min [13-330 mm/min]
- Speed accuracy: ±5% of setting, ±0% variation with load
- Remote control console with a 3' [1 M] cable
- Universal power supply: 80-250 VAC
- Manual travel knob
- Mounting holes for bench mounting
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
- Base may be removed for alternative mounting
- Compatible with Series 5 and Series 4 force gauges. Can be used simultaneously with the USB data output cable supplied with the gauge.
The Mark 10 ESM motorized test stand is supplied with a small hook, medium hook, 2" diameter compression plate, extension rod, and #10-32 coupler
Optional Equipment
- A wide range of force gauges and gripping fixtures
- Digital travel display - 6" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.001" [0.03 mm] accuracy, SPC output for automated data collection
- Limit switch kit - Set of upper and lower adjustable solid state limit switches. Repeatable to within 0.001" [0.03 mm].
- Overload protection module - Protects the force gauge against accidental overloads during motorized tests. Adjustable from 20 - 110% of gauge's capacity. Compatible with all Mark-10 force gauges with outputs.
- Set point cable - Stops test stand travel at programmable high and low set points for tension and compression forces, programmed on a compatible force gauge.
- Column extensions - Available in 6", 12", 24", and custom lengths
- Custom speed ranges - Speeds can be modified to as slow as 0.02 in/min [0.5 mm/min] or as fast as 45 in/min [1143 mm/min]. Note that in some cases, the maximum force will be affected. Contact us at 800-832-0055 for details
| Model | Capacity x resolution | Price | |
|---|---|---|---|
| ESM | Motorized Test STand, 200 lb, 110V | $2075.75 |
 |
| ESM001 | Digital travel display, 6 in x 0.0005 in (150 x 0.01 mm) | $845.50 |
|
| ESM003-1 | 6 inch column extension for ESM / ES30 | $171.00 |
|
| ESM003-2 | 12 inch column extension for ESM / ES30 | $199.50 |
|
| ESM003-3 | 24 inch column extension for ESM / ES30 | $228.00 |
|
 Limit switch kit Set of upper and lower adjustable solid state limit switches. Repeatable to within 0.001" [0.03 mm]. |
 Digital travel display 6" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.001" [0.03 mm] accuracy, SPC output for automated data collection |

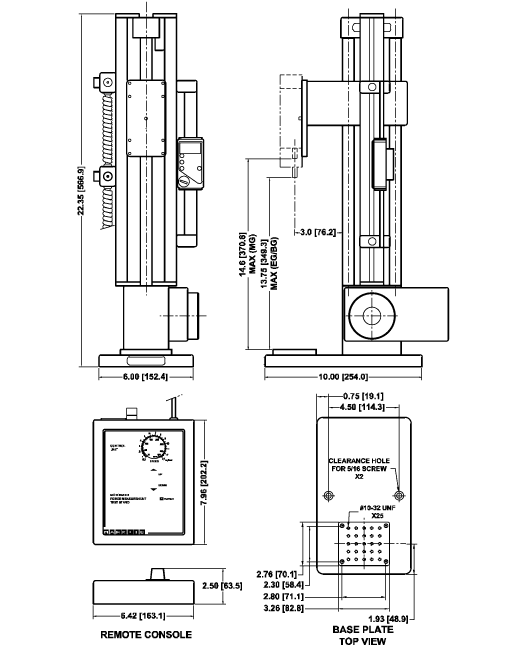

Dimensions:
