Mark-10 Series-F Advanced Test Frames
Authorized Dealer
Series F Tension / Compression Test Frames are engineered for force testing applications up to 1,500 lbF (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures. .
Mark 10 Series-F

View Spec Cart

View Grips

FS05 Series Force Sensors

R07 Series Force Sensors

Have Questions?
Call USoremail Us
Our Staff will be glad to help
Series F Tension / Compression Test Frames are engineered for force testing applications up to 1,500 lbF (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.

Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device

Virtually limitless applications

From food packaging to electronics, from consumer products to aerospace manufacturing, Mark-10 force test frames are at home in laboratory and production environments in virtually every industry worldwide.
Peel testing, Wire tensile testing, Compression spring testing, 90° peel testing, Score bend testing, Tension spring testing and more

Rigid and precise mechanical design Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ±0.002 in / 0.05 mm under any load, at any position.
Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.

Seamless force sensor interface Series FS05 smart force sensors mount directly to the crosshead of models F105, F305, F505, and F505H, without any connection cables. Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN]. Accurate to ±0.1% of full scale.
Series R07 S-beam type force sensors accommodate higher force ranges, also compatible with Plug & Test® technology. Ranges available from 50 to 1,500 lbF [250 N to 7.5 kN]. Accurate to ±0.15% of full scale.

Modular design Frame bases can be removed to accommodate column extensions and alternative mounting configurations. Most electronics are housed in a self-contained enclosure, easily accessed and replaced if needed. Integrated T-slots along the column accommodate add-ons, such as a USB hub.

External limit switches Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.

An integrated motion control and data collection solution

IntelliMESUR® software is an integrated solution running on Windows tablets and PCs. Select a pre-loaded 10.1? tablet with mounting bracket or use your own Windows device. With IntelliMESUR®, you can create and run a wide range of basic and multi-step tests, including:
  • Limit testing to a load, break, or distance
  • Height measurement
  • Load holding
  • Cycle testing
  • Multi-step testing, utilizing any combination of motion control and data collection functions

Perform individual runs or batches, and view data in graphical format or results tables. Save or export data as needed, or generate a report

Ready. Set. Go. From IntelliMESUR®?s home screen, quickly access up to 10 favorite tests. Associate an image with each favorite for easy identification.

What?s your point of view? Run a test via the Graph or Results views, and switch views as needed. Pass / Fail indicator easily identifies problematic samples. Individual runs may be invalidated if, for example, the sample slips out of the grips, or the test was interrupted.

Graph view The Graph view plots force vs. distance or force vs. time. Overlay up to 10 runs for visual comparisons.

Results view The Results view displays user-selected results for each run. Statistics may be applied to selected results.

Test setup is easy as 1-2-3

Basic tests Select a test type, and IntelliMESUR® will guide you through the setup
Load Limit, Distance Limit, Break Limit, Load Hold, Cycle

    1. Pre-Test Settings
  • Units of measurement
  • Batch size
  • Display preferences
  • Preload
  • Operator prompts
    2. Test Settings
  • Test objective
  • Speed
  • Pass / fail limits
  • Exception limits
    3. Results & Statistics Selection
  • Final load
  • Maximum load
  • Minimum load
  • Load at max. distance
  • Load at min. distance
  • Load at break
  • Average load
  • Delta load
  • Maximum distance
  • Final distance
  • Minimum distance
  • Height
  • Distance at max. load
  • Distance at min. load
  • Distance at break
  • Delta distance
  • Area under the curve
Mark-10 ESM1500 \ ESM750 Motorized Test Stands

Price From: $7,315.00

FS05 Force Sensors

FS05-012
0.12 x 0.00002 lb

add $1116.25
FS05-025
0.25 x 0.0001 lb

add $1116.25
FS05-05
0.5 x 0.0002 lb

add $1116.25
FS05-2
2 x 0.001 lb

add $969.00
FS05-5
2 x 0.001 lb

add $969.00
FS05-10
10 x 0.005 lb

add $969.00
FS05-20
20 x 0.01 lb

add $902.50
FS05-50
50 x 0.02 Lb

add $969.00
FS05-100
100 x 0.05 Lb

add $969.00
FS05-200
200 x 0.1 Lb

add $1116.25
FS05-300
300 x 0.2 Lb

add $1116.25
FS05-500
500 x 0.2 Lb

add $1116.25

R07 Force Sensors

MR07-50
50 x 0.02 lb

add $655.50
MR07-100
100 x 0.05 lb

add $655.50
MR07-200
200 x 0.1 lb

add $655.50
MR07-300
300 x 0.2 lb

add $655.50
MR07-500
500 x 0.2 lb

add $612.75
MR07-750
750 x 0.5 lb

add $655.50
MR07-1000
1000 x 0.5

add $655.50
MR07-1500
1500 x 1

add $655.50
Mark-10 CERT-DS NIST-traceable certificate of calibration w/data, Series F test frames, distance & speed
Mark-10 CERT-DS NIST-traceable certificate of calibration w/data, Series F test frames, distance & speed, add $375.25
Mark-10 AC1094-1 Single column extension, 6 inch / 150 mm, F105 / F305 / F505 / F505H (old part number: ESM301-001-1)
Mark-10 AC1094-1 Single column extension, 6 inch / 150 mm, F105 / F305 / F505 / F505H (old part number: ESM301-001-1), add $403.75
Mark-10 AC1094-2 Single column extension, 12 inch / 300 mm, F105 / F305 / F505 / F505H (old part number: ESM301-001-2)
Mark-10 AC1094-2 Single column extension, 12 inch / 300 mm, F105 / F305 / F505 / F505H (old part number: ESM301-001-2), add $560.50
Mark-10 AC1094-3 Single column extension, 24 inch / 600 mm, F105 / F305 / F505 / F505H (old part number: ESM301-001-3)
Mark-10 AC1094-3 Single column extension, 24 inch / 600 mm, F105 / F305 / F505 / F505H (old part number: ESM301-001-3), add $707.75
Mark-10  AC1095-1 Double column extension, 6 inch / 150 mm, F105 / F305 / F505 (replaces ESM303-002-1)
Mark-10 AC1095-1 Double column extension, 6 inch / 150 mm, F105 / F305 / F505 (replaces ESM303-002-1), add $1,776.50
Mark-10  AC1095-2 Double column extension, 12 inch / 300 mm, F105 / F305 / F505 (replaces ESM303-002-2)
Mark-10 AC1095-2 Double column extension, 12 inch / 300 mm, F105 / F305 / F505 (replaces ESM303-002-2), add $2,033.00
Mark-10  AC1095-3 Double column extension, 24 inch / 600 mm, F105 / F305 / F505 (replaces ESM303-002-3)
Mark-10 AC1095-3 Double column extension, 24 inch / 600 mm, F105 / F305 / F505 (replaces ESM303-002-3), add $2,280.00
Mark-10  AC1086 Safety shield for F105 / F305 / F505
Mark-10 AC1086 Safety shield for F105 / F305 / F505 , add $2,185.00
Mark-10 AC1092-1 Safety shield for F755S / F1505S
Mark-10 AC1092-1 Safety shield for F755S / F1505S, add $3,515.00
Mark-10 AC1092-2 Safety shield for F755 / F1505
Mark-10 AC1092-2 Safety shield for F755 / F1505, add $2,593.50
Mark-10 AC1093 USB hub
Mark-10 AC1093 USB hub, add $256.50
Mark-10 AC1083 Adapter, FS05 sensor / PTAF adapter to Plug & Test® connector, 10 in / 250 mm cable
Mark-10 AC1083 Adapter, FS05 sensor / PTAF adapter to Plug & Test® connector, 10 in / 250 mm cable, add $356.25
Mark-10 AC1084  Extension cable, 48 in / 1,220 mm, Plug & Test®, male/female
Mark-10 AC1084 Extension cable, 48 in / 1,220 mm, Plug & Test®, male/female, add $356.25
Mark-10 PTAF Plug & Test® user-configurable adapter for F105 / F305 / F505 / F505H test frames, with software
Mark-10 PTAF Plug & Test® user-configurable adapter for F105 / F305 / F505 / F505H test frames, with software, add $403.75
Mark-10 DC5000 Spare tablet control panel, Series F, pre-installed w/IntelliMESUR®, w/test frame mounting hardware
Mark-10 DC5000 Spare tablet control panel, Series F, pre-installed w/IntelliMESUR®, w/test frame mounting hardware, add $6,650.00
Mark-10 15-1019  IntelliMESUR® software, customer installation on a Windows device, additional seat
Mark-10 15-1019 IntelliMESUR® software, customer installation on a Windows device, additional seat, add $5,795.00

View Spec Cart

Multi-step tests Building upon basic test wizards, easily incorporate any combination of steps, with the ability to loop a sequence of steps. Select from:

  • Move to load
  • Move to distance
  • Move to break
  • Hold a load or position
  • Loop / cycle
  • Datum
  • Prompts
  • Save current load or position
  • Zero load or position
  • Return to Home position

Operator prompting
Prompts can appear at the beginning of each test, batch, or run.
Ask prompts ask the operator for information which is saved in the results table - for example, a lot number. Type the response or use a barcode scanner. Tell prompts provide instructions to the operator, and can include an image.

Take your measurements to new heights
Use Height Mode to determine height at a specific load, commonly used in spring testing. A datum may be set to define the reference point.

Deflection compensation
Series F test frames and force sensors are deflection-compensated at the factory, resulting in system distance measurement accuracy of ±0.002 in / 0.05 mm at any load and at any position along the frame. To further compensate grips and attachments, use IntelliMESUR®?s deflection compensation utility. The deflection offset file can be associated with the test setup file.

Robust data acquisition and management

Blazingly fast
Force sensor sampling rate of 20,000 Hz yields accurate peak measurements even in quick-duration events. IntelliMESUR® collects load and travel data at up to 1,000 Hz, and allows up to 1 million data points per run.

Customizable reporting
Print or create a PDF report, including results, statistics, graph, system and user information, and comments. Personalize the report with your company logo and an additional image. Create report templates to save with future reports.

Save or export data
Automatically or manually save individual runs and results to a USB drive or file location of your choice. File names are automatically generated with the test name and time stamp, for quick searchability. Results sets and data from individual runs may also be exported as .csv files.

Secure user access Control user access with three permissions levels:
  • Administrators have full access.
  • Supervisors can create a test, run reports, calibrate force sensors, and change settings.
  • Operators may recall and run a test, but cannot create a test or perform more advanced functions.

Intelligent manual control
Manually control the test frame to obtain quick force and distance results, or manually position the crosshead prior to a test. Select from several actuation methods, including momentary (button-hold), maintained (button release) motion, jog mode with three distance presets.

With Mark-10?s innovative FollowMe® function, push and pull on the force sensor to move the crosshead. Apply greater force to achieve faster motion. FollowMe® is responsive enough for quick positioning as well as fine adjustments.

The Height / Length Offset utility in Manual Control defines a reference point to accommodate applications in which grips cannot directly touch one another.

Uniquely serviceable

Calibrate force sensors on the test frame or off-site

Calibrate Series FS05 and R07 force sensors in one of two ways:

Test frame IntelliMESUR® provides an integrated utility, with an intuitive step-by-step wizard. Manual controls allow the technician to use the test frame to apply tension and compression forces.

Off-site Conveniently remove the force sensors for off-site calibration with a Mark-10 Model M7I or M5I indicator

Field-upgradeable Test frame firmware and IntelliMESUR® software can be updated in the field via a simple user interface. No need to schedule a service call or to ship hardware to the factory.

Easy-to-service electronics Most electronics are housed in an integrated module, easily replaced without special tools or processes.

In The Box

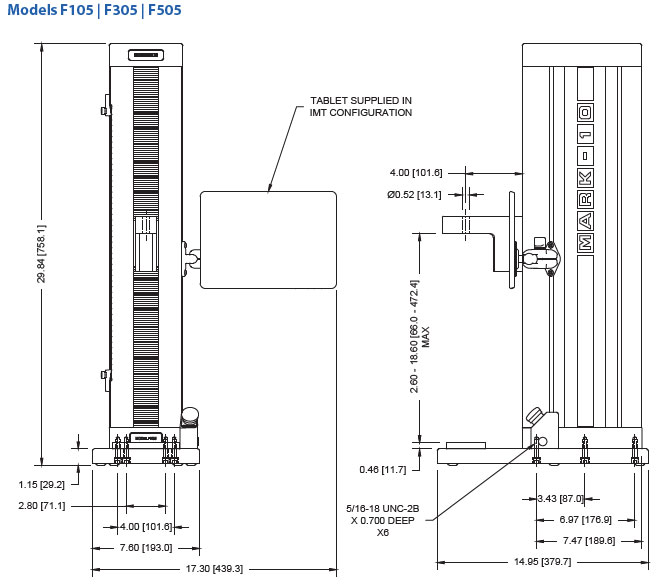

F105 / F305 / F505 / F505H
  • Control panel, mounting bracket, and hardware (-IMT models only)
  • Mounting bracket, column end (F505H only)
  • USB flash drive containing software installation files (-IM models only)
  • USB dongle (-IM models only)
  • USB cable
  • #10-32M medium hook
  • 5/16-18M large hook
  • #10-32F 2?h diameter compression plate
  • #10-32 M/F 2?h extension rod
  • #10-32 F/F coupler
  • Adapter, 5/16-18M to #10-32F
  • Set screw, #10-32 x 3/4?h
  • Hex nut, #10-32 (2)
  • Power cord
  • Allen wrench set
  • NIST-traceable certificate of calibration, force
F755 / F755S / F1505 / F1505S
  • Control panel, mounting bracket, and hardware (-IMT models only)
  • USB flash drive containing software installation files (-IM models only)
  • USB dongle (-IM models only)
  • USB cable
  • Eye end kit for base
  • Lock ring for eye end (2)
  • Spanner wrench (2)
  • Power cord
  • Allen wrench set
  • NIST-traceable certificate of calibration, force
  • Column Extensions for Models F105 / F305 / F505 / F505H Select from single- and double-column extensions for oversized samples. Three heights are available - 6, 12 and 24 in [150, 300, and 600 mm]. Double-column extensions accommodate up to a 20 in. [508 mm] wide sample, or ø21.5 in [ø546 mm] round sample. Base contains rows of T-slots for fixture mounting. Double column extensions not available for F505H.
  • Certificate of Calibration - Distance & Speed (CERT-DS) NIST-traceable certificate of calibration for test frame distance measurement and speed.
  • Safety Shield for Models F105 / F305 / F505 (AC1086) Provides pinch and sample debris protection for the operator. The shield rotates open and closed with smooth, effortless actuation. An electrical interlock prevents test stand operation while the door is open. Includes a remote emergency stop switch.
  • Safety Shield for Models F755 / F755S / F1505 / F1505S (AC1092-1, AC1092-2) Provides pinch and sample debris protection for the operator. An electrical interlock prevents test stand operation while the door is open. The tablet control panel and included remote emergency stop switch can be mounted to the shield?s extruded frame. Also compatible with Models F105, F305, and F505 with up to 24 in / 600 mm column extensions.
  • USB Hub (AC1093) Test frame-mounted 4-port USB hub improves cable management and conveniently accommodates peripherals, such as a flash drive, barcode scanner, etc. Compatible with all Series F test frames
  • Adapter, FS05 to Plug & Test® Connector and Extension (AC1083, AC1084) Adapts a Series FS05 force sensor or PTAF sensor adapter to Plug & Test® type interface, for ease of external calibration via a Mark-10 indicator. Also permits mounting of a Series FS05 sensor to Models F755, F755S, F1505, and F1505S test frames. Shown above with Model M5I indicator and AC1084 extension cable (48 in. / 1,220 mm).
  • Third-party Force Sensor Adapter (PTAF) Adapts a user-supplied force sensor to Models F105, F305, F505, and F505H test frames, and Models M5I and M7I indicators. AC1083 adapter required for Models F755, F755S, F1505, and F1505S test frames. Use the included software utility to select from a library of common force capacities. Requires a Model M5I or M7I indicator for configuration.
Model with single license F105-IM F305-IM F505-IM F505H-IM F755-IM F755S-IM F1505-IM F1505S-IM
Price Mark-10 F105-IM Test fram
$7,315.00
Mark-10 F305-IM Test fram
$8,360.00
Mark-10 F505-IM Test fram
$9,595.00
Mark-10 F505H-IM Test fra
$10,212.50
Mark-10 F755-IM Test fram
$11,352.50
Mark-10 F755S-IM Test fra
$10,735.00
Mark-10 F1505-IM Test fra
$12,540.00
Mark-10 F1505S-IM Test fr
$11,970.00
Model with pre-loaded tablet control panel F105-IMT F305-IMT F505-IMT F505H-IMT F755-IMT F755S-IMT F1505-IMT F1505S-IMT
Price Mark-10 F105-IMT Test fra
$9,167.50
Mark-10 F305-IMT Test fra
$10,212.50
Mark-10 F505-IMT Test fra
$11,447.50
Mark-10 F505H-IMT Test fr
$12,065.00
Mark-10 F755-IMT Test fra
$13,157.50
Mark-10 F755S-IMT Test fr
$12,540.00
Mark-10 F1505-IMT Test fr
$14,345.00
Mark-10 F1505S-IMT Test f
$13,775.00
Force Capacity * 100 lbF
[0.5 kN]
300 lbF
[1.5 kN]
500 lbF
[2.2 kN]
500 lbF
[2.2 kN]
750 lbF
[3.4 kN]
750 lbF
[3.4 kN]
1,500 lbF
[6.7 kN]
1,500 lbF
[6.7 kN]
Maximum travel: 18.0 in
[457 mm]
32.0 in
[813 mm]
14.2 in
[360 mm]
32.0 in
[813 mm]
14.2 in
[360 mm]
Speed range: 0.02 - 45 in/min
[0.5 - 1,100 mm/min]
0.001 - 60 in/min
[0.02 - 1,525 mm/min]
0.001 - 70 in/min
[0.02 - 1,800 mm/min]
Load accuracy (% of full scale): Test frame: ±0.1% Force sensor: Series FS05: ±0.1% | Series R07: ±0.15%
Load sampling rate: 20,000 Hz
Data acquisition rate 1,000 Hz
Speed accuracy ±0.2% of setting, virtually no variation with load
Distance accuracy ±0.002 in [0.05 mm], factory-compensated at up to full load
Distance resolution 0.0005 in / 0.01 mm
Limit switch repeatability ±0.001 in / 0.03 mm
Power: Universal input 100-240 VAC, 50/60 Hz, 300W Universal input 100-240 VAC, 50/60 Hz, 120W Universal input 100-240 VAC, 50/60 Hz, 450W
Fuse type 1.2 A, 250V, 3AG, SLO BLO 4A, 3AG, SLO BLO
Environmental conditions:
  • Indoor use only
  • Up to 6,500 ft [2,000 m] above sea level
  • Temperature range: 40 - 95??F [5 - 35??C]
  • Humidity range: up to 80% relative humidity at 31??C, decreasing linearly to 50% relative humidity at 40??C, non condensing
  • Mains supply voltage fluctuations up to ?}10 % of the nominal voltage
  • Transient overvoltages up to the levels of Overvoltage Category II
  • Use in environments up to Pollution Degree 2
Conformance: CE
Warranty 3 years [see individual statement for further details]
Weight: 60 lb
[27 kg]
70 lb
[32 kg]
184 lb
[83 kg]
149 lb
[68 kg]
197 lb
[89 kg]
157 lb
[71 kg]
Shipping weight: 75 lb
[34 kg]
85 lb
[39 kg]
235 lb
[107 kg]
195 lb
[88 kg]
247 lb
[112 kg]
205 lb
[93 kg]
* Load capacity is reduced at higher speeds in the following models:
- F305: limited to 200 lbF [1 kN] above 24 in [610 mm]/min
- F505 / F505H: limited to 300 lbF [1.5 kN] above 24 in [610 mm]/min
- F755 / F755S: limited to 500 lbF [2.3 kN] above 35 in [900 mm]/min
- F1505 / F1505S: limited to 1,000 lbF [4.5 kN] above 60 in [1,525 mm]/min

FS05 Series Force Sensors

Compatible with Models F105, F305, F505, and F505H. Adapter part no. AC1083 is required for Models F755, F755S, F1505, and F1505S.
Model No. lbF ozF gF kgF N kN mN Price
FS05-012 0.12 x 0.00002 2 x 0.0005 50 x 0.01 - 0.5 x 0.0001 - 500 x 0.1 Mark-10 FS05-012 Force Se
$1,116.25
FS05-025 0.25 x 0.0001 4 x 0.002 100 x 0.05 - 1 x 0.0005 - 1000 x 0.5 Mark-10 FS05-025 Force Se
$1,116.25
FS05-05 0.5 x 0.0002 8 x 0.005 250 x 0.1 - 2.5 x 0.001 - 2500 x 1 Mark-10 FS05-05 Force Sen
$1,116.25
FS05-2 2 x 0.001 32 x 0.02 1000 x 0.5 1 x 0.0005 10 x 0.005 - - Mark-10 FS05-2 Force Sens
$969.00
FS05-5 5 x 0.002 80 x 0.05 2500 x 1 2.5 x 0.001 25 x 0.01 - - Mark-10 FS05-5 Force Sens
$969.00
FS05-10 10 x 0.005 160 x 0.1 5000 x 2 5 x 0.002 50 x 0.02 - - Mark-10 FS05-10 Force Sen
$969.00
FS05-20 20 x 0.01 320 x 0.2 10000 x 5 10 x 0.005 100 x 0.05 - - Mark-10 FS05-20 Force Sen
$969.00
FS05-50 50 x 0.02 800 x 0.5 25000 x 10 25 x 0.01 250 x 0.1 - - Mark-10 FS05-50 Force Sen
$969.00
FS05-100 100 x 0.05 1600 x 1 50000 x 20 50 x 0.02 500 x 0.2 - - Mark-10 FS05-100 Force Se
$969.00
FS05-200 200 x 0.1 3200 x 2 - 100 x 0.05 1000 x 0.5 1 x 0.0005 - Mark-10 FS05-200 Force Se
$1,116.25
FS05-300 300 x 0.2 4800 x 5 - 150 x 0.1 1500 x 1 1.5 x 0.001 - Mark-10 FS05-300 Force Se
$1,116.25
FS05-500 500 x 0.2 8000 x 5 - 250 x 0.1 2500 x 1 2.5 x 0.001 - Mark-10 FS05-500 Force Se
$1,116.25



Series R07 Force Sensors

Compatible with Models F755, F755S, F1505, and F1505S. Cannot be used with Models F105, F305, F505, and F505H.

Model No. lbF ozF gF kgF N kN Price
MR07-50 50 x 0.02 800 x 0.5 25000 x 10 25 x 0.01 250 x 0.1 - Mark-10 MR07-50 Force Sen
$655.50
MR07-100 100 x 0.05 1600 x 1 50000 x 20 50 x 0.02 500 x 0.2 - Mark-10 MR07-100 Force Se
$655.50
MR07-200 200 x 0.1 3200 x 2 - 100 x 0.05 1000 x 0.5 1 x 0.0005 Mark-10 MR07-200 Force Se
$655.50
MR07-300 300 x 0.2 4800 x 5 - 150 x 0.1 1500 x 1 1.5 x 0.001 Mark-10 MR07-300 Force Se
$655.50
MR07-500 500 x 0.2 8000 x 5 - 250 x 0.1 2500 x 1 2.5 x 0.001 Mark-10 MR07-500 Force Se
$655.50
MR07-750 750 x 0.5 12000 x 10 - 375 x 0.2 3750 x 2 3.75 x 0.002 Mark-10 MR07-750 Force Se
$655.50
MR07-1000 1000 x 0.5 16000 x 10 - 500 x 0.2 5000 x 2 5 x 0.002 Mark-10 MR07-1000 Force S
$655.50
MR07-1500 1500 x 1 24000 x 20 - 750 x 0.5 7500 x 5 7.5 x 0.005 Mark-10 MR07-1500 Force S
$655.50







Any of the below functions may be purchased at time of order or may be activated in the field at a later date via an activation code. A complete options package is also available at a discounted price. The stand is supplied in Demo Mode, a 160-hour time period in which all functions are temporarily enabled

Part No. Description
CERT-DS Certificate of calibration, distance and speed $375.25
AC1094-1 Single column extension, 6 in / 150 mm, F105 / F305 / F505 / F505H $403.75
AC1094-2 Single column extension, 12 in / 300 mm, F105 / F305 / F505 / F505H $560.50
AC1094-3 Single column extension, 24 in / 600 mm, F105 / F305 / F505 / F505H $707.75
AC1095-1 Double column extension, 6 in / 150 mm, F105 / F305 / F505 $1,776.50
AC1095-2 Double column extension, 12 in / 300 mm, F105 / F305 / F505 $2,033.00
AC1095-3 Double column extension, 24 in / 600 mm, F105 / F305 / F505 $2,280.00
AC1086 Safety shield, F105 / F305 / F505 $2,185.00
AC1092-1 Safety shield, F755S / F1505S $3,515.00
AC1092-2 Safety shield, F755 / F1505 $2,593.50
AC1093 USB hub $256.50
AC1083 Adapter, FS05 sensor / PTAF adapter, to Plug & Test® connector / F755, F755S, F1505, F1505S test frames, 10 in / 250 mm cable $356.25
AC1084 Extension cable, 24 in / 610 mm, Plug & Test®, male/female $356.25
PTAF Adapter, Plug & Test®, customer-supplied force sensor to Series F test frames $403.75
DC5000 Spare tablet control panel, pre-installed with IntelliMESUR®, with test frame mounting hardware $6,650.00
15-1019 IntelliMESUR® software, customer installation on a Windows device, additional seat $5,795.00


Grips


Wire Terminal Grips

Wire / Rope Grips

Wheel Wire Terminal Grips

Dual Roller Grip

Adjustable Dual Roller Grip

High Capacity Eccentric Roller Grip

Film & Paper Grips

Pneumatic Grip

Parallel Jaw Grip
Parallel Jaw Vise-Action Grip
Parallel Jaw Vise-Action Grip

Self-Tightening Wedge Grip

Miniature Component Grip

Bottle Grip

Cap Grip

Jacob's Chuck Grip

Compression Plates

Rubber Tip

Swivel Adapter

STH Attachments

Jacob's Chuck Grip

Hooks

Flat Heads

Extension Rods

Chisel Points

Cone Points

V Grooves

Thread Adapters

Padded Attachments

Lock Ring

Anchor Pin

Eye End Adapters

Coefficient of Friction

Score Bend Fixture

Opening Force Fixture Set

Vise Grips

Miniature Wedge

Multi-Jaw Grip

Universal Cap Grip

Clevis Grip

High Capacity Wire/Rope Grip

Bend Fixtures

Loop Tack Fixture

Syringe Compression Fixture
View Cart | Specials | Contact Us | Home | Blog | Sitemap | Store Policies | Your Account | Enter Monthy Contest

For Orders, Phone toll-free 800-832-0055
All other inquiries, please phone 718-336-5900
FAX 718-627-1313

Chat with us via WhatsApp Chat whatsapp: 718 787 8658



Scales & Equipment: Value Electronic Scales | Value Mechanical Scales | Lab / Analytical Scales | Baby Scales | Bathroom Scales | Bariatric Scales | Body Fat Monitors | Pro Body Composition Monitors | Calibration Weights | Counting Scales | Crane ScalesDeli/Food/Grocery Scales | Dynamometers | Fish/Game Scales | Floor Scales | Force Gauges | Industrial-Use Scales | Jewelry Scales | Livestock Scales"Legal for Trade" Scales | Medical Scales | Moisture Analyzers | Pallet Scales | Pocket ScalesPortable Spring Gauges | Shipping Scales  | Specialty Medical Scales | Test Stands / Force Measurement | Veterinary Scales


Manufacturers: Acculab digital scales | AND electronic scales | Best Weight mechanical scales| Detecto Physician's Scales | CAS digital scales | Chatillon/Ametek mechanical and electronic scales | DigiWeigh Economical Scales | Dillon Crane Scales, Dynamometers & Force Testing Products| Easy Weigh Legal for Trade Scales | Health O Meter Scales | Hoto Instruments | Imada Force Measurement | InScale Floor Scales | Mark-10 Force Testing | Mettler Toledo® | Minx Economical Pocket Scales | Ohaus electronic and mechanical scales | Tanita digital scales | Salter Brecknell | Sartorius Lab Balances | Seca Medical Scales | Great Gift Ideas



© 2000 2022 scalesgalore.com   All rights reserved.
Myaccount cart home Home 1
