The WT3-200 wire crimp pull tester is designed to measure the pull-off force of crimped wire and tube terminations. An ergonomic lever allows for easy application of up to 200 lbF (1,000 N) of crimp pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]).
The WT3-200 wire crimp pull tester is designed to measure the pull-off force of crimped wire and tube terminations. An ergonomic lever allows for easy application of up to 200 lbF (1,000 N) of crimp pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]).

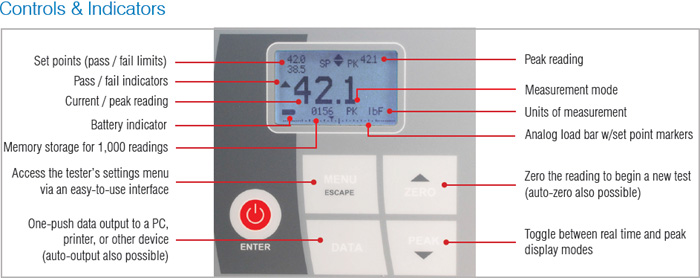

A large, backlit graphic LCD displays easy-to-read values, including real-time force, peak force, programmable pass/fail limits, units of measurement, and more. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. An analog load bar is shown on the display for graphical representation of applied force.
On-board data storage for up to 1,000 readings is included, as are statistical calculations and output to a PC. Unique automatic output / data storage / zeroing upon sample break helps automate testing processes.
An optional ring terminal fixture may be used to secure ring terminations, and an optional carrying case makes transportation simple and safe.
Measures real-time and peak force values
Ergonomic lever operation produces 200 lbF [1,000 N]
USB, RS-232, Mitutoyo (Digimatic), and analog outputs
Automatic output / data storage / zeroing upon sample break helps automate testing processes
1,000-point data memory with statistics and outputs
Password protection prevents unauthorized changes
Programmable set point indicators and outputs for pass/ fail determination
High-speed 7,000 Hz sampling rate accurately captures peak force values
Configurable audio alarms and key tones
Mounting holes for bench mounting
CE mark
Key Features
Adjustable wire terminal fixture accommodates wire diameter sizes up to 0.25 in (6.3 mm)
Ergonomic lever easily applies force and releases the sample.
Unique knurled cam design effectively secures and pulls the loose end of the sample

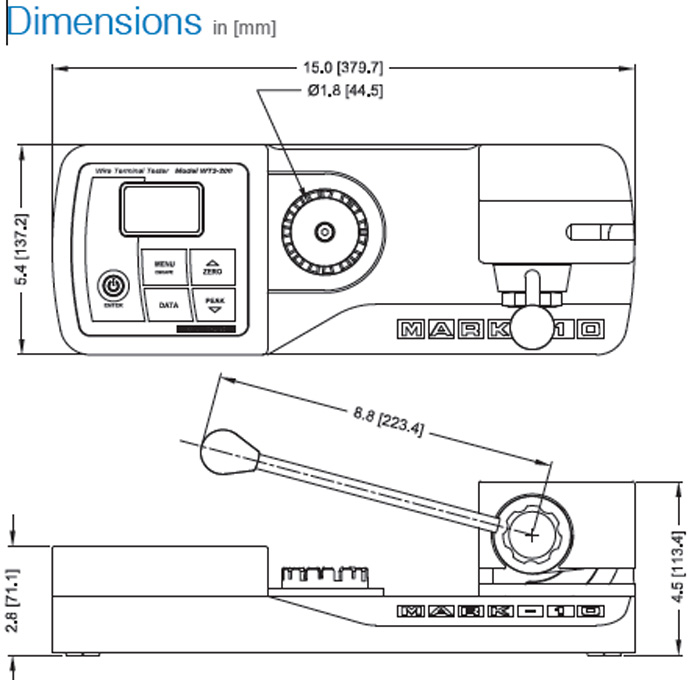

Model
WT3-200
$1,980.99
Force Capacity
200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN
Accuracy
±0.2% of full scale
Wire gauge range
AWG30 - AWG3
Wire dia. range
0.01 - 0.25 in [0.3 - 6.3 mm]
Sample length range
Minimum 7.50 in [191.0 mm], excluding termination, unlimited length
Maximum sample elongation
1.15 in [29.2 mm]
Power
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life
Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Sampling Rate
7,000 Hz
Outputs
USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC at capacity, ±0.25% of full scale. General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Safe overload
150% of full scale (display shows "OVER" at 110% and above)
Weight
16.0 lb [7.3 kg]
Included items
Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTMLite software, MESURTMgauge DEMO software, and user's guide), NIST-traceable certificate of calibration
Warranty
3 years (see individual statement for further details)
