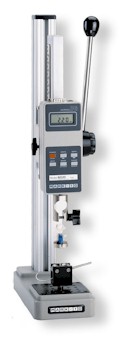

The lever operated Force Measurement Test Stand Mark 10 TSB is an economical solution for quick-action tensile testing and compression testing of up to 100 lb of force. Constructed of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments.
Features / Specifications:
- Maximum force: 100 lb [500 N]
- Maximum travel, with stops (optional): 3.75" [95 mm]
- Maximum travel, without stops: 6" [152 mm]
- Travel rate: 3" [76.2 mm]/lever revolution
- Compatible with all Mark-10 force gauges, accessories and grips
- Loading lever can be positioned in 30° increments for ease of operation
- Mounting holes for bench mounting
- Optional adjustable travel stops
- Precision ground rack for smooth precision motion
- Removable base plate with 25 #10-32 UNF holes for fixture mounting
- Low force friction brake
Optional Equipment
- A wide range of force gauges and gripping fixtures
- Digital travel display (shown right) - 6" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.001" [0.03 mm] accuracy, SPC output for automated data collection. Requires travel stops kit.
- Horizontal wall / mounting kit - Set of mounting legs that attach to the test stand column in place of the base
- Travel stops kit - Set of upper and lower travel stops
| Model | Capacity x resolution | Price |
|---|---|---|
| TSB100 | Test stand, lever-operated, 100 lbs | $897.75 |
| TSB003 | Travel stops kit for TSB | $104.50 |

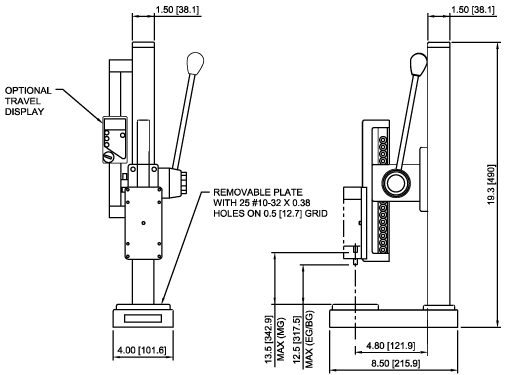

Dimensions:
