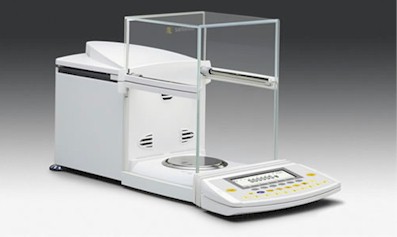

 Sartorius ME. Analytical balances with the highest credentials.
Sartorius ME semi-micro analytical balances are highly proficient at performing the core tasks of analytical weighing with incomparable speed, stable accuracy and reliability.
Incomparably Fast
An outstanding feature of the Sartorius ME series micro balance is speed, stable radouts with five decimal places in just eight seconds. This scorching speed puts the Sartorius ME at the top of the class of analytical balances.

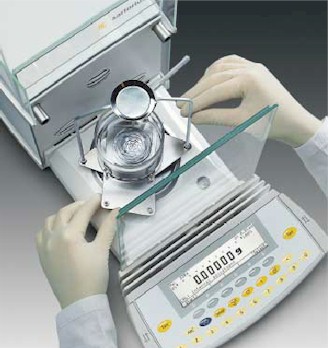

Operation of the Sartorius ME draft shield is also designed for fast weighing. Controlled by palm-operable keys or by custom programming, the draft shield closes quietly, precisely and quickly. It's opening and closing position can be adapted as required.
Built-in software supports all key weighing applications in the lab. As a result, this ensures smooth, time-saving lab procedures and reliable results
- Imcomparably fast readouts
- Three-part, motorized draft shield system
- User-friendly palm-activated keys for draft whield operation -- optional foot switch for applications where you need your hands free
- Built-in application software
- Removable control unit
 Incomparably Stable Accuracy
Repeatability of the weights measured is an additional strength of the Sartorius ME. Plus, the results are just as stable as the robotically etched 21st century weigh cell on the Sartorius ME. For accuracy every time, all the time.
The Sartorius ME analytical balance is amazingly impervious to the ambient conditions of the surrounding environment. Interfereing static electricity on samples and tare containers can be neutralized at the touch of a key.
The clearly structured control unit on the ME is an intelligent interface between the user and the balance: 100% input, 100% feedback, 100% output.
- Impervious to ambient conditions
- Neutralized static electricity
- Operator guidance prompts in plain text
- Alphanumeric sample IDs
 Incomporably Reliable
Sartorius ME stands for reliability, year in, year out. That's why the Sartorius ME comes with a three-year warranty that can be extended upon request for up to a total of five years.
The Sartorius ME features a 21st century monolithic weigh cell that only Sartorius provides. This monolithic technology is vastly superior to that of conventional weigh cells. Manufacturing tolerances and deformation that inevitably occur when more than 100 or more individual parts of different materials are used in conventionally produced weigh cells are practically eliminated in the monolithic weigh cell. The monolithic weigh cell is robotically etched from a single block of high-grade aluminium. For this reason, it offers unique conditions for unlimited and durable weighing accuracy.
- Unique monolithic weigh cell
- Software support for use in quality management systems
- SQmin function for displaying the allowable minimum sample weight according to the United States Pharmacopeia (can be activated by Sartorius Service)
- Display of the uncertainty of measurement according to the German Calibration Service DKD
- ISO | GLP compliant, user-configurable records and printouts
- Anti-twist weighing pan (for automated weighing sequences)
Features & Applications :
 Weighing Units: grams, kilograms, carats, pounds, ounces, troy ounces, milligrams, grains, pennyweight, tlh, tls, tlt, tlc, mom, K, tol, bat, MS and parts per pound- Applications: Mass unit conversion by toggling,counting, weighing in percent, animal weighing, recalculation, calculation, density determination, differential weighing, air buoyancy correction, air density determination, checkweighing, time-controlled functions, totalizing, formulation, statistics, 2nd tare memory, identification codes, 300 product data memory
- Display Update: 0.2 - 0.4 seconds depended upon filter level selected
- Display: High contrast LCD with backlit graphical display
- Allowable Ambient Operating Temperature: 5° C to 40 ° C (41° F to 104° F), 85% RH or less
- Sensitivity Drift (10° - 30°C/50°F-86°F): ± 1 ppm / °C
- Interface: Two standard ports - bi directional RS-232 port & printer port; Optional - RS-2329-contact connector (PC) plus a 5-contact DIN (keyboard or barcode scanner); Optional - RS485 (12-contact round int) 5-contact DIN (keyboard or barcode scanner)
- Power Source: AC Adapter 120 VAC included with scale
- Power Consumption: approximately 16VA (supplied by AC adapter)
Specifications:
| Model |
Price |
Readability |
Capacity |
Reproducibility (+/-) |
Linearity (+/-) |
Pan size |
| ME235S |
|
0.01 mg |
230 g |
0.015/0.025 mg |
0.1 mg |
Ø 90 mm / 3.5" |
| ME235P |
|
0.01/0.02/0.05 mg |
60 / 110 / 230 g |
0.015/0.04/0.04 mg |
0.15 mg |
Ø 90 mm / 3.5" |
| ME235P-SD |
|
0.01/0.02/0.05 mg |
60/110/230 g |
0.015/0.04/0.04 mg |
0.15 mg |
Ø 90 mm / 3.5" |
| ME614S |
|
0.1 mg |
610 g |
0.1 mg |
0.4 mg |
Ø 90 mm / 3.5" |
| ME414S |
|
0.1 mg |
410 g |
0.1 mg |
0.3 mg |
Ø 90 mm / 3.5" |
| ME254S |
|
|
| 6906918 |
Ink Ribbon (fits YDP20-0CE printer) |
|
|
| 6906937 |
Printer Paper, large size (internal), package of 5 rolls (fits YDP20-0CE printer) |
|
|
| YCC01-USBM2 |
RS232 (25-pin) to USB Connecting Cable |
|
|
| YFS01 |
Foot Switch with T-Connector, for remote control of print, tare, cal, F, CF or toggle key |
|
|
| YHS02 |
Hand Switch with T-Connector, for remote control of print, tare, cal, F, CF or toggle key |
|
|
| LD2 |
Locking Device, anti-theft |
|
|
| YRD11Z |
Indicator, Red-Green-Red, for over/under checkweighing, fits RS232C and checkweighing software, 9 foot |
|
|
| YPE01RC |
Foot Switch with T-Connector, open/close door, tare, print |
|
|
| 6565-250 |
Weighing Boats, Aluminum (4.5 mg), 0.5 x 0.2 x 0.1 inches, 250 per pkg |
|
|
| YIB01-0UR |
Ionizing Blower (neutralizes static charges) for use on samples prior to weighing (on any balance) |
|
|
| YSTP01 |
Stat Pen, neutralizes static electricity on samples |
|
|
| 24201621 |
Granite Platorm, 16 x 21 inches, with vibration isolators |
|
|
| YDK01 |
Density Kit (does not include software) |
|
|
Sartorius YDP20-0CE Statistical Printer
|
The YDP20-0CE data printer is designed to receive
weighing data from a connected weighing instrument
and print it on plain paper (roll width:
57.5 mm), with up to 24 characters per line.
The data printer is equipped with a real-time clock.
After the printer has been configured according to
the required settings, it is suitable for use as auxiliary
apparatus in legal metrology. The following can be computed/printed out:
- Number of weighing operations
- Mean value
- Standard deviation
- Variation coefficient
- Minimum value/weight
- Maximum value/weight
- Difference between the maximum and minimum value/weight
The YDP20-0CE data printer meets the quality standards
of the chemical and pharmaceutical industries, in
compliance with the requirements of GLP (Good Laboratory
Practice) and GMP (Good Manufacturing Practice).
In addition to recording individual weighing data, the
data printer can generate a statistical evaluation of
weighing data. All values transferred from an on-line
weighing instrument are stored. The following can be
printed out, depending on your printer configuration:
? Number of weighing operations
? Mean value
? Standard deviation
? Variation coefficient
? Lowest measured value
? Highest measured value
? Difference between lowest and highest measured values
? Date and time
Data is transferred either automatically or manually, at
the press of a key. |

|
