Speed, Durability and Cleanliness: The Ohaus FD food portioning scales / portion control scales are designed for food Service use
|
|
|
Now Legal for Trade! Supports HACCP Compliance.
The Ohaus FD Food Portioning Scale is a rugged, multi-use portion control scale designed for use in food service applications. Based on Ohaus’ 95 years of experience in precision weighing equipment, the FD Food Portioning Scale is ideally suited for food preparation in restaurants, bakeries, food manufacturing and other areas requiring fast operation and flexibility. Combining the precision of 2 grams or less of readability, the Ohaus FD Food Service Scale offers durability and cleanliness in one economical design.
Standard Features:
- USDA Accepted
- Legal for Trade / NTEP Approved
- All stainless steel construction for easy cleaning
- NSF listed/certified to NSF/ANSI 169-2005 (formerly NSF C-2) and USDA-AMS accepted to NSF/3-A 14159-1;
supports HACCP compliance
- Removable, dishwasher-safe stainless steel weighing pan
- Simple 4-key operation and plain-text menu prompts for fast set-up
- .75 inch-high backlit weight display with text annunciators make this scale easy to read
- Fast display update (under 2 seconds) speeds use
- Large, dedicated tare key for fast operation
- Multiple weighing units including pounds, fractional ounces, decimal ounces, combined pound:ounce display (either fractional or decimal ounces), kilograms, and grams
- Auto tare operation for hands-free operation
- Internal rechargeable battery with 120-hour use
- Checkweighing mode included with advanced features:
- 3-LED indication of Over, Accept and Under with audible buzzer
- Positive mode for packaging, negative checkweighing mode for portioning, and “zero” checkweighing mode for sorting and grading operations
- One-key entry of setpoints for checkweighing mode
Physical Features
Stainless steel top and bottom housings, removable stainless steel platform, backlit LCD display, rubber adjustable leveling feet, front panel leveling bubble, internal rechargeable lead-acid battery, external AC wall adapter, weight/ mode/ stability/ center of zero/ net weight/ tare weight/text unit indication, 4-bar battery status indicator with low-battery warning, 3 LED’s and buzzer for use in checkweighing mode, dedicated tare key, audible buzzer with user-selectable volume control, selectable scale auto-off, sealable scale configuration and calibration lockout switch
Operational Features
Selectable environmental averaging settings, back light control with auto-off option, selectable weighing units, configurable checkweighing mode audible buzzer, configurable software lockout menu, span or linearity calibration in kg or lb unit with optional external masses, semi-automatic or automatic tare, selectable auto-zero tracking.
Approvals
- Food Service: NSF Listed/Certified to NSF C-2 -- Special Equipment and/or Devices (Food Service Equipment); USDA Accepted to NSF/3-A 14159-1-2002 (Hygiene Requirements for the Design of Meat and Poultry Processing Equipment); meets requirements for HACCP conformity.
- Electrical/Emissions: UL C US listed; AS/NZS4251.1 Emission, AS/NZS4252.1 Immunity; Tested for compliance to FCC Class B Part 15 operation, complies with Industry Canada Class B
- Quality: Ohaus quality management system registered to ISO 9001:2000 by BVQI
- NTEP Approved Legal for Trade
Specifications
| Model |
FD3 |
FD3H |
FD6 |
FD6H |
FD15 |
FD15H |
 |
 |
 |
 |
 |
 |
| Price |
|
|
|
|
|
|
| Capacity x Readability |
3 x 0.0005 kg |
3 x 0.0001 kg |
6 x 0.001 kg |
6 x 0.0002 kg |
15 x 0.002 kg |
15 x 0.001 kg |
| 3000 x 0.5 g |
3000 x 0.1 g |
6000 x 1 g |
6000 x 0.2 g |
15000 x 2 g |
15000 x 1 g |
| 6 x 0.001 lb |
6 x 0.0002 lb |
15 x 0.002 lb |
15 x 0.001 lb |
30 x 0.005 lb |
30 x 0.001 lb |
96 x 0.02 oz
96 x 1/4 oz |
96 x 0.005 oz
96 x 1/4 oz |
240 x 0.05 oz
240 x 1/4 oz |
240 x 0.01 oz
240 x 1/4 oz |
480 x 0.1 oz
480 x 1/4 oz |
480 x 0.02 oz
480 x 1/4 oz |
6 lb:0oz x 0.1oz
6 lb 0oz x 1/4oz |
6 lb 0oz x 0.1oz
6 lb 0oz x 1/4oz |
15 lb:0oz x 0.1oz
15 lb 0oz x 1/4oz |
15 lb 0oz x 0.1oz
15 lb 0oz x 1/4oz |
30 lb 0oz x 0.1oz
30 lb 0oz x 1/4oz |
30 lb 0oz x 0.1oz
30 lb 0oz x 1/4oz |
| Legal For Trade |
YES |
- |
YES |
- |
YES |
- |
Non-H models are NTEP certified (CC No. 05-072A1) and
Measurement Canada approved (No. AM-5582) |
Capacity x Readability
Certified/Approved |
3000 x 1 g |
- |
6000 x 2 g |
- |
15000 x 5 g |
- |
| 6 lb x 0.002 lb |
- |
15 lb x 0.005 lb |
- |
30 lb x 0.01 lb |
- |
96 oz x 0.05 oz
96 oz x 1/4 oz |
- |
240 oz x 0.1 oz
240 oz x 1/4 oz |
- |
480 oz x 0.2 oz
480 oz x 1/4 oz |
- |
| Weighing Units |
Pound, decimal ounce, 3/4, 1/2 and 1/4 fractional ounce, gram, kilogram, combined lb:oz display (either decimal or fractional ounces) - lb:oz display not available in legal-for-trade application mode. |
| Application Modes |
Weighing, Checkweighing, Percent Weighing |
| Display |
0.75-in (19mm) high 5-digit, 7-segment backlit blue LCD display |
| Display Indicators |
Stability, center of zero, tare or net weight, battery status, checkweigh mode |
| Checkweighing Indicators |
3 LED (yellow, green, red) with configurable operation and alert beeper |
| Keyboard |
4 ? button membrane switch |
| Environmental Protection |
IP 43 |
| Tare Range |
Full Capacity by Subtraction |
| Stabilization Time |
< 2 seconds |
| Auto-Zero Tracking |
Off, 0.5, 1 or 3 divisions |
| Overload Capacity |
150% of capacity |
| AC Power |
9 VDC 0.5A AC Wall Adapter100-120 V AC, 50/60 Hz |
| Battery |
Internal rechargeable sealed lead-acid battery with 120 hours continuous use |
| Calibration |
User-selectable external span or linearity calibration |
| Operating Temperature and Humidity Range |
14o to 104oF / -10o to 40oC, 10 to 85% relative humidity, non-condensing |
| Pan Size |
8.2 x 8.2 in / 209 x 209 mm |
| Scale Dimensions WxHxD |
9 x 12 x 2.8 in / 300 x 223 x 71 mm |
| Shipping Dimensions WxHxD |
15.8 x 12.6 x 7.3 in / 400 x 320 x 185 mm |
| Net Weight |
8 lb / 3.6 kg |
| Shipping Weight |
11 lb / 5 kg |
Easy to Set-Up for Your Operation:
The OHAUS FD Food Portioning Scale Has All The Features You Need:
- Selectable Weighing Units – The FD Food Portioning Scale can be set up to display all, some, or only one weighing unit
to match the requirements of your operation.
- Lb & Oz Display – The FD Food Scale can display a decimal pound to 3 decimal places, as well as 1/4 fractional or
decimal ounces, and can even display results in a combined lb:oz display.
- Metric Display – For metric use, the FD Food Scale can display results in kilograms or grams with a readability ranging
from 0.5g to 2 g, depending on model.
- Percent Weight – Allows users to compare the weight of a sample as a percentage of a reference weight.
- Change Units Quickly – The unit displayed can be changed with a single key press
- Set It Up and Lock It In – The FD Food Portioning Scale can be set to the mode and weighing units required, and then
locked-in using either software or hardware locks. The OHAUS FD Food Portioning Scale can be locked to ensure the
configuration you choose is the configuration you use!
- Easy to Calibrate – The FD Food Portioning Scale’s software menu allows the user to recalibrate the FD Scale to ensure
accurate results. To prevent accidental recalibration, the FD Food Portioning Scale also can be configured using software
and hardware calibration lockouts. The user can calibrate the FD scale using either span (two-point) or linear
(three point) calibration setups.
- Legal-For-Trade Modes Included – For operations that require approved performance, either to NTEP or Measurement
Canada standards, the Food Portion Scale includes legal-for-trade software (non-H models only).
For Checkweighing Applications, The OHAUS FD Can Be Quickly Configured:
The FD Portioning Scale can be set to either simply display a weight, or can be set to act as a dedicated, low-profile
checkweigher for food portioning and grading:
- Portioning and Prepackaging – With the positive checkweighing mode for packaging, add to the portion on the pan until
you reach the weight you need
- Portioning Out of the Box – Use the negative checkweighing mode for portioning and pizza making, portioning out of a
container on the pan until the required weight is reached
- Sorting & Grading – The “zero” checkweighing method is designed for sorting and grading operations, so you can check
portions against preset limits
- Quickly Set Targets – Target weights can be entered quickly using the dedicated Setpoint key
- Bright LED’s and Buzzer Speed Use – Progress against weight targets can be indicated with the three LED’s, with
indications for Over, Accept and Under with selectable audible buzzer.
Designed for Food Service Use:

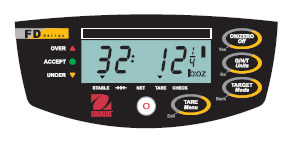

 Fast, Easy-To-Read Display – The FD Food Portioning Scale is designed to clearly and quickly display weighing results:
- Large, backlit LCD display
- Fast display updates – within 2 seconds
- Bright LED indicators for Checkweighing mode
- Text display of weight units – no cryptic unit designations or
hard-to-read annunciators
- Audible buzzer alerts user when limits are reached
- Battery power level indicator
- Bright annunciators for scale stability, center of zero, net and tare weights, checkweighing mode indication
- Manual or Auto Tare – The FD Food Portioning Scale can be configured to accept tare signals using:
- Manual taring using the large, dedicated Tare key
- The FD can be set-up to automatically tare the first weight placed on the pan
- For hands-free operation, the FD scale can also be tared using the optional foot switch
Bottom view |
Rubber adjustable leveling feet |
Removable, dishwasher-safe stainless steel weighing pan |
Side view |
Shown with pan removed - all stainless steel for easy cleaning |
All -stainless steel construction for easy cleaning |
Options:
Optional Hard Shell Carry Case (Ohaus P/N 80251394) |
|
|
