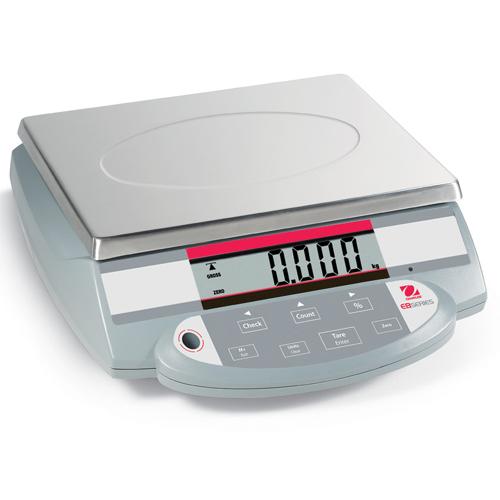

The Ohaus EB series compact bench scale -- utility, portability, Ohaus quality and value.
Weigh, count, checkweigh, percent weigh -- the Ohaus EB series industrial scale is a multi-function weighing scale designed for light to medium industrial weighing applications. With fast displayed results, multiple functionality and internal battery operation, the Ohaus EB series offers versatility, portability and dependability in one affordable package.
Standard Features:
- Maximum displayed resolution of 1:30,000
- Stainless steel weighing pan
- Four weighing units: kg, g, lb and oz
- Application Modes: Checkweighing, counting and percent weighing
- User-programmable weight and parts HI/LO checking mode with audible buzzer
- 80-hour internal rechargeable battery with power-saving auto shut off feature
- Included in-use cover
- Industry leading quality and support
Specifications
| Model |
EB6 |
EB15 |
 |
 |
| Price |
 |
|
Capacity x Readability |
13 x 0.0005 lb
208 x 0.01 oz
6 x 0.0002 kg
6000 x 0.2 g |
33 x 0.001 lb
528 x 0.02 oz
15 x 0.0005 kg
15000 x 0.5 g |
Maximum Displayed Resolution |
1:30,000 |
Construction |
Stainless steel pan, plastic housing |
Weighing units |
lb, kg, oz, g |
Linearity |
+/- 1d |
Application Modes |
Weighing, counting, checkweighing, percent, accumulation |
Display |
1 window backlit LCD display, 1 inch (25.4 mm) high, 6 digit, 7 segment |
Display Indicators |
Stability, center of zero, gross, tare, battery status, Hi-Ok-Lo units |
Hi-Lo Check Indicators |
Display with alert beeper |
Keyboard |
7 raised tactile membrane switches: M+, units, zero, tare, check, count, percentage |
| Zero Range |
4% of full scale capacity |
| Tare Range |
Full capacity by subtraction (except EB15, up to 10kg only) |
| Stabilization Time |
< 2 seconds |
| Operating Temperature |
32 ° F to 104° F /0 ° C to 40° C, 10% to 90% relative humidity, non-condensing |
| Power |
AC adapter, 12V DC / 800mA
Internal rechargeable sealed lead acid battery |
Battery Life |
80 hours continuous use with 12 hour recharge time |
Calibration |
External with kg/g mass, factory calibration recovery |
| Safe Overload Capacity |
120% of capacity |
| Pan Size (W x L) |
11.6 x 8.9 inches (294 x 226 mm) |
| Scale Dimensions (W x L x H) |
12.8 x 13 x 4.5 inches (325 x 330.5 x 114 mm) |
| Other Features |
Auto zero tracking, filtering level |
| Approvals |
Meets requirements of approval agencies: UL (adapter), FCC, CE Safety EN61558, EMC EN61326 |
|
