Designed with affordability in mind, but with no compromise on quality!
The OHAUS Defender 3000 Series economical line of digital bench scales is ideal for general weighing and simple
counting applications in production, packaging, warehouse, inventory, shipping and receiving areas.

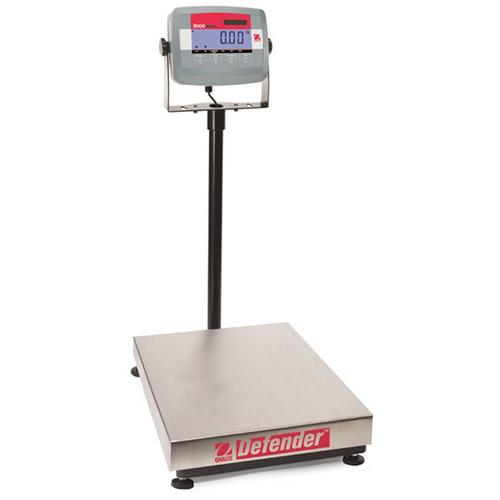

The Ohaus Defender 3000 scales feature a simple, yet rugged, tubular-frame base design and indicators with tactile
keys, backlit LCD display, built-in rechargeable battery operation and flexible mounting capabilities.
The Ohaus Defender 3000 Series industrial scale is the solution to your weighing applications that require dependability within
an affordable budget.
Standard Features Include:
- Currently, three capacity models: 60lb/30kg, 150lb/60kg and 300lb/150kg
- Maximum Resolution 1:6000-7500d
- 304 stainless steel pan with painted carbon steel frame and aluminum IP67 load cell
- Adjustable non-slip rubber leveling feet with externally visible level indicator
- T31P indicator features a high-impact durable ABS housing with reversible face for either wall, column
or table-top mounting
- Multiple weighing units: lb, oz, lb:oz, kg, g
- Parts counting mode with selectable sample sizes, last sample size and Average Piece Weight data
- 1-in/25mm high LCD weight display with high-contrast backlight
- Built-in RS232 for printing and data connection
- AC adapter and internal rechargeable lead acid battery
Main Features
ABS plastic housing with internal rib reinforcements, reversible front/rear cover, backlit LCD weight display, tactile mechanical keys, built-in
bidirectional RS232C with manual/continuous/interval printing, hardware configuration lockout switch, internal lead-acid rechargeable battery and
AC adapter. Software included for parts counting mode with selectable sample sizes, selectable span calibration points, averaging level, auto-zero
tracking, battery saving auto-off, Geo Code geographical gravity calibration adjustment and software menu lockouts. Stainless steel pan with
painted carbon steel tubular frame, non-slip rubber leveling feet with locking nuts, externally visible level bubble, aluminum IP67 load cell,
down-stops for overload protection, hollow tubular painted steel columns.
Accessories
- T31P Indicator wall mount bracket kit (painted carbon steel, includes adjustment knobs), part number 80251747
Approvals
- Safety and EMC: EN60950, EN61326, FCC, CE, cULus
- Quality: OHAUS quality management system registered to ISO 9001:2000
|
|
Approvals:
- Safety:CULUS,CE
- EMC: FCC, ICES, CE Class A
- Legal for Trade: NTEP CC 08-066 A1 (indicator) / CC 09-056 (base) Measurement Canada AM-5713C
Rev. 1 (indicator) / AM-5723 (base)
- Quality: OHAUS quality management system registered to ISO 9001:2008
| Model Number |
D31P15BR
(30369116) |
D31P30BR
(83998111) |
D31P60BR
(83998112) |
D31P150BL
(83998114) |
D31P300BX
(83998116) |
D31P300BX-W
With Wheels |
| Price |
|
|
|
|
|
|
| Capacity x Readability |
33 x 0.005 lb
528 x 0.1 oz
15 x 0.002 kg
15000 x 2 g |
60 x 0.01 lb
960 x 0.2 oz
30 x 0.005 kg
30000 x 5 g |
150 x 0.02 lb
2400 x 0.5 oz
60 x 0.01 kg
60000 x 10 g |
300 x 0.05 lb
4800 x 1 oz
150 x 0.02 kg
150000 x 20 g |
600 x 0.1 lb
300 x 0.05 kg
300,000 x 50 g
9,600 x 0.2 oz |
600 x 0.1 lb
300 x 0.05 kg
300,000 x 50 g
9,600 x 0.2 oz |
| (lb:oz) |
30 lb x 0.1 oz |
60 lb x 0.2 oz |
- |
300 lb x 1 oz |
600 lb x 2 oz |
600 lb x 2 oz |
| Maximum Displayed Resolution |
1:7500 |
1:6000 |
1:7500 |
1:7500 |
1:6000 |
1:6000 |
Legal for Trade
Capacity x Readability |
30 x 0.01 lb
15 kg x 5 g |
66 x 0.02 lb
30 kg x 10 g |
132 x 0.05 lb
60 kg x 20 g |
330 x 0.1 lb
150 kg x 50 g |
660 x 0.2 lb
300 kg x 100 g |
660 x 0.2 lb
300 kg x 100 g |
| Approved Resolution |
1:3000 |
| Legal for Trade |
NTEP Indicator: 08-066A1 Base: 08-021
Canada: Indicator AM-5713C Rec 1 Base: AM-5667 |
| Wheels |
- |
YES |
| Load Cell Protection |
Dry use for scale
IP67 for loadcell |
| Base Construction |
304 stainless steel pan with painted carbon steel frame, non-slip rubber leveling feet |
| Platform Dimensions (W x D x min H) |
12 x 14 x 4.8 in
305 x 355 x 123 mm |
16.5 x 21.6 x 5.4 in
420 x 550 x 136 mm |
19.7" x 25.6" x 5.6"
500 x 650 x 143 mm |
| Column |
13.8 in / 350 mm fixed height, tubular painted steel |
27.6 in / 700 mm fixed height, tubular painted steel |
| Leveling Component |
Externally visible level bubble and adjustable leveling feet with locking nuts |
| Safe Overload Capacity |
125% of rated capacity |
| Indicator Construction |
ABS plastic housing |
| Weighing Units |
lb, oz, lb:oz, kg, g |
| Functions |
Weighing, Parts Counting |
| Weight Display |
6-digit, 7-segment backlit LCD, 1 inch / 25 mm high digits |
| Keyboard |
4 function mechanical keys, raised, tactile |
| Stabilization Time |
Within 2 seconds |
| Auto Zero Tracking |
Off, 0.5, 1 or 3 divisions |
| Key Zeroing Range |
2% or 100% of capacity |
| Span Calibration |
5 lb/kg to 100% of capacity, user selectable |
| Power |
AC adapter with 100-hour internal rechargeable lead acid battery included |
| Interface |
Bidirectional RS232C |
| Operating Temperature Range |
14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperatures up to 31°C / 88°F,
decreasing linearly to 50 % relative humidity at 40°C / 104°F, non condensing |
| Model Number |
D31P15BR
(30369116) |
D31P30BR
(83998111) |
D31P60BR
(83998112) |
D31P60BL
(83998113) |
D31P150BL
(83998114) |
D31P150BX
(83998115) |
D31P300BX
(83998116) |
D31P300BX-W
With Wheels |

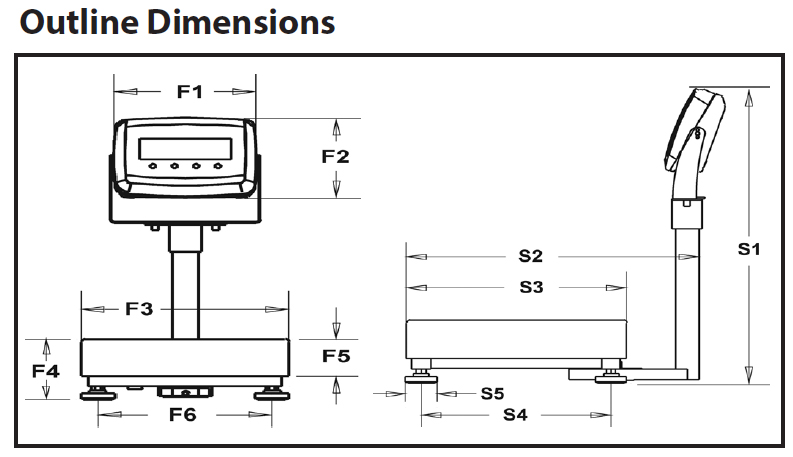

Front View Dimensions
(F1 x F2 x F3 x F4 x F5 x F6) |
8.2 x 6.5 x 12 x 4.8 x 3 x 10 in
210 x 166 x 305 x 123 x 75 x 256 mm |
8.2 x 6.5 x 16.5 x 5.4 x 3.2 x 14.6 in
210 x 166 x 420 x 136 x 80 x 371 mm |
8.2 x 6.5 x 19.7 x 5.6 x 3.5 x 17.3 in
210 x 166 x 500 x 143 x 90 x 440 mm |
Side View Dimensions
(F1 x F2 x F3 x F4 x F5 x F6) |
22.5 x 18.6 x 14 x 12 x 2 in
572 x 472 x 355 x 306 x 52 mm |
36.2 x 26.3 x 21.7 x 19.7 x 2 in
920 x 668 x 550 x 500 x 52 mm |
36.2 x 29.1 x 25.6 x 23.2 x 2 in
920 x 740 x 650 x 590 x 52 mm |
| Column |
13.8 in / 350 mm fixed height,
tubular painted steel |
27.6 in / 700 mm fixed height,
tubular painted steel |
|
