Since its introduction, the OHAUS Adventurer Pro has established itself as the industrys most versatile balance. It counts, it sums, it holds and it delivers traceable results. Now, we?re taking versatility to the next level by expanding the Adventurer Pro line to include a full range of Analytical and High Precision models. No other balance in its class offers all these features in a compact design:
The Ohaus AdventurerTM Pro. The Most Complete Balance in Its Class!
Since its introduction, the Ohaus Adventure r?Pro has established itself as the industry most
versatile balance. It counts, it sums, it holds and it delivers traceable results. Now, we?re taking
versatility to the next level by expanding the Adventurer Pro line to include a full range of
Analytical and High Precision models. No other balance in its class offers all these features in a
compact design:
Easy Access, Frameless Draftshield with Removable Doors All doors, including the front and back glass panels, disassemble in seconds, and together with a stainless steel bottom, make it fast and easy to clean.
SmarText Software Guides Users Through Balance Use SmarText is Ohaus easy to use balance software that utilizes text prompts to guide users through application use and balance setup.
QuadraStance? Design Provides Superior Footprint Stability To enhance weighing stability, QuadraStance incorporates four feet to provide superior footprint stability on any surface.
Flexibility of Available Options Ensure weighing accuracy with InCal internal calibration. A factory installed USB or second RS232 interface allows connection to multiple peripherals.
Ohaus Adventurer Pro Precision Balances
Capacity X Readability
51 g x 0.001 g 51 g x 0.02 g - Legal
210 g x 0.01 g 210 g x 0.1 g - Legal
410 g x 0.01 g 810 g x 0.01 g 2100 g x 0.01 g 3100 g x 0.01 g
2100 g x 0.1 g 4100 g x 0.1 g 8100 g x 0.1 g
410 g x 0.1 g - Legal 610 g x 0.1 g - Legal 810 g x 0.1 g - Legal 2100 g x 1 g - Legal
4100 g x 1 g - Legal 6100 g x 1 g - Legal 8100 g x 1 g - Legal

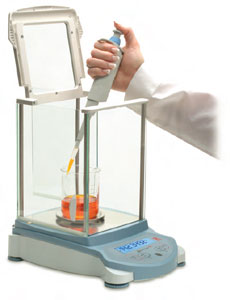

Frameless Draftshield With Removable Doors Provides Convenient Access
Users frustrated by navigating tight spaces will welcome the easy-access weighing chamber of the Adventurer Pro. The draftshield is designed without the need of top rails, so users have unobstructed entry to place or retrieve materials to be weighed. With such unobstructed entry, the chance for accidental spillage is reduced helping to eliminate waste. With contamination being a concern in Today's work environment, all doors, including the front and back glass panels are simple to remove and replace for fast and easy cleaning. Should breakage occur, within 3 easy steps, each replacement door and panel can be installed in seconds.
SmarTextTM Software Brings Man and Machine Together
SmarTextTM is Ohaus easy to use balance software that utilizes text
prompts to guide users through application use and balance
setup. Delivered through a 2-line backlit LCD and clearly marked
buttons, SmarText tells you what is going on and what you have
to do next.
Utilizing the 2-line LCD, SmarText simultaneously displays weight and application
specific information such as percent or count. For example, with one touch of the
Function button, SmarText will display application reference information such as
average piece weight (APW), while displaying a parts count.
Model
AV64
AV114
AV264
Capacity X Readability
65 g x 0.1 mg
110 g x 0.1 mg
260 g x 0.1 mg
Price:
$2105.56
$2138.89
$2833.33
With InCal Internal Calibration Price:
AV64C
AV114C
-
$2421.90
$2472.22
-
Repeatability (Std. dev.) (mg)
0.1
Linearity (mg)
+ 0.2 + 0.3
Stabilization Time (seconds)
3
Power Requirements
AC Adapter (Included)
Draftshield Type w/ Height Over Pan (in/cm)
Square: 8.6 / 22
Pan Size (in/cm)
3.5 / 9 dia.
Balance Dimensions W x H x D (in/cm)
8.7 x 12 x 11.8 / 22 x 30.5 x 30
Shipping Dimensions W x H x D (in/cm)
15.5 x 20.5 x 19 / 39 x 52.5 x 50
Net Weight w/InCal (lb/kg)
9.6 / 4.4
Net Weight w/o InCal (lb/kg)
8.7 / 4
Shipping Weight w/ InCal (lb/kg)
16.2 / 7.4
Shipping Weight w/o InCal (lb/kg)
15.3 / 7
Model
AV313
Capacity (g)
51
210
310
Readability (g)
0.001
Repeatability (Std. dev.) (g)
0.001
Price:
-
-
$1388.89
With InCal Internal Calibration Price:
AV213C
AV313C
$1355.56
$1611.11
Legal for Trade Model Number
-
-
-
-
-
-
Legal for Trade Class
II
-
-
NTEP, Certificate Number 05-118
Legal Capacity (g)
51
-
-
Legal Readability “d” (g)
“e” = “d”
0.02
-
-
Linearity (g)
+ 0.002
Stabilization Time (seconds)
2.5
3
Power Requirements w/ InCal
N/A
AC Adapter (Included) no Batteries
Power Requirements Legal
AC Adapter (Included) or 4 AA Batteries (Not Included)
Power Requirements w/o InCal
AC Adapter (Included) 4 AA Batteries (not Included
Weighing, Animal /Dynamic Weighing, Parts Counting with Automatic Sample Recalibration,Percent Weighing, Checkweighing, Totalization, Display Hold
Tare Range
To capacity by subtraction
Operating Temperature Range
50o - 86oF / 10o - 30oC
Calibration
Digital with External Weight (non-"C" models) Digital with Internal Weight ("C" models with InCal option)
Display Type
2-Line Alphanumeric Backlit LCD Display
Display Size (in/cm)
4 x 1 / 10 x 2.5
QuadraStanceTM Design for Superior Stability
QuadraStance incorporates four adjusting feet to provide superior footprint stability on any surface. QuadraStance helps prevent rocking and tipping, enhancing the weighing stability of the balance, and keeping the Adventurer Pro level and accurate. Additionally, Adventurer Pro has been designed with an up-front level indicator eliminating the need to look behind the balance during the leveling process. A quick glance at the up-front level indicator helps to ensure that the balance is level prior to each use.
Added Flexibility of Available Options
The Adventurer Pro also now offers InCalTM internal calibration. InCal ensures weighing accuracy by allowing you to calibrate the balance prior to use without the need of external weights. All Adventurer Pro models come with a built-in RS-232 interface, and for added functionality can be equipped with either a second RS-232 or USB interface, allowing connections to multiple peripherals. With full GLP/GMP data output, Adventurer Pro can meet traceability and compliance requirements.
Other Standard Features Include: Multiple Application Modes Including:
Animal Weighing Mode This mode allows the user to weigh small animals and filters out animal movements to provide a stable weight indication
Parts Counting with Optimization This mode allows the user to count based on a calculated piece weight. With optimization, counting accuracy is improved through auto re-calculation of the piece weight
Percentage Mode This mode allows the user to display the weight of a sample as a percentage of a reference weight
Checkweighing Mode This mode allows the user to check the weight of a sample against a preset target
Totalization Mode This mode allows the user to sum a series of sample weights
Display Hold Mode This mode allows the user to hold the highest stable weight on the display until cleared
Selectable Environmental Settings
Three filter modes and adjustable zero tracking are ideal for working in slow filling applications where sensitivity is a must. When working in harsh environments, user can adjust balance settings to compensate for vibrations and other disturbances.
Protective In-Use Cover
The in-use cover is replaceable and offers protection against dust and debris, minimizing the chance of damage to the display and keypad buttons.
