Two-pan design is ideal for comparative weighing
Based on the classic Roberval balance principle, the Harvard Trip balance allows the determination
of the difference in mass (rather than absolute value) between two objects.
|
|
Ohaus Value:
Strong construction and precision-engineered, built-in sliding masses for easy weighing, magnetic dampening for quicker results, self-aligning with beam design and special floating agate bearing, counterbalancing knob provides quick zeroing and stays in position, many years of precision and reproducibility with hardened steel edges, stainless steel plates. Grades 4-12 (Ages 10 and up)
| Model |
1450-SD |
1550-SD |
1560-SD0 |
| Price |
|
|
|
| Type |
Single Beam |
Double Beam |
Double w/Tare |
| Capacity x Readability |
2000 x 0.1 g |
2000 x 0.1 g |
2000 x 0.1 g |
| Warranty |
5 YRS |
5 YRS |
5 YRS |
Calibration
Top Beam
Bottom Beam |
10g x 0.1g
- |
10g x 0.1g
200g x 10g |
10g x 0.1g
200g x 10g |
| Stainless steel plate Platform Diameter |
6/15.2 (in/cm) |

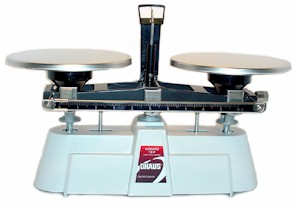

The Ohaus Harvard Trip Balance Series are precision weighing instruments, designed to provide years of service with virtually no maintenance. Harvard Trip Balances employ a two-pan design based on the classic Roberval balance principle. They have the additional advantages of magnetic damping, beams with sliding weights and two styles of weighing platforms.
Two-pan Balances of this type are commonly used for comparative weighing to determine the difference in mass between two objects rather than their absolute value. Built-in sliding masses on the side beam, Model 1450-SD, is usually sufficient for this purpose. The 1450-SD Balance is a single side beam model. The 1500 Series (Models 1550-SD and 1560-SD) are double side beam models for higher capacity weighing. Maximum Balance capacity for all Harvard Trip Balances is 2kg/5lbs. The Platforms used on the Balances are 6" diameter stainless-steel plates.
- 2000 gram capacity and 0.1 gram readability
- Available with stainless steel plate or stainless steel removable platform
- Optional: Vinyl dust cover, Footed scoops and counterweights, Specific
gravity rod and clamp
- 5 year Ohaus warranty
|
