Chatillon MT150 & MT-500 Mechanical Test Stands

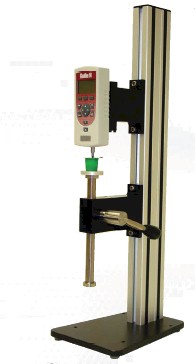

Chatillon MT150 manual Test Stand

Chatillon MT150 & MT-500 Mechanical Test Stands

Model

1000 mm Extended Travel for MT-150, Add $40.00
1500 mm Extended Travel for MT-150, Add $115.00
LG & DF Gauge Adapter for MT-150, Add $99.00
1000 mm Extended Travel for MT-500, Add $42.33
1500 mm Extended Travel for MT-500, Add $161.00
DG Gauge Adapter for MT-500, Add $198.90
Horizontal Bench & Wall Mount Option, Add $181.00
Digital Travel Indicator, Add $688.00
Ruler Assembly, Add $178.00

Shipping Weight: 30 lbs

Over 99% of items IN STOCK for Immediate Delivery! Lowest prices GUARANTEED!

The Chatillon MT-series mechanical test stands are an easy to use solution for force measurement applications up to 500 lb (2.2 Kn) capacities. Two capacities are available: 150 lb (660 N) and 500 lb (2.5 kN). Either capacity test stand can be equipped with a quick action lever or precision handwheel for controlling crosshead speed and travel. The MT Chatillon test stand can be bench mounted, wall mounted or positioned horizontally. Vertical clearances are available from 500mm (20") up to 1500mm (60"). The Chatillon MT mechanical test stands feature an innovative design that maximizes working space and that simplifies operation and maintenance. The single column design with 150mm (6") throat is ideal for large specimens. The removable platen is designed to accommodate metric and imperial threaded fixtures. Special gauge adapter kits simplify gauge alignment. Options include a column ruler, graduated in millimeters and inches. Analog and digital travel indicators are also available as options. Travel resolution can be displayed up to 0.01 mm (0.0005"). Note: A mechanical or digital force gauge is required for a complete system.

The Chatillon® MT-150 and MT-500 Series mechanical test stands are an ideal solution for tensile and compression testing in either 150 lbf (660N) or 500 lbf (2500N) capacities. Combine with a Chatillon force gauge for an economical, manual testing system perfect for the production floor or lab. The MT-series mechanical test stands feature an innovative, modular design that maximizes working space while simplifying operation and maintenance. Testers may be equipped with a quick-action lever or precision handwheel for controlling crosshead speed and travel. MT Test stands can be bench mounted, wall mounted or positioned horizontally. The MT Series testers include hooks, compression plates, adapters and gauge mounting hardware.

Features:

  • Large working area
  • 6inch throat for large specimens
  • Universal fixtering ( metric and imperial )
  • Your choice of 150lb or 500lb frame capacities
  • Available in either lever or handwheel versions
  • Modular Architecture
  • Lever or Handwheel Activation
  • Multiple Column Heights (750mm, 100mm and 1500mm)
  • Horizontal, Vertical or Wall Mounting
  • Lightweight & Portable
  • 2 year warranty
  MT-150 MT-500
Capacity 150 lb (660 N) 565 lb (2.5 kN)
Loading Method Quick Action Lever or Handwheel
Travel Rates Lever: 75 mm (3 in) per revolution
Handwheel: 12 mm (0.5 in per revolution)
Column Height Standard: 750 mm (29.5 in)
Extended: 1000 mm (39.4 in)
Ultra: 1500 mm (59 in)
Full Crosshead Travel 150 mm (6 in)
Throat 150 mm (6 in)
Maximum Stroke 150 mm (6 in)
