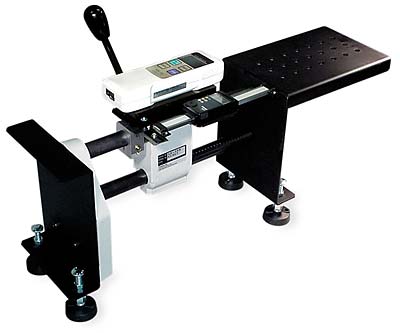

Imada LH-220 Horizontal Manual Lever Force Test Stand | ||
|
LH-220 without distance meter
LH-220S with distance meter
- Tension and compression testing
- Horizontal positioning is easy to control
- Lever action allows for rapid testing
- Large work area accommodates a wide variety of samples
- Stroke 4"
- Maximum load 220 lbs (100 kg)
The LH-220 Horizontal Manual Lever Test Stand provides maximum versatility and reliability. The stand will accommodate any of the standard range Imada force gauges. The large working platform accommodates a wide variety of samples—ideal for peel test measurements. The stand is unaffected by gravity and does not employ a return spring, making it perfect for crimp testing and other applications where rapid sample loading is desirable. The lever action provides for quick, consistent tests. Threaded feet enable the test stand to be easily levelled. The LH-220S model is equipped with a digital distance meter.
Distance Meter Specifications
| Display | Push button for inch/mm, zero set and on/off |
|---|---|
| Resolution | 0.0005"/0.01 mm |
| Accuracy | 0.1% of reading or 0.005"/0.1mm, whichever is greater |
Optional Data Buttons and Data Software
Imada DB-Series data input buttons work with Imada
SW software to automate data collection from Imada force
or torque gauges. Enter peak measurements into the spreadsheet
and "zero" the gauge with a touch of the button.
Minimize computer time and mouse usage
Click here for more info...
Imada NLH-220 Horizontal Manual Lever Force Test Stand | ||
|
NLH-220 without distance meter
NLH-220S with distance meter
- Tension and compression testing
- Horizontal positioning is easy to control
- Lever action allows for rapid testing
- Large work area accommodates a wide variety of samples
- Stroke 4"
- Maximum load 220 lbs (100 kg)
The NLH-220 Horizontal Manual Lever Test Stand provides maximum versatility and reliability. The stand will accommodate any of the standard range Imada force gauges. The large working platform accommodates a wide variety of samples�ideal for peel test measurements. The stand is unaffected by gravity and does not employ a return spring, making it perfect for crimp testing and other applications where rapid sample loading is desirable. The lever action provides for quick, consistent tests. Threaded feet enable the test stand to be easily levelled. The NLH-220S model is equipped with a digital distance meter.
Distance Meter Specifications
| Display | Push button for inch/mm, zero set and on/off |
|---|---|
| Resolution | 0.0005"/0.01 mm |
| Accuracy | 0.1% of reading or 0.005"/0.1mm, whichever is greater |
