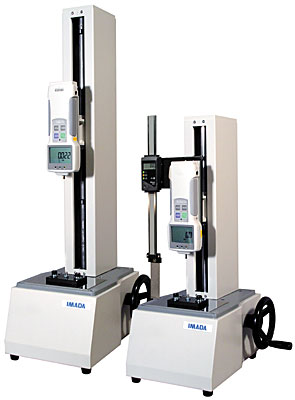

Imada HV-110 Vertical Manual Lever Force Test Stand
 |
HV-110S with Distance Meter |
- Hand wheel design provides a high degree of precise control
- One stand for both compression (push) and tension (pull) tests
- Gauge remains in place when hand wheel is released
- HV-110
Max clearance 9" (with extender 14") - HV-110L
Max clearance 16.8" (with extender 21.8") - Capacity 110 lbs
- Optional digital distance meter
Model HV-110S/HV-110 are compact test stands with a maximum capacity of 110 lbs. The handwheel offers precise movement that is ideal for applications requiring relatively consistent speed and maximum gauge control. The gauge remains in position when the wheel is released which allows the user to easily change samples between tests. Hand wheel operation provides repeatable test results from sample to sample. The HV-110S/HV-110 accommodate any of the standard range Imada force gauges.
Optional Data Buttons and Data Software
Imada DB-Series data input buttons work with Imada
SW software to automate data collection from Imada force
or torque gauges. Enter peak measurements into the spreadsheet
and "zero" the gauge with a touch of the button.
Minimize computer time and mouse usage
Click here for more info...
Imada HV-110 Diagram
Imada HV-110L Diagram
