Imada DSW-75 Torque Tester / Torque Wrench

Imada DSW-15 Torque Tester / Torque Wrench

All Imada instruments have special price incentives. Please phone us at 800-832-0055 for the best pricing on Imada gauges.

Imada DSW-75 Lightweight digital torque tester / torque wrench with 3/8 " drive, 650 lb-in capacity

Ergonomic, light weight, rugged metal construction
Wrench head swivels 300°
Available in lbf-in, lbf-ft, Kgf-cm and N-m (specify when ordering)
Peak, Real Time and Peak Down measuring mode (selectable)
Accuracy: ±0.5% F.S. ±1 LSD
400 data memory for recall or for SPC download
Programmable High and Low setpoints with both audible beep and Green/ Red LED indicator for uniform torque tightening or GO/NO GO testing
Both CW and CCW operation
RS-232 output for SPC capability (peak data only)
Runs on internal NiCad batteries (8 hour use)
CW stepless one-way clutch adapter, AC charger and carrying case included.

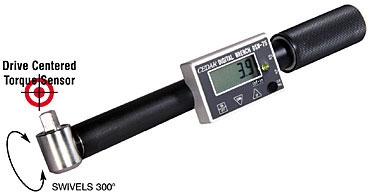

The Imada DSW-75 is a lightweight digital torque wrench that tightens or loosens bolts up to 660 lbf-in. The wrench head swivels 300° and can be used in tight places. You’ll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. Rugged enough to be used in production.

This torque tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the RS232 port.

DSW-75 Ranges (Accuracy: +/-0.5% F.S. ±1 LSD

Model	Capacity
DSW-75	3.0 ~ 660.0 lbf-in
DSW-75F	0.30 ~ 55.00 lbf-ft
DSW-75kg	3.0 ~ 750.0 kgf-cm
DSW-75N	0.30 ~ 75.00 N-m

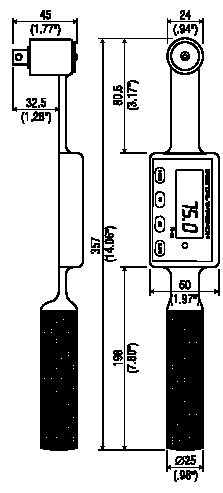

Imada DW-75 Torque Tester / Torque Wrench

Imada DSW-75 kit shown above

Imada DSW-75 Torque Tester / Torque Wrench
