Super EX
Reference Specimens Available| Model | Description | Peak Indicator | Compatible Constant Load Stand | Price |
|---|
|
 |
Asker is one of the leading manufacturers of durometers in the world. Asker design and precision manufacturing produce a reliable, highly accurate durometer.
- Model EX-A* Type A Normal rubber
- Model EX-C* Type Asker C Soft rubber and sponge
Hardness is an essential characteristic of various rubber, elastomers and plastic products. The first step in using a hardness tester is to select the optimum type based upon the material hardness.
Asker Super EX durometers feature portablility, ease of operation, non-destructive measurement and optional peak indicators. They are heavy-duty with high repeatability.
Operation

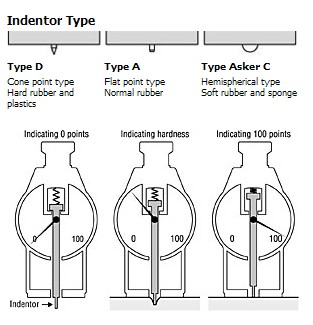

As the durometer is pressed against the sample, the material resistance force and indentor spring load balance. The depth of the indentor is measured, which provides a measure of the material's hardness. Values are based upon a 100 point scale (accuracy ±1 point). However, as time elapses the indicator will "creep" back so that a reading taken a few seconds after the durometer makes contact with the sample will be less than the peak reading. Hoto Instruments durometers offer a peak indicator as an option to more closely monitor the difference between peak and "creep".
| Reference Specimens |
|
These test blocks are convenient references to the durometer's operating condition. Available for type D (80 points) and type A (70 and 50 points).
|
 |
