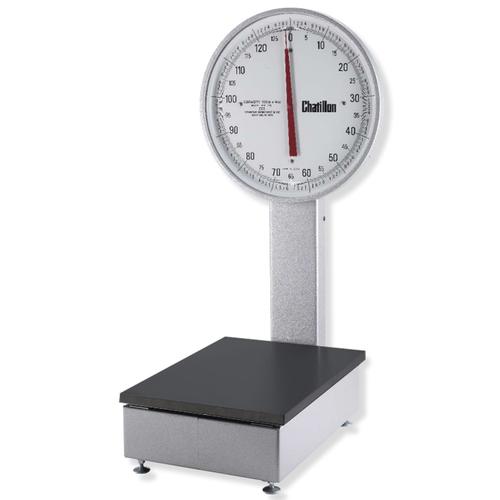

Chatillon PDT-Series Mechanical Platform Dial Industrial Scales

Specifications Chart Legal For Trade

Chatillon PDT-Series Mechanical Platform Scales   Select PDT-065 - PDT-130 - PDT-260 - Optional Accessories Optional Stainless Steel Cover (#16076), Add $299.25 Shipping Wt:  52 lbs.

• H44 Class III ?Legal for Trade?
• Avoirdupois and Metric Dials
• 13-inch (330mm) Reading Dial with Knife-edge Pointer
• Full Scale in 1 Revolution
• Rugged Cast Iron Base, Heavy-gauge Steel Construction
• 1 Year Warranty

Certificate of Conformance No. 90-078 was issued under the National Type Evaluation Program of the National Conference on Weights and Measures, that the design conforms to NIST Handbook 44 Class III. The scale is ?Legal for Trade? subject to on-site verification by the local Weights and Measures jurisdictions.

Optional Accessories
• 12130-3 - Quick Tare Knob
• 16012 - Stainless Steel Platform Cover
• 23019 - Stainless Steel Provision Pan
• 16005-A - Damping Oil (65 lb, 130 lb, 25 kg, 50 kg)
• 16005-B - Damping Oil (260 lb, 520 lb, 100 kg, 200 kg)

Model	PDT-065		PDT-130		PDT-260
Price
Capacity x Accuracy	65 lb x 2 oz		130 lb x 4 oz		260 lb x 8 oz
Legal for Trade	Class III CC #90-078

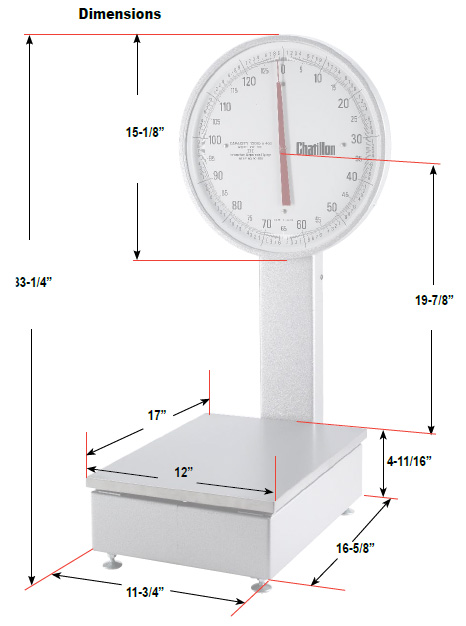

Base Size	17 x 12 inch		17 x 12 inch		17 x 12 inch
dial	13-inch		13-inch		13-inch
Range	0 - 62 lb	63 - 65 lb	0 - 125 lb	126 - 130 lb	0 - 250 lb	251 - 260 lb
Scale Divisions	0 - 500	501 - 2000	0 - 500	501 - 2000	0 - 500	501 - 2000
Tolerance Division	±1/2 d	±1 d	±1/2 d	±1 d	±1/2 d	±1 d
Tolerance Weight	±1 oz	±2 oz	±2 oz	±4 oz	±4 oz	±8 oz
Tolerance Weight	±0.10 %	±0.19 %	±0.10 %	±0.19 %	±0.10 %	±0.19 %
Safe Overload	120% of rated capacity
Ultimate Overload	125% of Rated Capacity
Display	Single Reading
Operating Temperature	45º to 104º F (7º to 40ºC)
Storage Temperature	-4º to 104ºF
Instrument Weights	50 lbs (23 kg)
Shipping Weight	60 lbs (28 kg)
