Good on most Analytical and Lab Scales

Chatillon Mechanical Hanging Dial Scales

Chatillon Scales
Authorized Dealer
Three different series of mechanical hanging scales meet practically any need. From the BD-Series huge 400 pound capacities, to the 30-60 pound dairy scale, to the 50-200 pound warehouse scales -- we have an economical model to meet your weighing needs
BD-Series
Chatillon BD series mechanical hanging scales are ideal for use on farms, ranches, plants, warehouses and industrial settings.
Milk
Chatillon Milk Scales used universally on farms and dairies for accurate weighing
Warehouse
General purpose mechanical Warehouse scales in a range of capacities for use in field, warehouse or as industrial balances.
More Info
Specifications Chart
More Info
Specifications Chart
More Info
Specifications Chart

Chatillon Mechanical Hanging Balances

Model


Shipping Wt:  9 lbs.


Model Price Dial Diameter Uses Capacity x graduation Revolutions
BD200


7"

General

200 lb x 1/2 lb 1
BD400
7" General 400 lb x 1 lb 1
MD60
(270MD)

8" Milk 60 lb x 0.1 lb 3
WH-60
(773H)

8" Warehouse 60 lb x 1 oz 3
WH-50
(6050)

8" Warehouse 50 lb x 1/4 lb 1
WH-100
(6100)

8" Warehouse 100 lb x 1/2 lb 1
WH-200
(6200)

8" Warehouse 200 lb x 1 lb 1

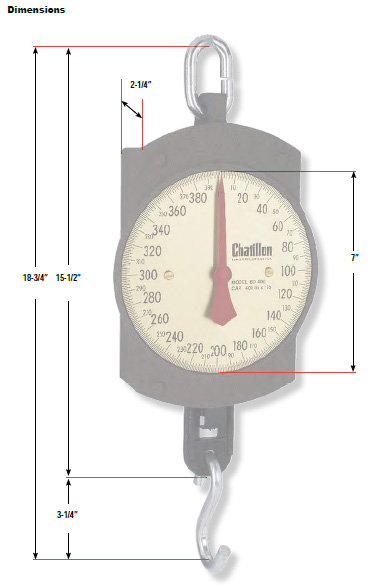

BD-Series Hanging Industrial Warehouse Scales

The CHATILLON� BD Series hanging scales are designed for weighing large or small loads up to 400 lbs. Ideal for agriculture, warehouses, workshops or the home. Scales are constructed with a heavy, protective cast-iron runner and housing with large, easy-to-read 7-inch dial. Dials have large, bold black numbers and graduations. Scales achieve full capacity in one revolution

Scales feature a convenient zero adjustment screw. Scale is factory calibrated using certified NIST weights. Scale comes with plated top loop and bottom hook

Features
  • Large, Easy-to-Read Brass Dial
  • 7-inch High Contrast Dial
  • Full Capacity in 1 Revolutions
  • Plated Top Loop and Bottom Hook
  • 1 Year Warranty
Model BD-200 BD-400
Price BD-200

BD-400

Capacity x Resolution 200 lb x 1/2 lb 400 lb x 1 lb
Safe Overload 120% of rated capacity
Ultimate Overload 125% of Rated Capacity
Display Single Reading
Operating Temperature 32o to 104oF (0o to 40oC)
Storage Temperature -4o to 104oF (-20o to 40oC)

Model Resolution Range Scale Divisions Tolerance Division Tolerance Weight %Accurate
BD-200 200 lb x 1/2 lb 0-25 lb 0-50 +1/2 d +0.25 lb +0.13%
26 - 100 lb 51-200 +1 d +0.5 lb +0.25%
101 - 200 lb 201 - 400 +1-1/2 d +0.75 lb +0.38%
BD-400 400 lb x 1 lb 0-50 lb 0-50 +1/2 d +0.5 lb +0.13%
51 - 200 lb 51-200 +1 d +1 lb +0.25%
201 - 400 lb 201 - 400 +1-1/2 d +1.5 lb +0.38%

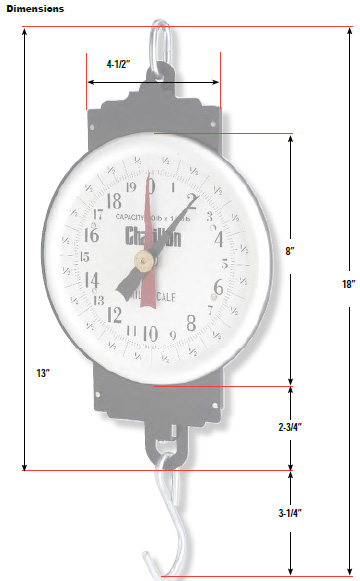

Milk Scales / Dairy Scales - Models 260/270 MD

The CHATILLON� MD-60 Series hanging scale is designed expressly for dairy applications. Scale is constructed of heavy gauge japanned steel with large, easy-to-read 8-inch dial. Dials have large, bold black numbers and graduations. The MD-60 scale has two pointers- one pointer can be locked to indicate net tare weight; the other pointer indicates gross weight. Scale capacity is achieved in 3 pointer revolutions. Scale capacity is 60 lbs. Measurements are in 1/10 lb increments.

Scales feature a convenient zero adjustment screw. Scale is factory calibrated using certified NIST weights. Scale comes with top loop and bottom hook. Loop and hook are plated.

Features
  • Large, Easy-to-Read Dial
  • 8-inch High Contrast Dial
  • Twin Pointers for Net and Gross Weight
  • Full Capacity in 3 Revolutions:
  • Plated Top Loop and Bottom Hook
  • 1 Year Warranty
Model MD-60
(270MD)
Price V31XH202

Capacity x Resolution 60 lb x 1/10 lb
Safe Overload 120% of rated capacity
Ultimate Overload 125% of Rated Capacity
Display Single Reading
Operating Temperature 32o to 104oF (0o to 40oC)
Storage Temperature -4o to 104oF (-20o to 40oC)

Model Resolution Range Scale Divisions Tolerance Division Tolerance Weight %Accurate
MD-60 60 lb x 1/10 lb 0-5 lb 0-50 +1/2 d +0.05 lb +0.08%
6 - 20 lb 51-200 +1 d +0.1 lb +0.17%
21 - 40 lb 201 - 400 +1-1/2 d +0.15 lb +0.25%
41 - 60 lb 400 + +2-1/2 d +0.25 lb +0.42%

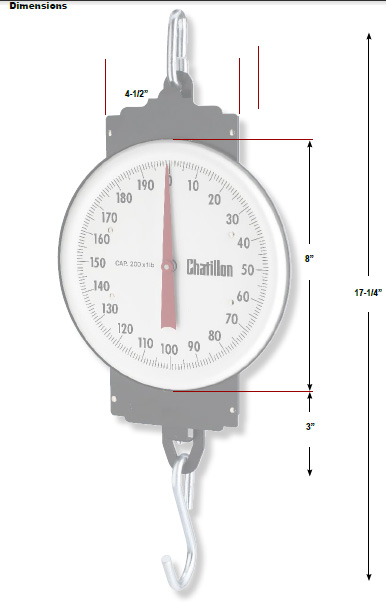

Warehouse Scales - Models 773H, 6050, 6100, 6200

The CHATILLON� Warehouse Series hanging scales are designed for general purpose applications. Scales are constructed of heavy gauge japanned steel with large, easy-to-read 8-inch dial. Dials have large, bold black numbers and graduations.

Scales feature a convenient zero adjustment screw. Scale is factory calibrated using certified NIST weights. Scale comes with top loop and bottom hook. Loop and hook are plated.

Features
  • Large, Easy-to-Read Dials
  • 8-inch High Contrast Dial
  • Full Capacity Revolutions:
    • WH-050 1 Revolution
    • WH-060 3 Revolutions
    • WH-100 1 Revolution
    • WH-200 1 Revolution
  • Plated Top Loop and Bottom Hook
  • 1 Year Warranty
Model WH-060
(773H)
WH-050
(6050)
WH-100
(6100)
WH-200
(6200)
Price WH-060

WH-050

WH-100

WH-200

Capacity x Resolution 60 lb x 1 oz 50 lb x 1/4 lb 100 lb x 1/2 lb 200 lb x 1 lb
Safe Overload 105% of rated capacity
Ultimate Overload 125% of Rated Capacity
Display Single Reading
Operating Temperature 32o to 104oF (0o to 40oC)
Storage Temperature -4o to 104oF (-20o to 40oC)
