Chatillon 8200 Series Mechanical 13" Hanging Scales
Authorized Dealer
Chatillon 8200 mechanical hanging scales are chrome plated steel for excellent performance even in hot temperatures. With 13 inch glass covered double dial head. Available with below hook or AS pan and available in Class III legal for trade versions. Capacities from 30 to 60 lbs or 15 to 30 kg.
Chatillon 8200 Series Mechanical Hanging Scales

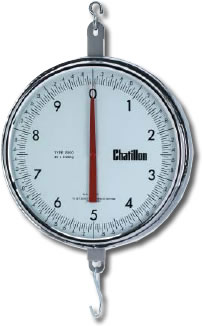

Chatillon 8200 Shown with Hook above
Chatillon 8200 Series Mechanical Hanging Scales

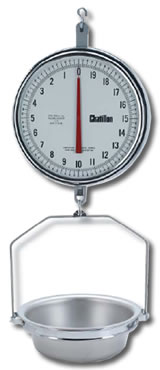

Chatillon 8200 Shown with AS Pan above

Chatillon 8200 Series Mechanical 13" Hanging Scales


Shipping weight: 45 lbs.

The Chatillon 8200 Series hanging scales are constructed of chrome-plated steel with machined stainless steel pinions and phosphor bronze rack combinations for low friction performance even at elevated temperatures. The standard double dial head reaches full capacity in three revolutions. Brass air dashpots eliminate pointer oscillation. Chatillon 8200 series Class III "Legal For Trade" hanging scales are sealable by local Weights & Measures jurisdictions for point of sale use. Tare up to 10% of the dial capacity.

  • H44 Classifications
    • Class III Legal for Trade (-T)
    • No Class (-S)
  • 13-inch Glass-covered Double Dial
  • Capacity Reached in 3 Pointer Revolutions
  • Adjustable Tare up to 10%
  • Optional Attachments
    • -AS Pan, Deep Round, Stainless Steel (14-1/2 x 5-inch) 4 lbs
    • -H Hook

Chatillon 8200 Series Hanging Scales - Class III "Legal for Trade"

Model No. Image Capacity Double Dial Attachment Price
8230DD-T-H Chatillon 8230DD-T-H 30 lb x 1/2 oz Yes Hook
8230DD-T-AS Chatillon 8230DD-T-AS 30 lb x 1/2 oz Yes AS Pan
8260DD-T-H Chatillon 8260DD-T-H 60 lb x 1 oz Yes Hook
8260DD-T-AS Chatillon 8260DD-T-AS 60 lb x 1 oz Yes AS Pan
K8215DD-T-H Chatillon K8215DD-T-H 15 kg x 20 g Yes Hook
K8215DD-T-AS Chatillon K8215DD-T-AS 15 kg x 20 g Yes AS Pan
