CAS RWP Wheel Weighing Digital Scale
|
For Dummy Plates and Ramps Call 1-800-832-0055
|

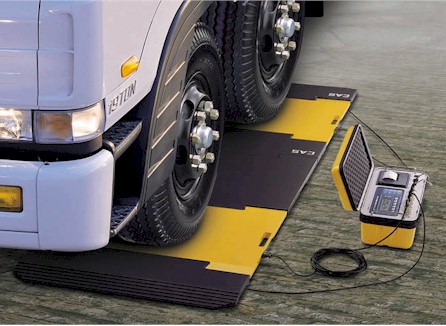

Convenient vehicle weighing platform ... This rugged cast aluminum weighing plate is light enough to accommodate portability yet large enough for any type of vehicle. The bright yellow industrial paint is baked on to the aluminum alloy chassis. CAS platforms not only look tough, they're built tough! With a variety of capacities and higher resolutions the CAS RW-P series wheel weighing scales can be used in almost any application.

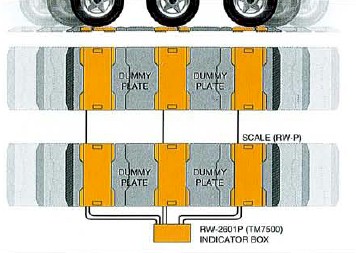

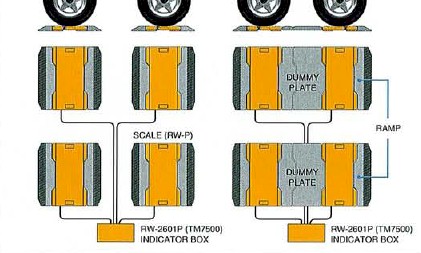

The CAS RW-P series wheel weighing scales can even accommodate for virtually any vehicles axle arrangement with the simple use of "dummy plates". These are simply solid rubber spacers of different sizes that can be placed between multiple platforms.
Optional RW-2601P indicator
- Rugged cast aluminum
- Designed specifically for portability
- Capacity up to 30000 lbs
- Quick and easy method of checkweighing to eliminate risk of overloading
- Lightweight, low profile -- only 1.5 inches high
- Connect up to 6 platforms when using the RW-2601P multi-platform indicator
- High accuracy
- By Wheel weight or Total weight
- Water resistant
- Advanced digital filtering to minimize vibration
- Test for axle balance and overload conditions
RW-2601P Multi-Platform Indicator:
- Built in clock
- One RS-232 serial port
- Built in charger and batteries
- 10 Vehicle number memories
- High speed dot matrix receipt printer
- Connect to a PC or remote display
- Connect up to 6 platforms simultaneously
- Completely self-contained portable unit
- Large, easy to read LCD display with back light
Model |
RW-10P |
RW-15P |
|
|
Price |
$2396.00
|
$2396.00
|
Capacity |
20000 lb 10000 kg |
30000 lb 15000 kg |
Minimum Division |
10 lb 5 kg |
20 lb 10 kg |
Accuracy |
0.1% |
Size |
35.4 x 19.7 x 1.5 inches |
Model |
RW-10P-BUNDLE |
RW-10P-KIT-2 |
RW-10P-KIT-4 |
RW-10P-KIT-6 |
|
|
|
|
Price |
$4691.00
|
$7087.00
|
$11879.00
|
$16671.00
|
Capacity x Readability |
1 x 20000 x 10 lb |
2 x 20000 x 10 lb |
4 x 20000 x 10 lb |
6 x 20000 x 10 lb |
Includes |
1 x CAS RW-10P Wheel Weighing Scale 1 x CAS RW-2601P Indicator |
2 x CAS RW-10P Wheel Weighing Scale 1 x CAS RW-2601P Indicator |
4 x CAS RW-10P Wheel Weighing Scale 1 x CAS RW-2601P Indicator |
6 x CAS RW-10P Wheel Weighing Scale 1 x CAS RW-2601P Indicator |
|
