The AND Weighing HC-I Series digital counting scales offer simple and easy operation with high performance counting function. With the AND Weighing HC-i series counting scale and its accessories you can easily build an inexpensive inventory control system. The AND HC-I counting scales are cost effective and will improve reliability by eliminating errors and unnecessary repetition during large volume counting jobs.
With the HC-i series and its accessories, you can easily build an inexpensive inventory control system. The HC-i series is cost effective and will improve reliability by eliminating errors and unnecessary repetition during large volume counting jobs.
|
|
- Unit Weight Entry Navigator: Simply follow the blinking lights to obtain the unit weight. The AND HC-I series is very user friendly! Select your preferred method for unit weight entry: sample size weighing, 10-key pad input or ID number data retrieval.
- AWA (Audible Weighing Assist) Beeping Function: The beeping function tells you that you have almost reached your target quantity. The unit begins to make a beeping sound at shorter intervals, making your counting job faster and easier.
- ACAI (Automatic Counting Accuracy Improvement): ACAI automatically corrects errors caused by variation in unit weights. This function provides greater counting accuracy.
 Detachable Display Unit: It is possible to put the display unit on a table or wall for diverse counting applications,. (Standard cable: 60cm, optional extension cable, HC-08i - 2 m)- Comparator Function: Can compare either the count or weight of pieces when the comparator function is activated, "HI", "OK" or "LO" is displayed
- Accumulation Function: Total piece calculation stored in memory. Works iin automatic or manual mode.
- ID Memory Function: Can memorize up to 99 unit weights with tare weight and comparator limits by ID numbers (ID 01 to ID 99)
- UFC (Universal Flex Coms): Can design your own printing format and easily print out the measurement data
 SLA (Sealed Lead Acid) Rechargeable Battery: Optional SLA battery (6V, 4Ah) has an approximate 80 hour battery life when fully charged.- Auto Power Off Function: Battery save function for SLA (Sealed Lead Acid). Switches OFF automatically if zer is displayed continuously for 5 minutes.
- Calibration Function: Simple and easy to calibrate with external standard mass by full digital calibration for accurate weighing.

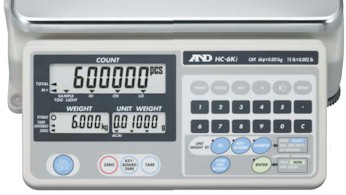

- Large LCD Display Showing Detailed Information: Displays piece counting weight, unit weight, ID number, comparison result by "HI", "OK" or "LO" and AC or battery power supply.
- Simple Operation Mode: By setting only the keys necessary for your operation, you can avoid making any unwanted operational mistakes. This mode is available for zero setting, tare weight cancel setting and sample counting setting.
- High Internal Resolution and Wide Counting Range: High internal resolution of 1/600,000 (HC-3Ki, HC-6Ki and HC-30Ki) or 1/750,000 (HC-15Ki) is enhanced for greater counting accuracy
- Easy Data Retrieval: It is easy for the user to instantly retrieve article data such as the ID number, unit weight, tare weight and comparator upper/lower limits without any difficulties. It helps to improve the effectiveness and reliability of the oepration. Especially effective for multi product lines.
- Large stainless steel weighing pan: Large articles can easily be placed on the weighing pan. The weighing pan is removable and easy to clean. (11.8 x 8.3 inches / 300 x 210 mm)
- Sealed Removable Keyboard
- Optional Barcode Label Printer AD-8125: Prints out a label detailing ID number, unit weight, weight and quantity. You can design your own labels with the UFC function.
- Optional Interface function RS-232C and Relay output
- 2 year manufacturer's warranty
Specifications Chart
| Model |
HC-3Ki |
HC-6Ki |
HC-15Ki |
HC-30Ki |
| Price |
$541.20
|
$541.20
|
$541.20
|
$541.20
|
| Capacity (lb) |
6 lb |
15 lb |
30 lb |
60 lb |
| Resolution (lb) |
0.001 lb |
0.002 lb |
0.005 lb |
0.01 lb |
| Capacity (kg) |
3 kg |
6 kg |
15 kg |
30 kg |
| Resolution (kg) |
0.0005 kg |
0.001 kg |
0.002 kg |
0.005 kg |
| Sample Size |
10 pieces normal -5, 25, 50, 100, or random number, user selectable |
| Min. Unit Weight* |
0.1g / 0.005 g |
0.2g / 0.01 g |
0.4g / 0.02 g |
1g / 0.05 g |
| Internal Resolution |
1 / 600,000 |
1 / 750,000 |
1 / 600,000 |
| Non-linearity |
±0.5 g |
±1 g |
±2 g |
±5 g |
| Repeatability |
0.5 g |
1 g |
2 g |
5 g |
| Span Drift |
0.002% / °C (5°C ~ 35°C) typ. |
| Operating Temp. |
-10°C to 40°C / 14°F to 104°F, 85%RH or lower (No condensation) |
| Display |
7 segment LCD, Character height: pcs 18.6mm, weight / unit weight 11.4mm |
| Display Update |
Approximately 10 times per second |
| Max. Count Display |
600,000 |
750,000 |
600,000 |
| Interface |
RS-232C (Option) |
| Power |
AC adapter or SLA Battery (Option) Battery Operating Time: Approx. 80-hour (without interface) |
| Platform Size |
11.8 x 8.3 inches / 300 x 210mm |
| Dimensions |
12.4(W) x 13(D) x 5(H) inches / 315(W) x 331(D) x 126(H) mm |
| Weight (approx.) |
10.6 lb / 4.8k g |
| Calibration Weight |
3 kg ±0.1g |
6 kg ±0.2g |
15 kg ±0.5g |
30 kg ±1g |
| Standard Accessories |
Instruction manual, AC adapter |
|
