The new A&D Weighing FG-K Series industrial bench scales combines fast weighing response time with accurate measurement to suit any weighing application.
- Easy to operate and clean
- One second response time
- Three weighing resolution
- AC or battery operation
- Full scale pushbutton tare
- NTEP models available
- Three Weighing Resolutions: Normal (1/3000), High (1/6000 for 30 kg & 60 kg weighing capacity) and higher resolution (1/12000 for 60 kg and 1/15000 for 30 kg and 150 kg weighing capacity).
- Counting Function: Useful in piece counting applications with sample size of 5, 10, 20, 50 and 100 pieces for unit weight registration.
|
|
- Comparator Function: HI / OK / LO comparator indication and optional relay output (FG-24) for checkweighing applications
- Calibration Function: Simple calibration with external calibration weight
- Auto Power Off function: Saves power consumption by automatically switching itself off when the scale displays zero for approximately 5 minutes
- Low Power Supply Indication: Alerts user to check AC power supply "L1" or batteries "Lb0"
- Filtering Function: Filtering levels of slow, normal and fast are selectable to suit environmental conditions
- Leveling Feet and Bubble: Easy to adjust the level of the scale for accurate weighing
- Optional RS-232C and Comparator Output: Easy to connect peripherals such as printer, comparator light and computer for weighing system applications.
- AC or battery operation
- Stainless steel weigh pan
- Selection of lb / kg via push button
- Full scale push button tare
- Easy to operate anywhere
- Rugged, heavy duty construction -- built to last
- 2 year manufacturer's warranty
- NTEP Approved, Class III Legal for Trade (non-NTEP high resolution models available, see below)
Specifications Cart
View Legal for Trade Models
| Model |
FG-30KBM |
FG-60KBM |
FG-150KBM |
FG-30KAM |
FG-60KAM |
FG-150KAM |
FG-60KAL |
FG-150KAL |
FG-200KAL |
 |
 |
 |
| Price |
 |
|
|
|
|
|
|
|
|
| Capacity X Readability |
60 x 0.005 lb |
150 x 0.01 lb |
300 x 0.02 lb |
60 x 0.005 lb |
150 x 0.01 lb |
300 x 0.02 lb |
150 x 0.01 lb |
300 x 0.02 lb |
400 x 0.02 lb |
| 30 x 0.002 kg |
60 x 0.005 kg |
150 x 0.01 kg |
30 x 0.002 kg |
60 x 0.005 kg |
150 x 0.01 kg |
60 x 0.005 kg |
150 x 0.01 kg |
200 x 0.01 kg |
| 960 x 0.1 oz |
2400 x 0.2 oz |
4800 x 0.5 oz |
960 x 0.1 oz |
2400 x 0.2 oz |
4800 x 0.5 oz |
2400 x 0.2 oz |
4800 x 0.5 oz |
6400 x 0.5 oz |
| No. of samples |
5 (can be changed to 10, 20, 50 or 100 ) pieces |
| Max. counts |
120,000 pcs |
96,000 pcs |
120,000 pcs |
120,000 pcs |
96,000 pcs |
120,000 pcs |
96,000 pcs |
120,000 pcs |
160,000 pcs |
| Min. unit weight |
0.25 g |
0.625 g |
1.25 g |
0.25 g |
0.625 g |
1.25 g |
0.625 g |
1.25 g |
1.25 g |
Repeatability
(Std. deviation) |
0.05 kg |
0.01 kg |
0.02 kg |
0.05 kg |
0.01 kg |
0.02 kg |
0.01 kg |
0.02 kg |
0.02 kg |
| Linearity error |
0.01 kg |
0.02 kg |
0.05 kg |
0.01 kg |
0.02 kg |
0.05 kg |
0.02 kg |
0.05 kg |
0.05 kg |
| Sensitivity drift |
20 ppm /C (10 oC~30 oC / 50 oF~86 oF) |
| Display |
7 segment LCD display (Character height 26 mm) |
| Display update |
10 times per second |
| Operating temp |
?10 oC~40 oC / 14 oF~104 oF, less than 85% RH (no condensation) |
| Power supply |
AC adapter or C size (R14P / LR14) x 4 batteries |
| Battery operating |
Approximately 150 hours with alkaline dry cell battery |

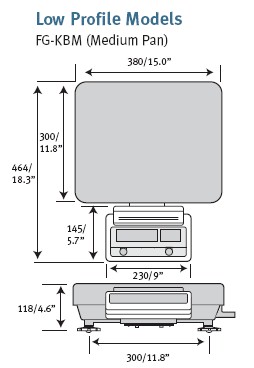

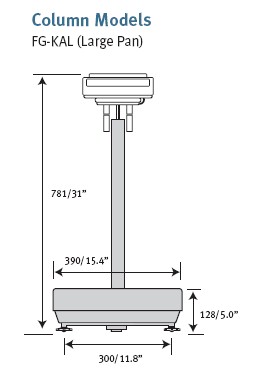

| Weighing pan size |
300 x 380 mm / 11.8 x 15.0 inches |
390 x 530 mm / 15.4 x 20.9 inches |
| Dimension |
380(W) x 464(D) x 118(H)mm |
300(W) x 624(D) x 781(H)mm |
390(W) x 771(D) x 781(H) mm |
| Weight |
9.7 kg |
11.2 kg |
16.4 kg |
Calibration weight
(Factory setting) |
30 kg / 60 lb |
60 kg / 150 lb |
150 kg / 300 lb |
30 kg / 60 lb |
60 kg / 150 lb |
150 kg / 300 lb |
60 kg / 150 lb |
150 kg / 300 lb |
200 kg/400 lb |
Legal for Trade Models
| Legal for Trade |
FG-30KBMN
| FG-60KBMN
| FG-150KBMN
| FG-30KAMN
| FG-60KAMN
| FG-150KAMN
| FG-60KALN
| FG-150KALN
| FG-200KALN
|
|
|
|
NTEP (CC No. 05-101)
Measurement Canada (Approval No. AM-5627) |
| Price |
 |
|
|
|
|
|
|
|
|
| Capacity X Readability |
60 x 0.02 lb |
150 x 0.05 lb |
300 x 0.1 lb |
60 x 0.02 lb |
150 x 0.05 lb |
300 x 0.1 lb |
150 x 0.05 lb |
300 x 0.1 lb |
400 x 0.1 lb |
| 30 x 0.01 kg |
60 x 0.02 kg |
150 x 0.05 kg |
30 x 0.01 kg |
60 x 0.02 kg |
150 x 0.05 kg |
60 x 0.02 kg |
150 x 0.05 kg |
200 x 0.05 kg |
| 960 x 0.5 oz |
2400 x 1 oz |
4800 x 2 oz |
960 x 0.5 oz |
2400 x 1 oz |
4800 x 2 oz |
2400 x 1 oz |
4800 x 2 oz |
6400 x 2 oz |
| No. of samples |
5 (can be changed to 10, 20, 50 or 100 ) pieces |
| Max. counts |
120,000 pcs |
96,000 pcs |
120,000 pcs |
120,000 pcs |
96,000 pcs |
120,000 pcs |
96,000 pcs |
120,000 pcs |
160,000 pcs |
| Min. unit weight |
0.25 g |
0.625 g |
1.25 g |
0.25 g |
0.625 g |
1.25 g |
0.625 g |
1.25 g |
1.25 g |
Repeatability
(Std. deviation) |
0.05 kg |
0.01 kg |
0.02 kg |
0.05 kg |
0.01 kg |
0.02 kg |
0.01 kg |
0.02 kg |
0.02 kg |
| Linearity error |
0.01 kg |
0.02 kg |
0.05 kg |
0.01 kg |
0.02 kg |
0.05 kg |
0.02 kg |
0.05 kg |
0.05 kg |
| Sensitivity drift |
20 ppm /C (10 oC~30 oC / 50 oF~86 oF) |
| Display |
7 segment LCD display (Character height 26 mm) |
| Display update |
10 times per second |
| Operating temp |
?10 oC~40 oC / 14 oF~104 oF, less than 85% RH (no condensation) |
| Power supply |
AC adapter or C size (R14P / LR14) x 4 batteries |
| Battery operating |
Approximately 150 hours with alkaline dry cell battery |
| Weighing pan size |
300 x 380 mm / 11.8 x 15.0 inches |
390 x 530 mm / 15.4 x 20.9 inches |
| Dimension |
380(W) x 464(D) x 118(H)mm |
300(W) x 624(D) x 781(H)mm |
390(W) x 771(D) x 781(H) mm |
| Weight |
9.7 kg |
11.2 kg |
16.4 kg |
Calibration weight
(Factory setting) |
30 kg / 60 lb |
60 kg / 150 lb |
150 kg / 300 lb |
30 kg / 60 lb |
60 kg / 150 lb |
150 kg / 300 lb |
60 kg / 150 lb |
150 kg / 300 lb |
200 kg/400 lb |
* Factory setting

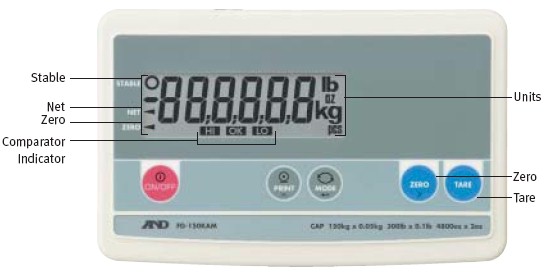

Display Features:

|
