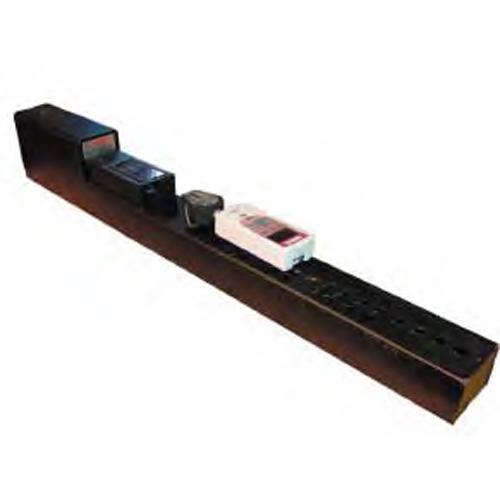

Chatillon TT Pneumatic Actuated Universal Tester

The Chatillon TT-series test stand is a pneumatically-operated instrument for measuring breaking strength of electrical leads, terminals, connectors, wire wraps, etc. It is ideal for areas where intrinsic safety is required.

The Chatillon TT pneumatic test stand is capable of either tensile or compression testing. The rapid test speed makes it ideal for production line testing, incoming inspection testing or the research and developement laboratory. The tester has a 6" (15 cm) test stroke and a hydro-check valve adjustment for controlling ram speeds as low as 0.1 inch per minute. The test stand meets MIL-T-7928 (ASG) requirements for crimped, solderless lugs. This test stand also feasures an automatic retracting steel jaw.

The Chatillon TT Test stand operates using clean, dry air with maximum air pressure up to 160 PSIG (121.2 bar).

Capacity: Up to 500 lb (2.5 kN)

• Easy to use, rugged construction
• Meets MIL-T-7928 (ASG) requirements
• 6" (15cm) stroke
• Precise ram speed control
• Independant return stroke speed
• Automatic retracting steel jaw
• Intrinsically safe
• Maintenance free design
• 1 Year Manufacture Warranty

Specifications:

	ML3317
Price	$6589.00
Capacity	500 lbf, 2.5 kN
Actuator	Hand-operated
Sample Size	Up to 15 inch (380mm) 7/32 OD
Crosshead Speed	6 in/min

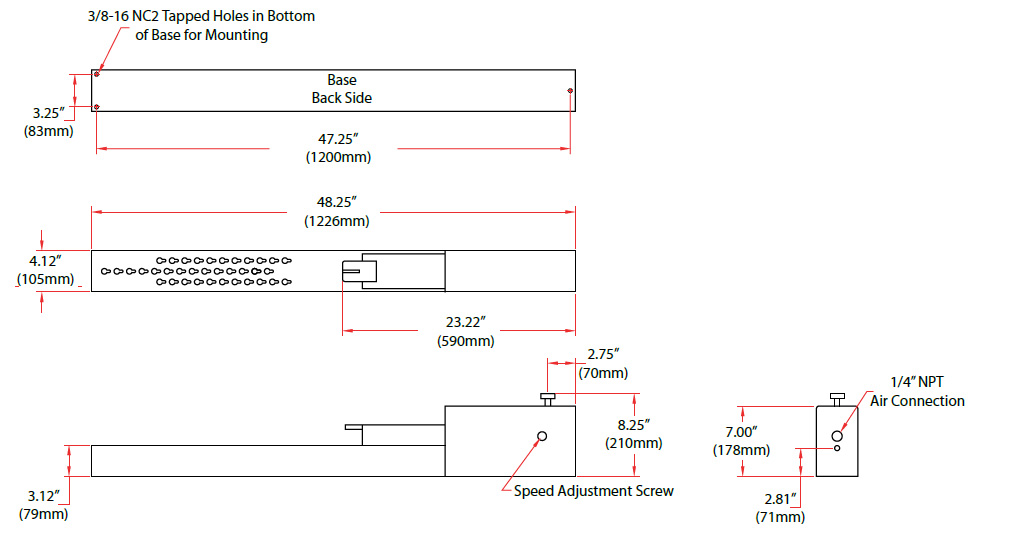

Travel	6 inches (152mm) Jaw Opens:7/32 inch (5.6mm) Jaw Closes:1/2 inch (12mm)
Load Measurement	Chatillon DF Gauges / DF-II Gauges
Air Motor	For 225 lbf (1 kN): Requires 60 psi (4.2 bar) For 550 lbf (2.5 kN):Requires 125 psi (8.7 bar)
Operating Temperature	40oF to 110oF 5oC to 45oC
Instrument Weight	50 lbs (25 kg)
Shipping Weight	65 lbs (30 kg)
