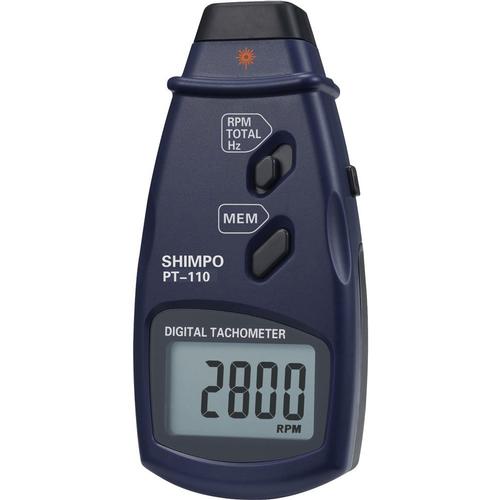

Shimpo PT-110 Non-Contact Laser Tachometer |
|
| PT-110 is a simple model to use, ergonomic, rugged test instrument that operates with optical laser technology. This velocity analyzing and measuring device is ideal for rotational machine inspection and process speed analysis. The PT-110 possesses a large backlit LCD screen that provides clear viewing in any environment. more ... |
|
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features
PT-110 is a simple model to use, ergonomic, rugged test instrument that operates with optical laser technology. This velocity analyzing and measuring device is ideal for rotational machine inspection and process speed analysis. The PT-110 possesses a large backlit LCD screen that provides clear viewing in any environment. Users can obtain results in either Hertz or RPM, as well as Total counts with the simple selection switch. During testing, the unit automatically saves maximum, minimum, last recorded values and up to 96 logged data readings. The compact, lightweight PT-110 Tachometer comes standard with reflective tape, 3 AAA batteries and protective carrying case.
FEATURES
- Measures RPM, Hz or Total by simple adjusting selector switch
- Lightweight, ergonomic design allows comfortable long term usage
- Large, backlit LCD for easy viewing in both bright and dim environments
- Automatically records Maximum, Minimum, Last Value as well as up to 96 data points during testing quickly review after testing by pushing the MEM button
- Laser operation shows point of measurement for easy aiming on equipment
| Range |
2.5~99999 RPM; 0.05 ~ 1666 Hz; 1 ~ 99999 Count |
| Display |
5 digit, 0.7” (18 mm) LCD |
| Resolution |
0.1 RPM (2.5 ~ 999.9 RPM)
1 RPM (above 1000 RPM)
0.01 Hz (0.05 ~ 99.99 Hz)
0.1 Hz (above 100 Hz) |
| Accuracy |
+/-0.05% of Reading +/-1 LSD |
| Sampling Time |
0.8 second (over 60 RPM) |
| Detection |
Laser |
| Measuring Distance |
2-20? (50-500 mm) |
| Memory |
Automatically stores Maximum (UP), Minimum (dn), last value (LA) and up to 96 readings for review.Maximum speed for reading storage is every 0.8 seconds |
| Power |
3 x 1.5V AAA battery |
| Enclosure |
ABS plastic housing |
| Dimensions |
6.1” x 2.8” x 1.4” (155 x 70 x 35 mm) |
| Certifications |
CE |
| Included Accessories |
3 AAA batteries, protective carrying case, reflective tape |
Weight:
1.00 lb
|
1 Year Manufacture Warranty
|
