Features

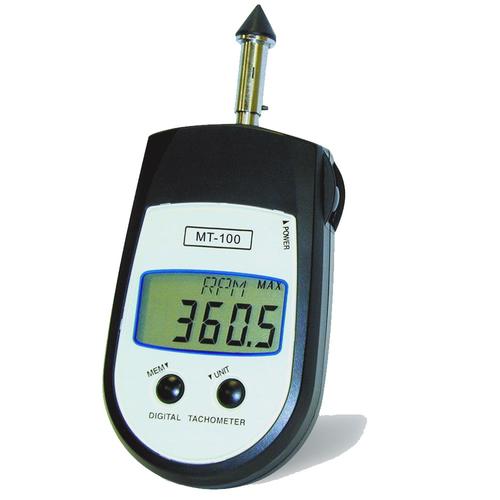

The MT-100 Contact Pocket Tachometer with microprocessor technology possesses the precision of the standard SHIMPO Tachometer line, yet within a compact, pocket-style enclosure. The MT-100 provides users with the capabilities of measuring and recording speeds of rotational, linear and surface plus total length. These battery-operated tachometers feature the same rugged, high quality components that have made SHIMPO tachometers the benchmark in the industry. The user-friendly, value-packed units feature memory storage; quick selection unit’s button; length functions; retrieval of last, maximum and minimum values; plus each unit comes standard with a free N.I.S.T. calibration certificate. Each unit ships in a protective carrying case which includes a cone adapter, funnel adapter and 6” circumference wheel.
FEATURES
- Multiple measurement types: total revolutions (rev); revolutions per minute (rpm); surface speed: m/min, y/min, in/min, ft/min; and length: meters, yards, feet and inches
- Compact, pocket-size design fits easily in the palm of the hand
- Memory automatically stores minimum, maximum and last. Plus, 10 user stored readings of the process can also be recorded
- Long battery-life enables continuous operation
- Instant conversion of units
- Low battery and over range indication
- NIST calibration certificate included with every unit
| Display Range |
Revolutions: 1.0 – 25,000 RPM , 0.1 – 99,999 Rev. (total)
Speed Using 6” Cir. Wheel: meters/min: 0.1 – 3,809.8; yards/min: 1.0 – 4,166.4; inch/min: 3 – 99,999; feet/min: 0.2 – 12,499
Length Using 6” Cir. Wheel: meters: 0.01 – 99,999; yards: 0.01 – 99,999; feet: 0.1 – 99,999; inch: 1 – 99,999 |
| Accuracy |
Revolution: 1.0 – 599.9 rpm: ±1 rpm, 600 – 25,000 rpm: ±0.006% ±0.5 digit
Surface Speed, Length: ±0.4% ±1 digit |
| Display |
5 digit 0.47” (12 mm) high LCD |
| Memory System |
Readings are stored in memory and retained for 5 minutes (last, max., min., and 10 user logged measurements) |
| Detection |
Optical coupler, 20 pulses/rev. |
| Update Time |
1 second (typical) |
| Over Range Indicator |
Flashing numerals |
| Power Requirement |
3 AA 1.5V batteries |
| Operating Temperature |
32° – 113°F (0° – 45°C) |
| Construction |
ABS Resin housing |
| Dimensions |
4.83”L x 2.52”W x 1.24”H (122.5 mm x 64 mm x 31.5 mm) |
| Included Accessories |
Three AA Batteries, cone adapter, funnel adapter, master wheel (6” cir.) carrying case, NIST certificate |
Weight:
1.00 lb
|
|
