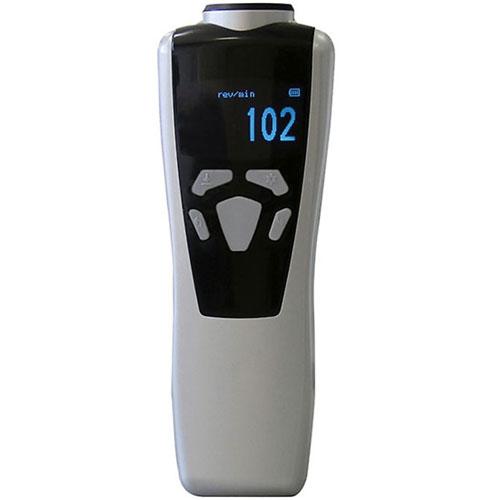

The all new Shimpo DT-2100 is a highly advanced combination contact / non-contact hand-held tachometer. The DT-2100 offers data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a blue backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode. Additional display modes unique to the DT-2100 is the "Needle Sweep" and Bar Graph" offers the user a choice of how to view the data. The display can also be inverted to optimize the viewing angle.
In non-contact mode the tachometer measures RPM up to 99,999 RPM at distances up to 13 feet or 500 cm. The DT-2100 can also measure contact RPM, surface speed, or length using the supplied screw-on adapter.
Data logging can be set for single point or continuous logging. Single data points as well as statistics (Max, Min, Average) can be stored in the built-in memory and recalled to the display. Often users need to adjust machinery during testing, with the DT-2100 you can mount it on a tripod, select continuous logging and adjust machinery as necessary. After the test, you can easily review the data on the DT-2100s display or download to a computer using the optional PC Software.

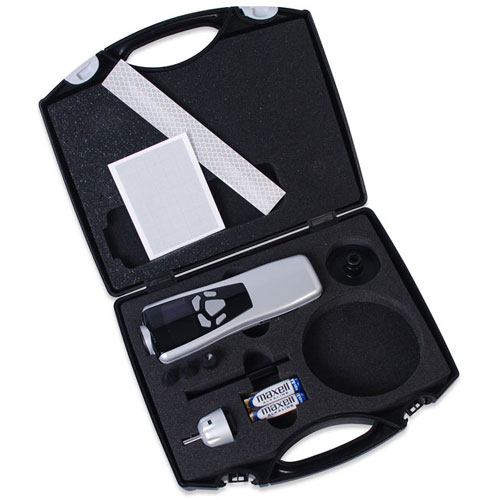

The DT-2100 is supplied as a complete kit with 2 cone tip adapters, funnel tip adapter, shaft extension, 6 inch circumference surface speed wheel, reflective tape, 2 AA batteries ... all supplied in a foam-fitted carrying case. An NIST-Traceable Calibration Certification is optionally available.
- Data Logging with Continous, Single Unit or Statistics modes
- View data and statistics on tachometer display or with optional Windows software
- Built-in Memory with USB Data Output
- Powerful laser for non-contact measurement 2” to 13.1’ (5 to 400 cm)
- Non-Contact length measuring mode (requires reflective tape or edge of roller)
- Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc...
- On-screen hi-lo limits for pass/fail analysis
- Auto-detection of contact adapter
- Reversible Display
- 1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod
||6-99,999 rpm Non-contact
0.8-25,000 rpm Contact
||±0.006% of reading ±1 least significant digit
||Speed: rpm, m/min, cm/min, inch/min, ft/min, yds/min, rps, m/sec, cm/sec, inch/sec, km/hr, mph
Distance: cm, m, km, in, ft, yd
||Continuous Mode: 1000
Single Mode: 100
Statistics Mode: 100
|Laser Sensing Distance
||2 inces up to 13.1 Feet (5 to 400 cm)
||Graphical Blue Light OLED, reversible
|Display Update Time
||Selectable: 100 ms, 500 ms, 1 sec, 5 sec
||2 AA 1.5V batteries or USB
||Approx: 20 hours with brightness set to 20%
||32º - 113ºF (0º - 45ºC) Non-Condensing
||6.1” x 2.2” x 1.4” (155 x 55 x 35 mm)
||4.14 oz (125 g)

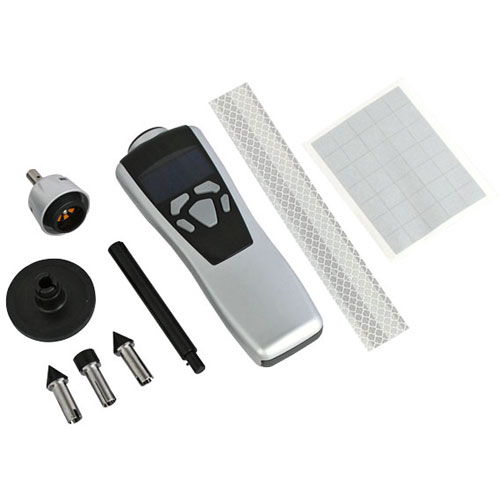

||2 cone adapters, funnel adapter, 3½” extension shaft, surface speed wheel (6” circumference), 2 AA batteries, contact adapter and carrying case
