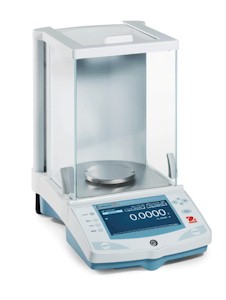

![Ohaus Explorer Pro Analytical Plus]](images/ohaus_explorer_pro_an.jpg)
| Model Number: | EP213 | EP413 | EP613 | EP612 | EP2102 | EP4102 | EP6102 | EP4101 | EP6101 | EP8101 | EP12001 | EP22001 | EP32001 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Capacity (*draft shield included) | *210 g | *410 g | *610 | 610 g | 2100 g | 4100 g | 6100 | 4100 g | 6100 g | 8100 g | 12000 | 22000 | 32000 |
| Readability (g) | 0.001 | 0.001 | 0.01 | 0.01 | 0.01 | 0.01 g | 0.1 | ||||||
| Price | $2500.00 |
$2722.22 |
$3000.00 |
$2200.00 |
$2500.00 |
$2722.22 |
$3000.00 |
$2500.00 |
$2555.56 |
$2300.00 |
$3707.89 |
$4026.17 |
$4237.72 |
| Model with AutoCal: | EP213C | EP413C | EP613C | EP612C | EP2102C | EP4102C | EP6102C | EP4101C | EP6101C | EP8101C | EP12001C | EP22001C | EP32001C |
| Price with AutoCal | $2555.56 |
$2777.78 |
$3055.56 |
$2500.00 |
$2555.56 |
$2777.78 |
$3055.56 |
$2555.56 |
$2611.11 |
$2550.00 |
$4026.17 |
$4301.94 |
$4514.44 |
| Legal-For-Trade Model: |
EP213N | EP413N | - | EP612N | EP2102N | EP4102N | EP6102N | EP4101N | EP6101N | EP8101N | - | - | - |
| $2350.00 |
$2833.33 |
- | $2300.00 |
$2350.00 |
$2833.33 |
$2350.00 |
$2400.00 |
$2600.00 |
- | - | - | ||
| Legal-For-Trade & AutoCal Model: |
EP213CN | EP413CN | EP613CN | EP612CN | EP2102CN | EP4102CN | EP6102CN | EP4101CN | EP6101CN | EP8101CN | - | - | - |
| $2400.00 |
$2888.89 |
$2850.00 |
$2350.00 |
$2400.00 |
$2888.89 |
$2850.00 |
$2400.00 |
$2450.00 |
$2650.00 |
- | - | - | |
| Repeatability (std dev) (g) | 0.0005 | 0.0005 | 0.005 | 0.05 | 0.1 | ||||||||
| Linearity (g) | ± 0.002 g | ±0.002 | ±0.02 | ±0.04 | ±0.1 | ±0.4 | |||||||
| Weighing Modes | gram, kilogram, pound, ounce, troy ounce, carat, pennyweight, Hong Kong Tael, Singapore Tael, Taiwan Tael, mommes, grain, tical, Newton, custom | ||||||||||||
| Application Modes | weighing, parts counting, animal/dynamic weighing, checkweighing, percent weighing, filling, gross/net/tare weighing | weighing, parts counting, filling, animal weighing, checkweighing, differential weighing, formulation, quick check, statistics | |||||||||||
| Features | RS232 port, auxiliary display port, GLP protocol, selectable language display text, selectable displayed information settings, selectable environmental filters, selectable auto-print settings, integral weigh below hook, contrast & brightness control, protective in-use cover | RS232 port, auxiliary display port, GLP protocol, selectable environmental settings, selectable auto-print settings, weigh below hook, contrast & brightness control, protective in-use cover | |||||||||||
| Tare Range | full capacity by subtraction | ||||||||||||
| Stabilization Time | 3 seconds | 4 seconds | |||||||||||
| Operating Temperature | 50° to 86°F / 10° to 30° C without internal calibration / 50° to 104°F / 10° to 40° C with internal calibration | ||||||||||||
| Calibration | External / Internal | ||||||||||||
| Display | High Resolution LCD Dot Matrix with back light | ||||||||||||
| Power Requirements | 100-120 V ac, 220-240 V ac, 50/60 Hz | ||||||||||||
| Pan Size (in/cm) | 4.7" (12 cm) diameter | 6.8" x 6.8" (17.2 x 17.2 cm) with windshield | 8" x 8" (20.3 x 20.3 cm) | 11" x 14" (28 x 35.6 cm) av | |||||||||
| Dimensions (W x H x D) | 8.3" x 13.8" x 13.8" (21 x 35 x 35 cm) |
8.5" x 4" x 13.8" (21.5 x 10.3 x 35 cm) |
14" x 5.5 " x 17.5" (36 x 14 x 44.5 cm) |
||||||||||
| Net Weight | 13.2 lb (6 kg) | 11 lb (5 kg) | 27 lb (12.3 kg) | ||||||||||
| Model Number: | EP213 | EP413 | EP613 | EP612 | EP2102 | EP4102 | EP6102 | EP4101 | EP6101 | EP8101 | EP12001 | EP22001 | EP32001 |
| Type | Explorer Pro Precision | Explorer Pro High Capacity | |||||||||||

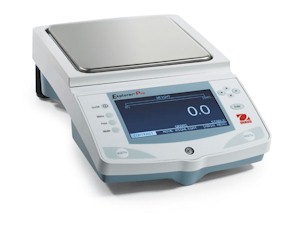

Explorer Pro Precision Features
The Explorer Pro Series features 12 precision toploader models with capacities up to 8100 gram and readabilities to 0.1 g for exceptional accuracy. The rugged design and versatility make the Explorer Pro ideal for applications in pharmaceutical, chemical, research and quality control and University research.
Explorer Pro precision balances are available with NTEP Legal for Trade certification (contact us for details)
- Dynamic / Animal Weighing
Dynamic weighing allows the user to weigh unstable matter that may be moving. This mode can be set to manual, semi-automatic or automatic; the displayed data includes filtered weight and unfiltered weight. Displayed data also includes filter level, capacity bar graph and operation mode (manual, semi or auto). - Parts Counting
Enhanced parts counting features include auto sample optimization, user definable sample size and manual entry using scroll keys. The "Parts Counting Check" feature allows for quickly checking a sample of pieces against a preset criteria, with results displayed as the number of pieces. The "Parts Counting Fill" feature allows for quickly checking a sample of pieces against an established criteria, with results displayed as a percentage of the preset target.

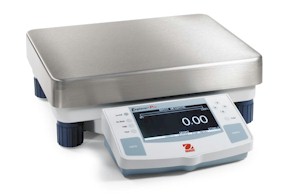

Explorer Pro High Capacity Features
The Explorer Pro Series features 3 high capacity precision toploader models with capacities up to 32,000 grams and readabilities up to 0.1 grams. The extra large 11" x 14" platform is ideal for laboratory and industrial applications in concrete/asphalt production, agriculture and quality control. Explorer High Capacity has been upgraded with Check and Differential Weighing, Statistical Functions, Formulation and Filling.
- Filling
Filling permits the user to preset a target reference weight, then add material to the balance to meet the target weight. The display shows the preset target weight and the percentage of the target by monitoring the differential data, the fill bar is split in two sections for fast filling up to 90%, then slower accurate fill to reach target (100%) weight. - Checkweighing
Checkweighing is used when items need to be checked against a preset target, after the target weight is set, and over/under parameters are established. Checkweighing is measured as a factor of over the target, under the target or accept. The display automatically shows the difference in percent and weight.
Ohaus
is introduces its newest compact impact printer, the SF42. Coupled with
an Ohaus balance featuring GLP functions such as the MB45, Explorer and
Navigator, the SF42 is the economical choice for providing a fully documented
audit trail. Audit trails required to meet today’s most stringent
standards for quality and verification.
- Compact design
- Quick and easy setup
- Ink ribbon prevents fading
- Self test mode assures proper functionality
- Compatible with Ohaus balances equipped with RS232 interface
General Specifications:
- Interface: Serial (RS232 Compatible)
- Printer Method: Impact Dot Matrix (Inked Ribbon)
- Character Format: 5 x 7 Dot Matrix
- Character Dimension: (in/cm) 0.04 x 0.10 / .11 x .26
- Character Density: 42 Characters per line
- Printing Speed: 40 lines per minute
- Paper Width: (in/cm) 2.25/5.7
- Power Adapter: AC adapter (110/120, 220/240 VAC) 50/60Hz
- Power: 9 V dc, 600mA, (center pin positive)
- Operating Temp. 32°to 104F°/0°C to 40°C
- Dimensions (W x H x D) (in/cm): 4 x 3.7 x 7.3 / 10.4 x 9.6 x 18.6
- Weight (lb/kg) 1.3 / 0.59 (without internal paper roll)
Interface Specifications:
- Connector: 25 Pin D type (Female)
- Baud Rate: Selectable (1200, 2400, 4800, 9600)
- Data Bit: 7 or 8
- Parity: Even, odd or none
- Stop Bit: Auto select
