Imada ML-275 Horizontal Motorized Test Stands

ML-275 motorized test stands offer basic force testing. Combination of screw system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range. Speed control, quick return and emergency stop are standard features.

ML-275 without distance meter ML-275S with distance meter Maximum load 275 lbf

Imada ML-275 Horizontal Motorized Test Stands ML-275 $3,570.00 ML-275-S $4,340.00 Force gauge and attachments are sold separately

ML-275 motorized test stands offer basic force testing. Combination of screw system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

• Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
• One stand for both compression (push) and tension (pull) tests
• Wide speed range: 0.3 – 7 in/min (optional speed ranges available)
• Stroke 9.5"
• No programming required
• Optional digital distance meter and Speed Configurations

Speed control, quick return and emergency stop are standard features. The ML-275 accepts any of the standard range Imada force gauges.

AP-002 Adapter Plate is available to mount most other force gauges to IMADA test stands

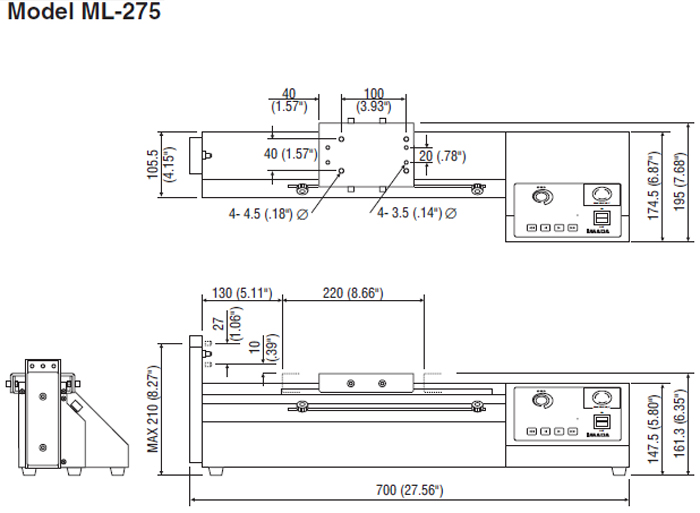

Dimensions
