Sartorius Micro Balances and Ultra Micro Balances
Sartorius Scales >> Lab
Scales
Click here for larger pictures
|
|
|
Features | Specs | Accessories
Sartorius Micro. Premium Micro- and Ultra-microbalances -- Maximum precision for minimum sample quantities.
Uncompromising weighing technology is the No. 1 priority. Incomparably fast response and display of weighing results and exceptional repeatability meet the very highest demands on accurate weighing. These results unconditionally measure up to the strictest requirements of both legal regulations and quality management systems.
- Astonishingly fast response times with only 10-second stabilization time needed
- Self-teaching, all-glass draft shield for ergonomic handling of the smallest sample quantities
- Complete functionality for use as measuring and test equipment, with fully automatic calibration and adjustment function, isoCAL; the SQmin function for displaying the minimum allowable sample quantity according to the USP; and S.U.R.E. display of the uncertainty of measurement to comply with stringent accuracy standards, such as DKD (German Calibration Service)
- 14 built-in application programs as standard features, such as EUREKA program for air buoyancy correction, Differential weighing program for up to 999 samples, Statistical evaluation. All balance-generated data can be logged via the standard RS-232C interface port
- Models ME5-F and SE2-F for weighing filters of up to 90 mm in diameter. The draft shield specifically constructed for this application is made completely of metal, thereby minimizing the interfering effects of static electricity
Specifications:
| Model |
Image |
Capacity X Readability |
Reproducibility (+/-) |
Linearity (+/-) |
Pan size |
Price |
Features:
Sartorius ME-36 Premium Micro Balance
| Weighing capacity |
31 g |
| Readability |
0.001 mg (0.000001 grams) |
| Pan size |
Ø 30 mm / 1.2" |
| Calibration |
internal |
|
This new ME36S microbalance features an exceptionally high weighing capacity of 31g and a readability of 1µg. The ME36S is designed for weighing the smallest sample quantities even in relatively heavy or bulky sample containers. The separate installation of weighing unit and display and/or electronic unit not only reduces thermal disturbances, but also delivers absolutely reliable weighing results. By virtue of its unique design, the ME36S display and weighing units are close enough for ideal operating convenience, with optimal spacing for ergonomic handling of microscopic sample quantities.
The most important performance features of the ME36S:
- Flexible draft shield system with three independently motorized draft shield elements for fully automatic, intuitive operating at the press of a key.
- Large, palm-activated keys with an intelligent learning function for user-friendly operation of the draft shield
- Backlit, graphical display for consistently bright weight readouts.
- Text prompts in plain English (and your choice of other languages) guide you quickly and confidently in configuring the balance.
- The SQmin function displays the minimum allowable sample weight in accordance with the United States Pharmacopeia (can be activated by Sartorius Service)
- S.U.R.E. function for dynamic display of the uncertainty of measurement and process accuracy in accordance with German Calibration Service (DKD) standards for continuous monitoring during all weighing routines (this function is activated by Sartorius Service)
- isoCAL: fully automatic calibration/adjustment function with memory for calibration records
- ISO|GLP-compliant, user-configurable records
- Input capability for alphanumeric sample Ids
- 14 built-in application programs as standard features, such as differential weighing program for up to 999 samples, statistical evaluation, calculation of weights using a definable factor or equation, air density determination.
- Bidirectional RS-232C data interface and additional interface for Sartorius data printer.
|

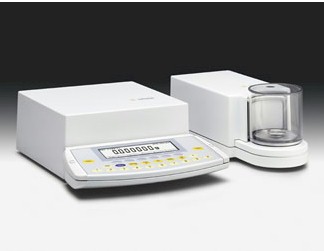

Sartorius ME-5 Micro Balance
- Outstanding weighing technology featuring exceptionally fast response times
- Round motorized glass draft shield
- Draft shield operation with learning function activated by user-friendly draft shield keys
- Ideal for use as measuring and test equipment in quality management systems
- SQmin function for displaying the minimum sample quantity according to the US Pharmacopeia
- New S.U.R.E. function for dynamic display of the uncertainty of measurement according to the DKD Calibration Certificate
- Fully automatic calibration | adjustment function, isoCAL
- Backlit graphical display with plain text prompts and info on all settings
- Highly resiliant membrane keypad overlapped with "bubble shaped" keys
- Complete package of applications is standard
- RS-232C port plus additional Sartorius printer port
|
| Weighing capacity |
5.1 g |
| Readability |
0.001 mg (0.000001 grams) |
| Verifiable for legal metrology |
No |
| Pan size |
Ø 30 mm / 1.2" |
| Response time |
~ 10 s |
| Data interface |
RS232 |
| Battery-operable |
Yes |
| Calibration |
automatic, built-in weight |
| GLP/GMP Printouts |
Yes |
| Weighing Modes |
Carats, grains, milligrams, pounds, ounces, pennyweigh, grams, troy ounces, kilograms |
| Built-in programs |
Toggle weight units, counting, weighing in percent, animal weighing, recalculation, calculation, density determination, differential weighing, air buoyancy correction, air density determination, checkweighing, time-controlled functions, totalizing, formulation, statistics, 2nd tare memory, identification codes ,product data memory |
| Miscellaneous |
motorized draft shield and user-programmable aperture angle, self-calibrating function isoCAL (activated at exact temperature or time intervals), removable draft shield |
|
Sartorius ME-5F Micro Balance (filter version)
- Applications: Determination of the particulate matter residue of diesel fuels, soot development in incineration plants, pollution of the atmosphere with nanoparticles
- Special draft shield for weighing filters up to 90 mm diameter
- Manually operable draft shield cover
- Draft shield easy to convert for left and right handed persons
- Optional reduction of the effects of electrostatic charges
- Standard-equipped with 50 mm Ø90 diameter filter pans
- Options: Ø75 and Ø90 mm diameter filter pans
|
| Weighing capacity |
5.1 g |
| Readability |
0.001 mg (0.000001 grams) |
| Verifiable for legal metrology |
No |
| Pan size |
Ø 50 oder/or 30 mm / 1.2" |
| Response time |
~ 10 s |
| Data interface |
RS232 |
| Battery-operable |
Yes |
| Calibration |
automatic, built-in weight |
| GLP/GMP Printouts |
Yes |
| Weighing Modes |
Carats, grains, milligrams, ounces pennyweight, grams, troy ounces |
| Built-in programs |
Toggle weight units, counting, weighing in percent, animal weighing, recalculation, calculation, density determination, differential weighing, air buoyancy correction, air density determination, checkweighing, time-controlled functions, totalizing, formulation, statistics, 2nd tare memory, identification codes ,product data memory |
| Miscellaneous |
self-calibrating function isoCAL (activated at exact temperature or time intervals), version for filter weighing up to 50 mm Ø (optional up to 90 mm Ø) |
|

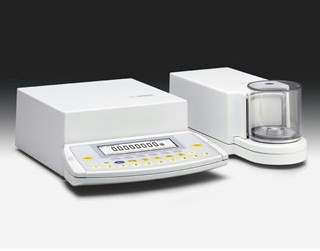

Sartorius SE-2 Micro Balance
- Outstanding weighing technology featuring exceptionally fast response times
- Round motorized glass draft shield
- Draft shield operation with learning function activated by user-friendly draft shield keys
- Ideal for use as measuring and test equipment in quality management systems
- SQmin function for displaying the minimum sample quantity according to the US Pharmacopeia
- New S.U.R.E. function for dynamic display of the uncertainty of measurement according to the DKD Calibration Certificate
- Fully automatic calibration | adjustment function, isoCAL
- Backlit graphical display with plain text prompts and info on all settings
- Highly resiliant membrane keypad overlapped with "bubble shaped" keys
- Complete package of applications is standard
- RS-232C port plus additional Sartorius printer port
|
| Weighing capacity |
2.1 g |
| Readability |
0.0001 mg (0.0000001 grams) |
| Verifiable for legal metrology |
No |
| Pan size |
Ø 20 mm / 0.8" |
| Response time |
~ 10 s |
| Data interface |
RS232 |
| Battery-operable |
Yes |
| Calibration |
automatic, built-in weight |
| GLP/GMP Printouts |
Yes |
| Weighing Modes |
Carats, grains, milligrams, pounds, ounces, pennyweight, grams, troy ounces, kilograms |
| Built-in programs |
Toggle weight units, counting, weighing in percent, animal weighing, recalculation, calculation, density determination, differential weighing, air buoyancy correction, air density determination, checkweighing, time-controlled functions, totalizing, formulation, statistics, 2nd tare memory, identification codes ,product data memory |
| Miscellaneous |
motorized draft shield and user-programmable aperture angle, self-calibrating function isoCAL (activated at exact temperature or time intervals), removable draft shield |
|
Sartorius SE-2F Micro Balance (filter version)
- Applications: Determination of the particulate matter residue of diesel fuels, soot development in incineration plants, pollution of the atmosphere with nanoparticles
- Special draft shield for weighing filters up to 90 mm diameter
- Manually operable draft shield cover
- Draft shield easy to convert for left and right handed persons
- Optional reduction of the effects of electrostatic charges
- Standard-equipped with 50 mm Ø90 diameter filter pans
- Options: Ø75 and Ø90 mm diameter filter pans
|
| Weighing capacity |
2.1 g |
| Readability |
0.0001 mg (0.0000001 grams) |
| Verifiable for legal metrology |
No |
| Pan size |
Ø 50 oder/or 20 mm / 0.8" |
| Response time |
~ 10 s |
| Data interface |
RS232 |
| Battery-operable |
Yes |
| Calibration |
automatic, built-in weight |
| GLP/GMP Printouts |
Yes |
| Weighing Modes |
Carats, grains, milligrams, pounds, ounces, pennyweight, grams |
| Built-in programs |
Toggle weight units, counting, weighing in percent, animal weighing, recalculation, calculation, density determination, differential weighing, air buoyancy correction, air density determination, checkweighing, time-controlled functions, totalizing, formulation, statistics, 2nd tare memory, identification codes ,product data memory |
| Miscellaneous |
self-calibrating function isoCAL (activated at exact temperature or time intervals), version for filter weighing up to 50 mm Ø (optional up to 90 mm Ø) |
|
Available Accessories for the Sartorius Micro Balances
| Model |
Description |
Price |
|
| YDP20-0CE |
Data Printer with statistics and time/date functions, included cable fits RS232 |
$1206.90 |
|
| 6906918 |
Ink Ribbon (fits YDP20-0CE printer) |
$75.60 |
|
| 6906937 |
Printer Paper, large size (internal), package of 5 rolls (fits YDP20-0CE printer) |
$70.00 |
|
| YCC05-001M2 |
Cable, 9-pin and 25-pin interfacing, 5 foot, IBM type (fits RS232) |
$70 |
|
| YCC05-001M5 |
Cable, 9-pin and 25-pin interfacing, 16 foot, IBM type (fits RS232) |
$136.80 |
|
| YCC05-001M10 |
Cable, 9-pin and 25-pin interfacing, 33 foot, IBM type (fits RS232) |
$137.70 |
|
| YCC05-001M15 |
Cable, 9-pin and 25-pin interfacing, 49 foot, IBM type (fits RS232) |
$111.60 |
|
| YCC01-USBM2 |
RS232 (25-pin) to USB Connecting Cable |
$243.00 |
|
| YFS01 |
Foot Switch with T-Connector, for remote control of print, tare, cal, F, CF or toggle key |
$461.48 |
|
| YHS02 |
Hand Switch with T-Connector, for remote control of print, tare, cal, F, CF or toggle key |
$512.11 |
|
| LD2 |
Locking Device, anti-theft |
$85.50 |
|
| YDB02CP |
Carrying Case |
$335.75 |
|
Sartorius YDP20-0CE Statistical Printer
|
The YDP20-0CE data printer is designed to receive
weighing data from a connected weighing instrument
and print it on plain paper (roll width:
57.5 mm), with up to 24 characters per line.
The data printer is equipped with a real-time clock.
After the printer has been configured according to
the required settings, it is suitable for use as auxiliary
apparatus in legal metrology. The following can be computed/printed out:
- Number of weighing operations
- Mean value
- Standard deviation
- Variation coefficient
- Minimum value/weight
- Maximum value/weight
- Difference between the maximum and minimum value/weight
The YDP20-0CE data printer meets the quality standards
of the chemical and pharmaceutical industries, in
compliance with the requirements of GLP (Good Laboratory
Practice) and GMP (Good Manufacturing Practice).
In addition to recording individual weighing data, the
data printer can generate a statistical evaluation of
weighing data. All values transferred from an on-line
weighing instrument are stored. The following can be
printed out, depending on your printer configuration:
? Number of weighing operations
? Mean value
? Standard deviation
? Variation coefficient
? Lowest measured value
? Highest measured value
? Difference between lowest and highest measured values
? Date and time
Data is transferred either automatically or manually, at
the press of a key. |
|
| Model |
RG2 |
RG5 |
RG10 |
RG20 |
RG50 |
RG100 |
RG200 |
Capacity
x
resolution |
2 x 0.002 lb |
5 x 0.005 lb |
10 x 0.01 lb |
20 x 0.02 lb |
50 x 0.05 lb |
100 x 0.1 lb |
200 x 0.2 lb |
Load Cell
Deflection |
0.009 [0.23] |
0.005 [0.13] |
0.010 [0.25] |
0.004 [0.10] |
0.010 [0.25] |
0.010 [0.25] |
0.010 [0.25] |
| Accuracy |
+ 0.5% of full scale +1 digit |
| Safe overload |
150% of full scale (display shows ?----? at 110% and above) |
| Environmental requirements |
40o F - 100oF [5oC - 45oC], <96% humidity (non-condensating) |
| Weight |
0.55 lbs (0.25 kg) |
| Model |
MSA2.7S-000-DM |
MSA2.7S-0TR-DM |
MSA2.7S-000-DF |
MSU2.7S-000-DM |
MSU2.7S-000-DF |
MSE2.7S-000-DM |
MSE2.7S-000-DF |
| Capacity x Readability |
2.1g x 0.0001 mg |
2.1g x 0.0001 mg |
2.1g x 0.0001 mg |
2.1g x 0.0001 mg |
2.1g x 0.0001 mg |
2.1g x 0.0001 mg |
2.1g x 0.0001 mg |
Test Record
Certificate |
- |
YES |
- |
- |
- |
- |
- |
| Draft Shield Type |
Standard Microbalance |
Standard Microbalance |
Filter bal.draft shield, micro |
Standard Microbalance |
Filter bal.draft shield, micro |
Standard Microbalance |
Filter bal.draft shield, micro |
Tare range
(subtractive) |
? 2.1g |
? 2.1g |
? 2.1g |
? 2.1g |
? 2.1g |
? 2.1g |
? 2.1g |
| Repeatability |
0.00025<+mg |
0.00025<+mg |
0.00025<+mg |
0.00025<+mg |
0.00025<+mg |
0.00025<+mg |
0.00025<+mg |
| Linearity |
0.0009<+mg |
0.0009<+mg |
0.0009<+mg |
0.0009<+mg |
0.0009<+mg |
0.0009<+mg |
0.0009<+mg |
Corner load
(test load [g]) |
0.0025(1)mg |
0.0025(1)mg |
0.0025(1)mg |
0.0025(1)mg |
0.0025(1)mg |
0.0025(1)mg |
0.0025(1)mg |
Min. initial weight
(USP, USP31-NF26) |
1mg |
1mg |
- |
1mg |
- |
1mg |
- |
Sensitivity drift between
+10 to +30oC |
1 +ppm/K |
1 +ppm/K |
1 +ppm/K |
1 +ppm/K |
1 +ppm/K |
1 +ppm/K |
1 +ppm/K |
| Typical stabilization time |
< 7 sec |
< 7 sec |
< 7 sec |
< 7 sec |
< 7 sec |
< 7 sec |
< 7 sec |
| Typical measurement time |
< 10 sec |
< 10 sec |
< 10 sec |
< 10 sec |
< 10 sec |
< 10 sec |
< 10 sec |
| External standard calibration value |
2g (E2) |
2g (E2) |
2g (E2) |
2g (E2) |
2g (E2) |
2g (E2) |
2g (E2) |
| Display result |
0.1 ? 0.4 |
0.1 ? 0.4 |
0.1 ? 0.4 |
0.1 ? 0.4 |
0.1 ? 0.4 |
0.1 ? 0.4 |
0.1 ? 0.4 |
| Weighing pan size Ø |
20mm |
20mm |
50mm |
20mm |
50mm |
20mm |
50mm |
| Weighing chamber height |
70mm |
70mm |
15mm |
70mm |
15mm |
70mm |
15mm |
| Model Type |
MSA |
MSU |
MSE |
| Operation |
Touch screen, keys for central basic functions |
Keys |
Keys |
| Display |
High-resolution color TFT, 5.7" graphic display |
High-resolution black-and-white, 5.7" graphical display |
Liquid crystal display, black-andwhite |
| Adaptation of the display and control unit |
Tiltable display, removable display and control unit |
Removable display and control unit |
| Standard data interfaces |
- USB (integrated into weighing module)
- Various data protocols available (can also be connected to software designed for external manufacturers)
- RS-232C accessory interface, 25-pin (integrated into weighing module)
- Ethernet (integrated into display and service unit)
|
- USB (integrated into weighing module)
- RS-232C accessory interface, 25-pin (integrated into weighing module)
|
| SD card reader |
Integrated as standard into display and control unit |
- |
| Operation of the motorized draft shield (only for DA, DI, DM draft shields) |
Activated by side keys or touch-free using IR switch (optional); learning capability |
Activated by key or touch-free using IR switch (optional); learning capability |
| Applications |
Unit conversion, SQmin function for minimum initial weight according to USP, isoCAL automatic calibration | adjustment function, individual identifiers, density determination, statistics, calculations, averaging, formulation, weighing in percent, time-controlled functions, totalizing, DKD measurement uncertainty, second tare memory, counting, checkweighing, alibi memory, audit trail |
Unit conversion, isoCAL automatic calibration | adjustment function, density determination (buoyancy method only), calculations, averaging, net | total formulation, weighing in percent, counting |
| Power supply |
100?240 V~, ?15 %/+10 %, 50?60 Hz, 1.0 A |
| Input voltage |
15 VDC, + 5 % |
| Power consumption |
7W (max.) |
| Ambient temperature |
Operation +5oC to +40oC |
| Highest relative humidity |
80 % for temperatures up to 31oC, decreasing linearly to 50 % relative humidity for 40oC |
| Safety of electrical equipment |
According to EN 61010-1:2001: Safety requirements for electrical equipment for measurement, control, and laboratory use ? Part 1: General requirements |
| Electromagnetic compatibility |
According to EN 61326-1:2006: Electrical equipment for measurement, control, and laboratory use ? EMCrequirements ? Part 1: General requirements |
| Defined immunity to interference |
Suitable for use in industrial areas |
| Interference emission |
Class B (suitable for use in residential areas and areas that are connected to a low voltage network that also supplies residential buildings). |
|
