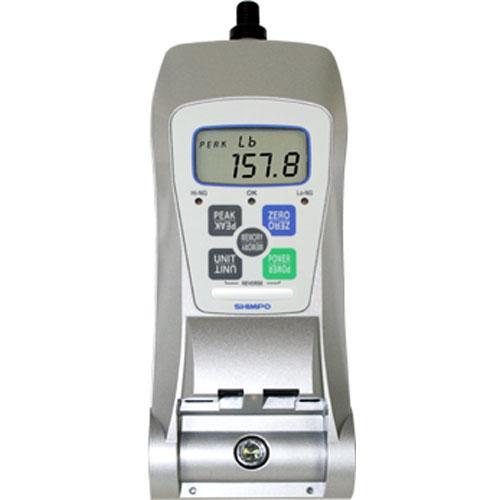

ShimpoFGV-1000HXY High Capacity Digital Force Gauge 1000 x 0.1 lb

SHIMPO INSTRUMENTS
The Series FGV-HXY Digital Force Gauges offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement. more ...
Scales > Force Gauge > Force Gauge
ShimpoFGV-1000HXY High Capacity Digital Force Gauge 1000 x 0.1 lb

Specifications Chart View Full Detail Page


Call for more info
Download PDF
ShimpoFGV-1000HXY High Capacity Digital Force Gauge 1000 x 0.1 lb
FREE Ground Shipping
(48 US States Only)

Price: $1,417.50


In Stock - Ships within 24 hours

Optional Accessories

View Features

Shimpo
SKU: FGV-1000HXY

Features

High Capacity Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications

The Series FGV-HXY Digital Force Gauges offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Models are available in 500 lb. or 1000 lb. ranges providing necessary performance for high capacity testing.

The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable these units to excel in both compression and tension applications in any direction. FGV models possess onboard statistical calculations and provide fast access to maximum, minimum, average and standard deviation data. Models include the free TORIEMON software and USB cable allowing further data analysis on a PC. The FGV-HXY’s 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C, USB and analog outputs provide maximum communication flexibility.

  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • Ideal for strict tolerances with its high accuracy +/-0.2% F.S.
  • Measure and record compression and tension tests. Permits true “push-pull” testing
  • Included handle attachments aid in user testing
  • 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • 1 million operation load cell with superior overload protection provides a long-life, damage free product
  • High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor
  • Variable display response rate aids viewing readings
  • Quick retrieval of peak measurement with a single push button in test stand
  • Flexible user preference with one button selection of engineering units
  • Field calibration through keypad eliminates down time
  • On board statistics provides immediate results and analysis of test data
  • Dual power capable with rechargeable battery or AC line voltage
  • Include data collection flexibility with 3 outputs: USB, RS-232 & Analog Output
  • Expanded memory for reviewing data points and transferring to PC/Laptop
  • Provide Built-In Hi-Lo Comparator function provides user with easy ‘Go-No Go’ Testing
  • CE Mark & RoHs Approval

Weight: 4.00 lb
2 Year Manufacture Warranty
Other Shimpo FGV DART 2.0 Digital Force Gauges

FGV-0.5XY
DART 2.0 Digital Force Gauge 0.5 x 0.001 lb

$715.50

FGV-1XY
DART 2.0 Digital Force Gauge 1 x 0.001 lb

$715.50

FGV-2XY
DART 2.0 Digital Force Gauge 2 x 0.001 lb

$715.50

FGV-5XY
DART 2.0 Digital Force Gauge 5 x 0.001 lb

$715.50

FGV-10XY
DART 2.0 Digital Force Gauge 10 x 0.01 lb

$715.50

FGV-20XY
DART 2.0 Digital Force Gauge 20 x 0.01 lb

$715.50

FGV-50XY
DART 2.0 Digital Force Gauge 50 x 0.01 lb

$715.50

FGV-100XY
DART 2.0 Digital Force Gauge 100 x 0.1 lb

$715.50

FGV-500HXY
High Capacity Digital Force Gauge 500 x 0.1 lb

$985.50

FGV-1000HXY
High Capacity Digital Force Gauge 1000 x 0.1 lb

$1,417.50

You are viewing this product

FGV-200XY
DART 2.0 Digital Force Gauge 200 x 0.1 lb

$760.50

Specifications

Model FGV-500HXY FGV-1000HXY
Capacity X Readability 500 x 0.1 lb 1000 x 0.1 lb
250 x 0.1 Kg 453.6 x 0.1 Kg
2500 x 1 N 4448 x 1 N
Thread M10 M10
Accuracy ±0.2% F.S.
Selectable Units kg, N and lb. (Depending on Range)
Overload Capacity 150% of F.S.
Data Sampling Rate 1000 Hz
Display Four digit LCD, .47” high (12 mm) with various indicators including tension and low battery indication (reversible) Minus sign for tension
Display Update Rate 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Power Rechargeable Ni-Cad batteries (included) or AC adapter/charger (included)
Auto Power Shut-Off Yes (not active if adapter/charge is in use)
Output Analog: ±1 VDC (through a 12 bit D/A converter)
RS232C: Baud rate (19200, 9600, 4800, 2400 bps selectable), commands control
USB: Allows communication between FGV-XY and Windows® PC Software with TORIEMON-USB via USB cable (included)
Overload Comparator: Open-collector output (Max DC30V/5mA)
Battery Charge 17 hours (when fully charged)
Recharge Time Approximately 18 hours (when fully discharged)
Temperature Limits 32 - 104°F (0 - 40°C)
Dimensions 8.43” x 3.23” x 2.25” (214 x 82 x 57 mm)
Product Weight 2 lb 2.65 lb
Package Weight 7.45 lb 8.25 lb
Certification CE, RoHS
Warranty 2 year
Included Accessories AC adapter/charger, carrying case, 2 handles, metric thread to inch adapter and attachments (flat head, hook, chisel, notched head, cone head, extension rod), USB cable. Note: software available at for free download
