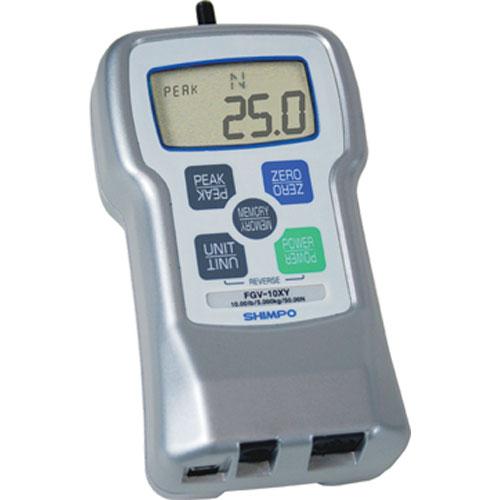

Shimpo FGV-100XY DART 2.0 Digital Force Gauge 100 x 0.1 lb
The Series FGV-XY DART 2.0 Force Gauges combine a rugged, ergonomic and compact design to provide a complete force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement more ...
Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications.
The Series FGV-XY DART 2.0 Force Gauges combine a rugged, ergonomic and compact design to provide a complete force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.
On-board statistical calculations provide fast access to maximum, minimum, average and standard deviation data. Units include the free TORIEMON-USB software and USB cable allowing further data analysis on a PC. The 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C and analog outputs provide the DART 2.0 with maximum communication flexibility. Models are available from 0.5 lbs to 200 lb ranges providing a large offering for various testing requirements.
The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-XY to excel in both compression and tension applications in any direction. Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.
1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
High accuracy +/-0.2% F.S., ideal for strict tolerances
Measure and record compression and tension tests- permits true “push-pull” testing
180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
Maximum data collection flexibility with 3 outputs: USB, RS-232 & Analog Output
1 million operation load cell with superior overload protection provides a long-life, damage free product
Rugged, ergonomic die cast aluminum construction allows usage on production floor
On board statistics provides immediate results and analysis of test data
Variable display response rate aids viewing readings
Expanded memory for reviewing data points and transferring to PC/Laptop
Built-in Hi-Lo Comparator function provides user with easy ‘Go-No Go’ Testing
Quick retrieval of peak measurement with a single push button
Flexible user preference with one button selection of up to 4 engineering units
Dual power capable with rechargeable battery or AC line voltage
Field Calibration through keypad eliminates down time
