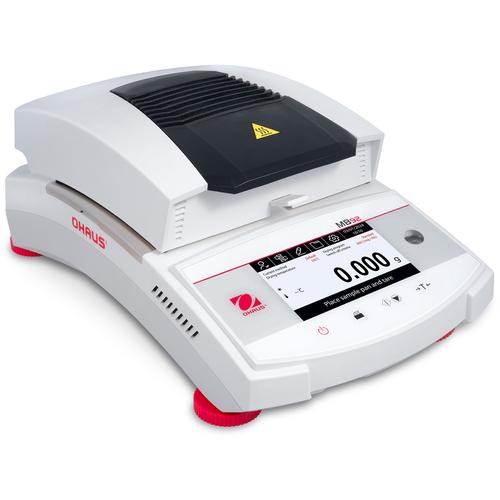

Ohaus MB-92 Moisture Analyzer (30971930) carbon fiber Heating 90 x 0.001 g |
|
| The new MB92 features a redesigned housing, innovative carbon fiber heating and upgraded load cell for enhanced durability and performance. Ideal for users demanding a higher level of performance on both the laboratory and production floor, offering greater data security and integrity with password protection. more ... |
|
Laboratory Equipment >
Moisture Analyzers >
Moisture Analyzers
|
|
|
|
|
|
Features
High Performance Moisture Analysis with Advanced Features for the Most Demanding Application
The new MB92 features a redesigned housing, innovative carbon fiber heating and upgraded load cell for enhanced durability and performance. Ideal for users demanding a higher level of performance on both the laboratory and production floor, offering greater data security and integrity with password protection.
Unique Features:
- Robust and durable with the new carbon heating technology and an upgraded full color capacitive touchscreen, MB92 is the perfect choice for users demanding a high level of performance and precision.
- Multiple drying profiles, shut off criteria and methods offer great flexibility in method creation. Enhanced password protection ensures greater data security and integrity.
- A full glass panel and tool-free heating chamber assembly makes cleaning and maintenance easy. Perfect for both the laboratory and the production floor.
Applications Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display 4.3" capacitive touch screen
Operation Internal power supply with power cord (included)
Communication RS232, USB device, USB host
Construction Carbon fiber heat source, PBT housing, die casting aluminum base, metal pan support, metal pan handler, in use cover
Design Features Eight shut-off criteria (manual, timed, A10, A30, A60, A90, A160, free mg/s), four drying profiles (standard, fast, ramp, step), storage up to 20 methods and 200 results for all methods, 40-200? heating range, multiple operational languages
Weight:
16.00 lb
|
|
Other Ohaus MB Moisture Analyzer
|
Specifications
| Model |
MB32 |
MB62 |
MB92 |
| Capacity X Readability |
90 x 0.001 g |
90 x 0.001 g |
90 x 0.001 g |
| Readability |
0.01 % |
0.01 % |
0.01 % |
| Repeatability |
0.15 % (3 g sample)
0.02 % (10 g sample) |
0.10 % (3 g sample)
0.018 % (10 g sample) |
0.08 % (3 g sample)
0.015 % (10 g sample) |
| Moisture Range |
0.01 % to 100 % (0.01 % to 1000 % in regain mode) |
| Recommended MC% |
0.5 % to 100 % |
| Minimum Start Weight |
0.5 g |
| Heating Element |
Carbon Fiber |
| Temperature Range |
40 - 180 °C (1 °C incremental) |
40 - 200 °C (1 °C incremental) |
| Drying Programs |
Standard, Fast |
Standard, Fast, Ramp, Step |
| Method Library |
2 |
20 |
20 |
| Result Storage |
1 |
100 |
200 |
| Switch-off Criteria |
- |
5 automatic, timed (1 - 480 mins), manual |
| ID Management |
- |
10 Sample ID |
Sample Name (Free Defined), Sample ID (Free Defined) and Batch ID (Free Defined) |
| Status Light |
- |
Multi-color status light |
| Operation Instruction |
Progress indicator
On-screen instruction |
Progress indicator
On-screen instruction
Graphic instruction |
Live drying curve
On-screen instruction |
| Display Type |
4 inch LCD with 2nd line display |
5 inch LCD with 2nd line display |
4.3 inch capacitive touch screen |
| Display Results |
MC%, DC%, RG%, time, temperature, weight, Method No. |
MC%, DC%, RG%, time, temperature, weight, method name., drying curve and statistics |
| Language |
English, French, German, Italian, Spanish, Portuguese, Chinese, Korean, Japanese, Polish, Turkish |
| Adjustment |
Temperature adjustment (100 °C, 160 °C)
External weight adjustment (50 g) |
| Output |
RS232, USB device |
RS232, USB host, USB device |
| Power |
120 VAC 50/60 Hz |
| Operating Temperature Range |
10 - 40 °C |
| Pan Size |
Ø 3.5 inch / 90 mm |
| Dimension |
210 x 138 x 352 mm / 8.3 x 5.4 x 13.9 inch |
| Net Weight |
4.3 kg / 9.5 lb |
| Shipping Weight |
6.1 kg / 13.4 lb |
Compliance
- Product Safety: IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; UL 61010-1; UL 61010-2-010
- Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; Canada ICES-003 Class A
- Compliance Marks: CSA; CE; RCM; WEEE
Accessories
Pan Handler, MB32 MB62 MB92. . 30954234
In-Use Cover, MB92 . 30954269
Temperature Calibration Kit. . 11113857
Scoop. . 30284477
Aluminum Pan (80). . 80850086
Glass Fiber Pads (200). . 80850087
Cage, Sample. . 80252477
Reusable Pan, Set (3), 7mm. . 80252478
Reusable Pan, Set (3), 14mm. . 80252479
SF40A Impact Printer. . 30064203
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|

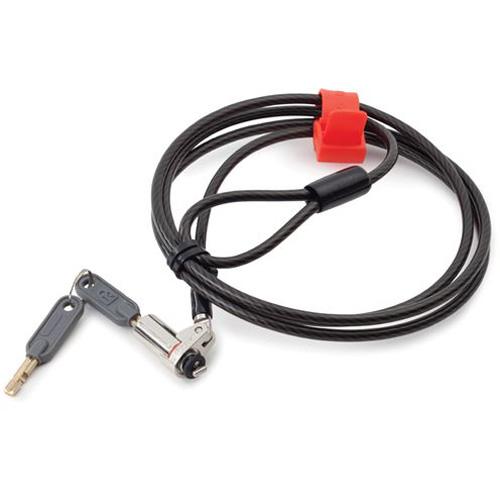

Ohaus 80850043 Security Device (470004-010)
Security Device for Voyagers and Explorers up to 8kg, MB45, MB35, Triple Beam Pro
|
|
more info
|
Ohaus 80500525 RS-232 Cable PC 9 Pin
RS-232 Cable for Ohaus balances. IBM 9 pin in to Analytical Plus
|
|
more info
|

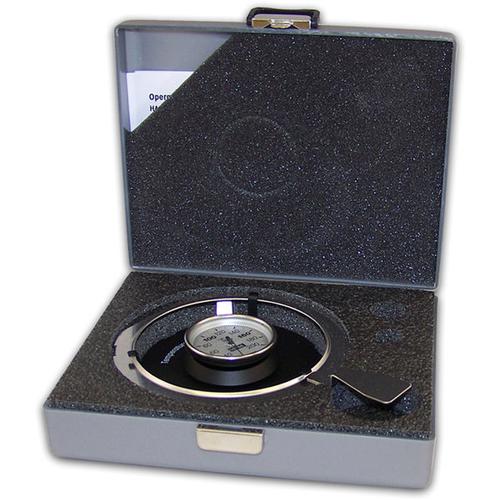

Ohaus 11113857 Temperature Calibration Kit
Temperature calibration kit for Ohaus MB-35 and MB-45 moisture analyzers
|
|
more info
|

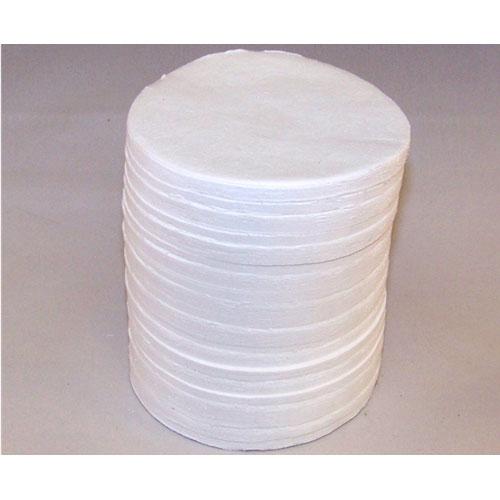

Ohaus 80850087 Glass Fiber Pads
Glass fiber pads for Ohaus MB-series moisture analyzers, 200 pack
|
|
more info
|

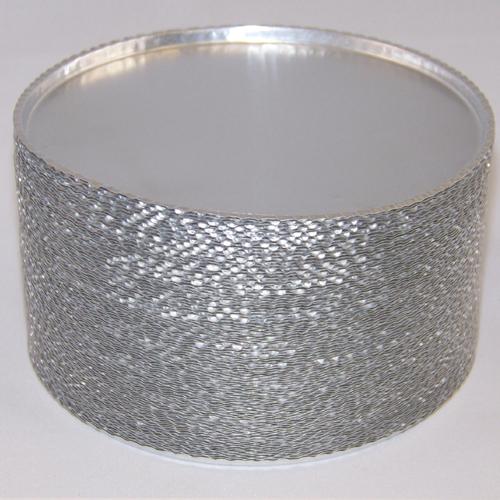

Ohaus 80850086 Sample Pans For All MB's (80/Box)
Sample pans for Ohaus MB-series moisture analyzers, 50 pack
|
|
more info
|
Ohaus SF40A (30064203) Portable Dot-Matrix Impact Printer
OHAUS Value in a Full-Featured, Portable Printer
The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
- Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
- Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
- Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
|
|
more info
|

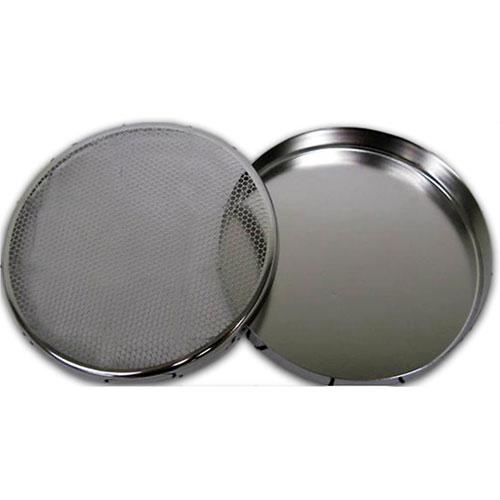

Ohaus 80252477 - Sample Cage for MB Series
Sample Cage for MB23 and MB25 Moisture Analyzers.
|
|
more info
|

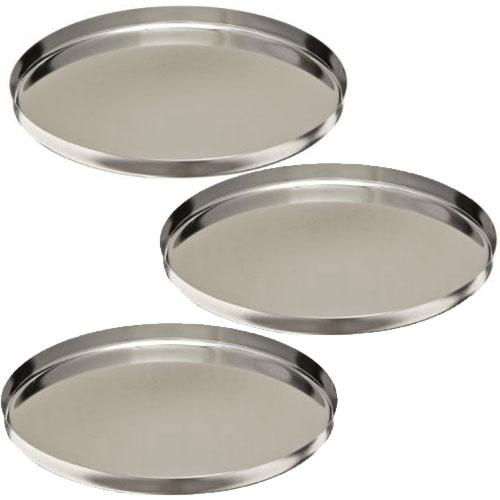

Ohaus 80252478 - Three 7mm Reusable Pans for MB Series
Three 7mm Reusable Pans for MB23 and MB25 Moisture Analyzers.
|
|
more info
|
Ohaus 80252479 - Three 14mm Reusable Pans for MB Series
Three 14mm Reusable Pans for MB23 and MB25 Moisture Analyzers.
|
|
more info
|
Ohaus 30304101 - Interface Kit, RS232-USB
Ohaus 30304101 - Interface Kit, RS232-USB
Compatible Models
VN31P5000L
VN31P5000X
Bench Scale, D71P15HR1
D71P100HL2
D71P150HX5
D71P60HR1
D71P60HL2
D71P150HX2
D71P300HX2
D51P15HR5
D51P30HR5
D51P60HR5
D51P60HL5
D51P100HL5
D51P150HX5
D51P300HX5
D51P10QR5
D71P30HR1
D51P25QR5
D51P50QL5
D51P100QL5
D51P250QX5
D71P15HR5
D71P30HR5
D71P60HR5
D71P60HL5
D71P100HL5
D71P300HX5
D71P10QR1
D71P25QR1
D71P50QL2
D71P100QL2
D71P250QX2
D71P10QR5
D71P25QR5
D71P50QL5
D71P100QL5
D71P250QX5
Bench Scale, D31P30BR AM
Bench Scale, D31P60BR AM
Bench Scale, D31P60BL AM
Bench Scale, D31P150BL AM
Bench Scale, D31P150BX AM
Bench Scale, D31P300BX AM
T51P AM
T71P AM
T31P AM
Indicator, T32ME AM
Bench Scale, D31P15BR AM
Indicator, T32MC AM
|
|
more info
|
Ohaus 30304102 - Interface Kit, RS232-Ethernet
Ohaus 30304101 - Interface Kit, RS232-USB
Compatible Models
VN31P5000L
VN31P5000X
D71P100HL2
D71P150HX5
D51P15HR5
Bench Scale, D71P15HR1
D71P60HR1
D51P30HR5
D51P60HR5
D51P60HL5
D51P100HL5
D51P150HX5
D51P300HX5
D51P10QR5
D51P25QR5
D71P60HL2
D71P150HX2
D71P300HX2
D71P30HR1
D51P50QL5
D51P100QL5
D51P250QX5
D71P15HR5
D71P30HR5
D71P60HR5
D71P60HL5
D71P100HL5
D71P300HX5
D71P10QR1
D71P25QR1
D71P50QL2
D71P100QL2
D71P250QX2
D71P10QR5
D71P25QR5
D71P50QL5
D71P100QL5
D71P250QX5
Bench Scale, D31P30BR AM
Bench Scale, D31P60BR AM
Bench Scale, D31P60BL AM
Bench Scale, D31P150BL AM
Bench Scale, D31P150BX AM
Bench Scale, D31P300BX AM
Bench Scale, D31P15BR AM
T31P AM
Indicator, T32ME AM
Indicator, T32MC AM
T51P AM
T71P AM
|
|
more info
|

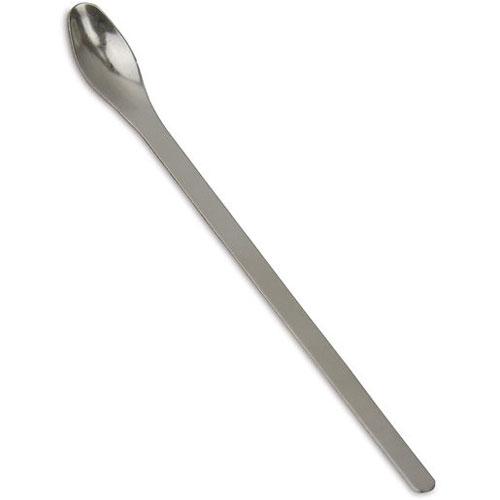

Ohaus 30284477 Scoop Accessory for Moisture Analyzers
Ohaus 30284477 Scoop Accessory for MB90 and MB120 Moisture Analyzers
|
|
more info
|
Ohaus 30954234 Sample Pan Handler for MB32, MB62, MB92
Ohaus 30954234 Sample Pan Handler for MB32, MB62, MB92
|
|
more info
|

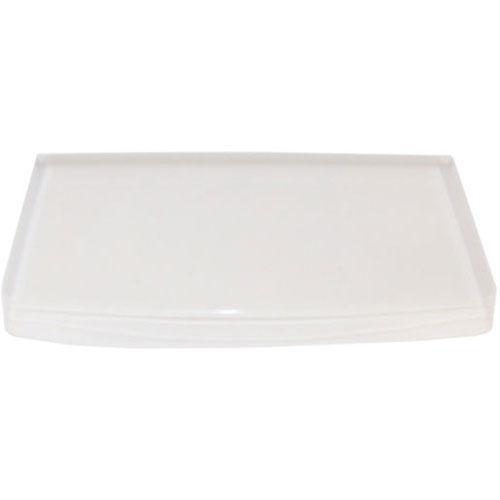

Ohaus 30954269 In-Use Cover for MB92 Moisture Analyzers
