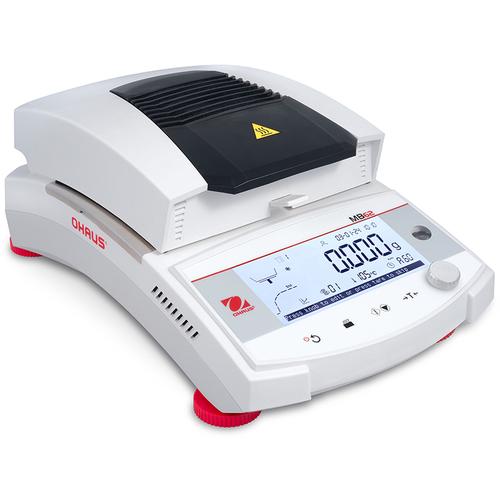

Ohaus MB-62 Moisture Analyzer (30971929) carbon fiber Heating 90 x 0.001 g |
|
| MB62 features a redesigned housing, innovative carbon fiber heating and upgraded load cell for enhanced durability and performance. With flexibility in method creation, settings and data access, MB62 is suitable for a variety of moisture applications in numerous industries. more ... |
|
Laboratory Equipment >
Moisture Analyzers >
Moisture Analyzers
|
|
|
|
|
|
Features
Designed for Durability and Flexible Performance in a Variety of Moisture Applications
MB62 features a redesigned housing, innovative carbon fiber heating and upgraded load cell for enhanced durability and performance. With flexibility in method creation, settings and data access, MB62 is suitable for a variety of moisture applications in numerous industries.
Unique Features:
- Designed with durability and simplicity in mind, the wide 5-inch LCD display, knob control, and new carbon fiber heating technology guarantee a longer service life and reliable results.
- Flexible method and sample management with 4 drying profiles, 7 shut off criteria and library storage for up to 20 methods, and 100 results with sample ID for easy recall.
- Understand the status of your test and machine at all times. The indication curve shows the status of the test, and the machine status can be seen easily with the multi-color status light.
Applications Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display 5" LCD with 2nd line display
Operation Internal power supply with power cord (included)
Communication RS232, USB device
Construction Carbon fiber heat source, PBT housing, die casting aluminum base, metal pan support, metal pan handler, in use cover
Design Features Seven shut-off criteria (manual, timed, A10, A30, A60, A90, A160), four drying profiles (standard, fast, ramp, step), storage up to 20 methods and 100 results for all methods, 10 sample ID, 40-200? heating range, multiple operational languages
Weight:
16.00 lb
|
|
Other Ohaus MB Moisture Analyzer
|
Specifications
| Model |
MB32 |
MB62 |
MB92 |
| Capacity X Readability |
90 x 0.001 g |
90 x 0.001 g |
90 x 0.001 g |
| Readability |
0.01 % |
0.01 % |
0.01 % |
| Repeatability |
0.15 % (3 g sample)
0.02 % (10 g sample) |
0.10 % (3 g sample)
0.018 % (10 g sample) |
0.08 % (3 g sample)
0.015 % (10 g sample) |
| Moisture Range |
0.01 % to 100 % (0.01 % to 1000 % in regain mode) |
| Recommended MC% |
0.5 % to 100 % |
| Minimum Start Weight |
0.5 g |
| Heating Element |
Carbon Fiber |
| Temperature Range |
40 - 180 °C (1 °C incremental) |
40 - 200 °C (1 °C incremental) |
| Drying Programs |
Standard, Fast |
Standard, Fast, Ramp, Step |
| Method Library |
2 |
20 |
20 |
| Result Storage |
1 |
100 |
200 |
| Switch-off Criteria |
- |
5 automatic, timed (1 - 480 mins), manual |
| ID Management |
- |
10 Sample ID |
Sample Name (Free Defined), Sample ID (Free Defined) and Batch ID (Free Defined) |
| Status Light |
- |
Multi-color status light |
| Operation Instruction |
Progress indicator
On-screen instruction |
Progress indicator
On-screen instruction
Graphic instruction |
Live drying curve
On-screen instruction |
| Display Type |
4 inch LCD with 2nd line display |
5 inch LCD with 2nd line display |
4.3 inch capacitive touch screen |
| Display Results |
MC%, DC%, RG%, time, temperature, weight, Method No. |
MC%, DC%, RG%, time, temperature, weight, method name., drying curve and statistics |
| Language |
English, French, German, Italian, Spanish, Portuguese, Chinese, Korean, Japanese, Polish, Turkish |
| Adjustment |
Temperature adjustment (100 °C, 160 °C)
External weight adjustment (50 g) |
| Output |
RS232, USB device |
RS232, USB host, USB device |
| Power |
120 VAC 50/60 Hz |
| Operating Temperature Range |
10 - 40 °C |
| Pan Size |
Ø 3.5 inch / 90 mm |
| Dimension |
210 x 138 x 352 mm / 8.3 x 5.4 x 13.9 inch |
| Net Weight |
4.3 kg / 9.5 lb |
| Shipping Weight |
6.1 kg / 13.4 lb |
Compliance
- Product Safety: IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; UL 61010-1; UL 61010-2-010
- Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; Canada ICES-003 Class A
- Compliance Marks: CSA; CE; RCM; WEEE
Accessories
Pan Handler, MB32 MB62 MB92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30954234

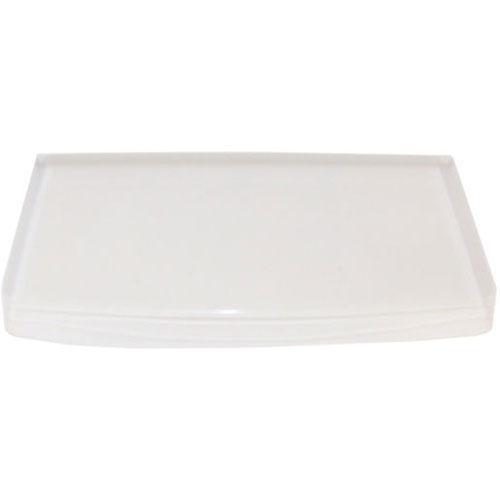

In-Use Cover, MB32 MB62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30954235
Temperature Calibration Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11113857
Scoop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30284477
Aluminum Pan (80). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80850086
Glass Fiber Pads (200). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80850087
Cage, Sample. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80252477
Reusable Pan, Set (3), 7mm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80252478
Reusable Pan, Set (3), 14mm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80252479
SF40A Impact Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30064203
ct Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30064203
|
|
|
|
* within the 48 continental US States
|
|
