Features
UV/Vis Spectroscopy for Life Sciences.

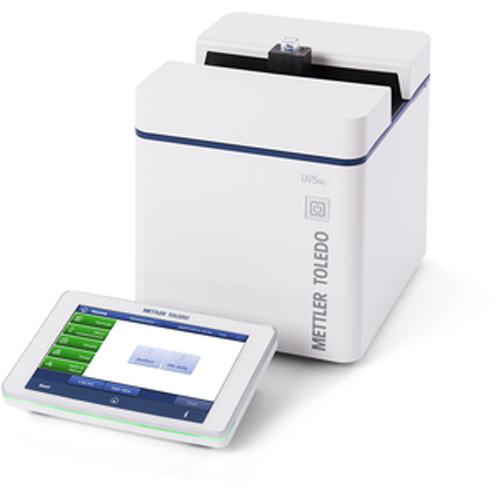

Cuvette-based UV/Vis instrument for life sciences. Pre-defined methods for Bradford, Lowry, BCA and Biuret assays, and for OD600, DNA, RNA and protein analysis (e.g. A260, A260/A280). Accessories available for temperature-controlled kinetic studies.
Simple One Click™ Operation - The large color touchscreen features the intuitive One Click™ interface. All users have their own home screen, enabling daily tasks in just One Click.
Ready to Use - The instrument is shipped ready for immediate use. The Xenon flash lamp has no warm-up time. Simply power it up and start measuring.
Ready-to-use Bio-Applications - Comprehensive package of pre-defined Bio-Applications; From DNA concentration and purity determination to protein assays.
Keep Control of all Costs
With no moving parts in the optical set-up, the instrument is robust and easy to maintain.
Measurements within Seconds
Modern fiber optics are combined with a CCD array detector and Xenon flash lamp, allowing for a full spectrum scan within just 1 second.
Open Sample Area
Sample handling is fast and easy with the open sample compartment. Installation of accessories like holders is straightforward.
Clean Up Your Lab Bench
Compact layout of optical components allows for strikingly small footprint. Instrument can be operated as a standalone without the use of a PC.
|
|
Specifications
| Model |
UV5
30254725 |
UV5Bio
30254728 |
UV5Nano
30254729 |
UV7
30254726 |
| Wavelength Range (nm) |
190 nm - 1,100 nm |
190 nm - 1,100 nm |
190 nm - 1,100 nm |
190 nm - 1,100 nm |
| Photometric accuracy (K2Cr2O7) |
±0.005 A |
±0.005 A |
±0.006 A |
±0.005 A |
| Wavelength accuracy |
±0.9 nm |
±0.9 nm |
±0.9 nm |
±0.5 nm |
| Resolution (Toluene in hexane) |
>1.5 |
>1.5 |
>1.5 |
>1.9 |
| Stray light (KCl, 198nm) |
>2 |
>2 |
>1.7 |
>2.3 |
| Compatibility with LabX Software |
Yes |
Yes |
Yes |
Yes |
| Options |
CuvetteChanger, Fingerprint Reader, Cuvettes, FillPalMini, Printer, LabX PC Software, CertiRef, Barcode Reader |
CuvetteChanger, Fingerprint Reader, Cuvettes, Handheld barcode scanner, Printer USB-P25, FillPalMini, LabX PC Software, CertiRef |
Fingerprint Reader, Cuvettes, Handheld barcode scanner, USB-P25 printer, FillPalMini, LabX PC Software |
CuvetteChanger, Fingerprint Reader, Cuvettes, Handheld barcode scanner, Printer USB-P25, FillPalMini, LinSet, LabX PC Software, CertiRef |
| Shortcuts per user |
24 |
| Max. number of methods |
50 |
100 |
| Pharmacopeia compliant |
- |
No |
No |
Yes |
| Kinetic Measurements |
- |
Yes |
Yes |
- |
| User Identification |
- |
Yes |
Yes |
Yes |
| Micro-volume measurements |
- |
No |
YES |
- |
| Bio applications |
- |
Yes |
Yes |
- |
| Languages |
English, Italian, French, Russian, Portuguese, Chinese, German, Spanish, Japanese |
| Minimal Scan time |
- |
1 s |
1 s |
1 s |
| Display |
7 inch QVGA Color TFT touch sensitive screen |
| Displayed Resolution |
800x400 |
| Dimensions (HxWxD) |
8.98 in x 8.19 in x 10.04 in (228 mm x 208 mm x 255 mm) |
| Optics |
Array |
- |
Array |
| Light Source |
Xenon flash lamp |
- |
Xenon flash lamp |
| Application |
Water, Color, Scan, Quant |
Water, Kinetic, Color, Bio, Scan, Quant |
- |
Water, Kinetic, Pharma, Color, Scan, Quant |
| Weight (incl. Terminal) |
4.25 kg |
4.25 kg |
7.2 kg |
6.4 kg |
| Cuvette Changer |
No |
Yes |
- |
|
