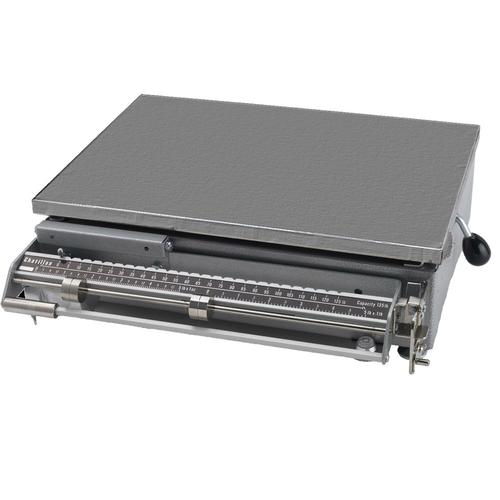

Chatillon PBB-52X (PBB-052-S) Portable Beam Scale, 52 lb |
|
| Fully portable mechanical beam bench scales for industrial use. Most models legal for trade. Built for durability:all steel housing with floating platform for lasting accuracy, and cast aluminum alloy levers. more ... |
|
|
|
|
|
|
|
Features
Chatillon portable beam scales have all steel housing with a floating platform for lasting accuracy. Accurate and convenient beams are easy to use. Bubble level and adjustable feet. Capacity 52 kg
- Most Models Legal for Trade
- Sturdy Construction: all steel housing with floating platform for lasting accuracy, cast aluminum alloy levers with adjustable hardened steel pivots (PBB-300 has welded steel levers), self-aligning hardened steel bearings with friction points
- Easy to use: Mirrored balance indicators for fast, accurate and convenient viewing, notched reading beam made of strong anodized aluminum alloy with clear, sharp graduations for fast, easy reading (PBB-300 is plated steel)
- Avoirdupois models can be read in either ounce or decimal pounds. An additional standard sliding poise permits blank taring up to 10 lbs (PBB-300, 34 lb)
- The bottom left or right beam sections can be used as a measured tare bar. Metric models have 2 kg taring capabilities on secondary poise
- Locking Mechanisms: Built-in platform and beam locking mechanisms prevent damage during transport or during idle periods
- Bubble level indicator and adjustable leveling legs
- No field assembly required
- Platform Size: 12 x 17 (PBB-300: 16-1/4 x 21-3/4)
- Net Weight: 23 lb (PBB-300: 38 lb), Shipping Weight: 28 lb (PBB300: 45 lb)
- Options: Stainless steel platform cover (except PBB-300), p/n 16076, Carrying handle: p/n PBBH (p/n PBBH2 for PBB-300)
Weight:
28.00 lb
|
1 Year Manufacture Warranty
|
Other Chatillon Ametek PBB-H Carrying Handle for PBB Beam Scales
|
Specifications
| Mode |
Model Number |
Price |
Total Capacity |
Beam Graduations |
Tare Bar |
| Top |
Bottom |
| Left |
Right |
| Avoirdupois |
PBB135*(1) |
|
135 lb |
125 lb x 5 lb |
5 lb x 1 oz |
5 lb x 0.1 lb |
0.10 lbs |
| PBB52*(2) |
|
52 lb |
50 lb x 2 lb |
1 lb x 1/4 oz |
1 lb x 0.02 lb |
0-10 lbs |
| PBB52X |
|
52 lb |
50 lb x 2 lb |
1 lb x 1/4 oz |
1 lb x 0.01 lb |
0-10 lbs |
| PBB131X |
|
131 lb |
125 lb x 5 lb |
5 lb x 1 oz |
1 lb x 1/4 oz |
0-10 lbs |
| PBB131XD |
|
131 lb |
125 lb x 5 lb |
5 lb x 1 oz |
1 lb x 0.01 lb |
0-10 lbs |
| PBB300*(2) |
|
301 lb |
295 lb x 5 lb |
5 lb x 1 oz |
1 lb x 0.1 lb |
0-34 lbs |
| Metric |
PBB52kg*(1) |
|
52 kg |
50 kg x 2 kg |
0-2 kg
blank tare |
2 kg x 0.02 kg |
- |
| PBB26kg*(1) |
|
26 kg |
25 kg x 1 kg |
0-2 kg
blank tare |
1 kg x 0.01 kg |
- |
*These models conform to the NIST Handbook 44 Class III, Certificates of Conformance were issued under the National Type Evaluation Program of the National Conference on Weights & Measures. They are LEGAL FOR TRADE subject to on-site verification by local Weights and Measures jurisdictions. (1) C.O.C. No 88-150, (2)C.O.C. No 90-104
|
|
|
|
|
|
| |
|
|
|
|
