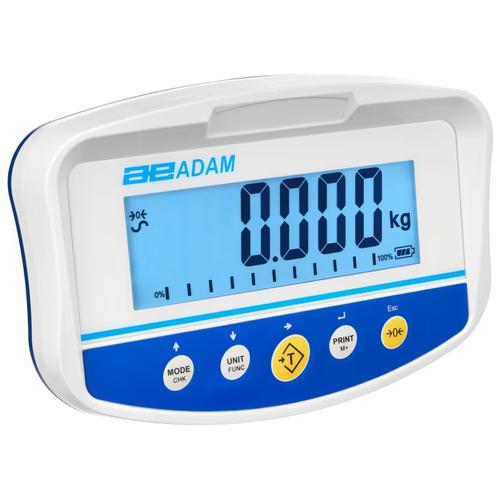

Adam Equipment GK-S Indicator |
|
An affordable weight indicator with a large, bright display and an intuitive five-button keypad, GK-S offers a simple user interface for quick operation, along with a color-changing checkweighing backlit LCD that offers large digits and a capacity tracker. more ... |
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
Features
An affordable weight indicator with a large, bright display and an intuitive five-button keypad, GK-S offers a simple user interface for quick operation, along with a color-changing checkweighing backlit LCD that offers large digits and a capacity tracker. The indicator — which is constructed of durable ABS plastic — includes a wall bracket for easy, secure mounting. Connect GK-S to any Adam platform scale to perform applications such as parts counting, percentage weighing, checkweighing and check counting.
- Color-changing backlight in checkweighing mode to show if under, over or within acceptable limits
- Simple, 5-key operation allows for easy set up and use
- Large, 40mm-high easy to read digits on a bright background
- Capacity tracker built into display for easily monitoring possible overloads
- Solid ABS housing is durable for industrial use
- Selectable language for printing
- Hold function freezes the displayed weight, allowing time to elapse without losing the result
- Auto power-off to save energy
- Memory accumulation totals results
- External calibration allows for verification and adjustment with weights
- Optional USB interface simplifies data communication
- RS-232 interface provides speedy connection to computers and printers
- Optional rechargeable battery for operation almost anywhere
- Wall-mount bracket for placing indicator on vertical surface
- 1:1,600,000 Internal counting resolution for precise results
- Power cord
- A 5-year warranty means quality assured for years of use.
Weight:
5.00 lb
|
|
Other Adam Equipment GK-S and GK-Plus Indicators
|
Specifications
Model |
GK-S |
GK-Plus |
Capacity x Readability |
Selectable |
Selectable |
Keypad |
5-key |
Full |
Weighing Units |
g, kg, lb, lb:oz, oz |
Internal Counting Resolution |
1:1,600,000 |
Interface |
RS-232, Optional USB |
Calibration |
External |
Display |
Backlit LCD with 1.6" / 40mm-high digits |
Power Supply |
12VDC 800mA adapter, Optional internal rechargeable battery |
Operating Temperature |
-10° to 40°C / 14° to 104°F |
Housing |
ABS Plastic indicator with die-cast aluminum base |
Overall Dimensions |
8.7"x12.4"x8.3" / 220x315x210mm |
|
|
|
* within the 48 continental US States
|
Optional Accessories
more info
|
Adam Equipment 3074010266 RS-232 Cable (Null Modem Type)
RS-232 Cable
Null Modem Type
|
|
more info
|
Adam Equipment 600002028 AdamDU - Data Collection Program
AdamDU - Data Collection Program
Practical Functionality – Smart Features
Statistics and Graphing
Easy Data Management
Quick Setup and Installation
|
|
more info
|
Adam Equipment 3074010507 RS-232 to USB Interface Cable
9066 RS-232 to USB Interface Cable
|
|
more info
|
Adam Equipment 3052010526 In-use wet cover (GBK/GBC/GFK/GFC/GC/GK)
Adam Equipment 5006 In-use Cover
|
|
more info
|

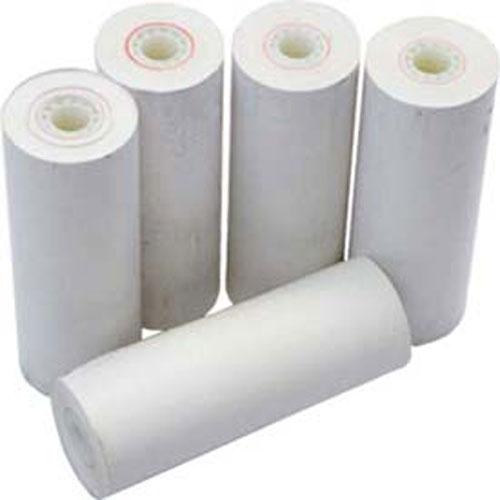

Adam Equipment 3126011281 - Thermal Paper For Adam ATP Printer (10 pack)
10 pack of Thermal Paper For Adam ATP Printer (No.1120011156)
|
|
more info
|

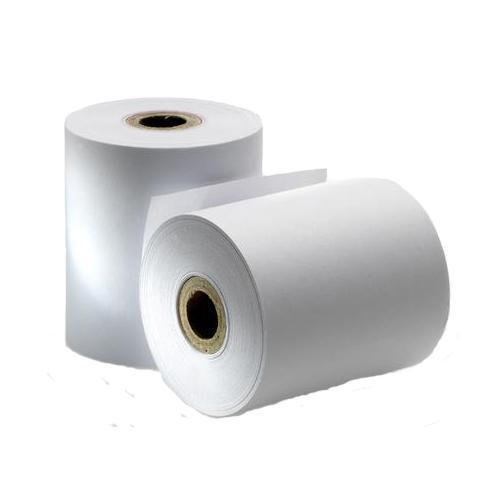

Adam Equipment 3126011263 - Thermal Paper For Adam ATP Printer
Thermal Paper For Adam ATP Printer (No.1120011156)
|
|
more info
|

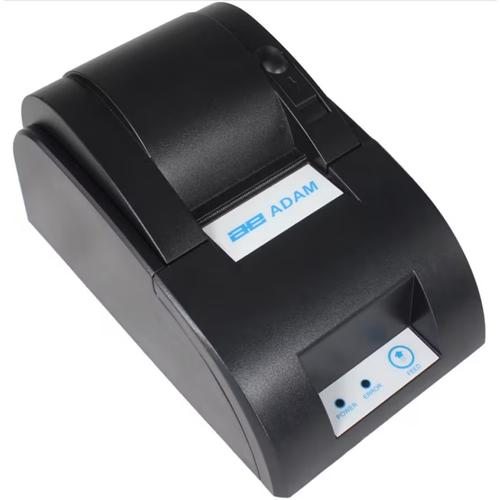

Adam Equipment -ATP 2 Thermal Printer (1120015779)
A general purpose thermal roll printer, the ATP2 is ideal for use with most balances and scales. Designed to be efficient and compact, the printer occupies minimal space on a bench or tabletop. Operation is simple, with an on/off switch, paper feed button and two LED indicators. Ideal for printing applications, the ATP2 is able to perform a variety of other commands, such as setting tabs, spacing and carriage return. Users can specify absolute position, select or disable double width, and designate line feed. The printer is preset to work with the default RS-232 interface on Adam balances, but adapts easily to work with other equipment.
|
|
|
|
|
|
|
