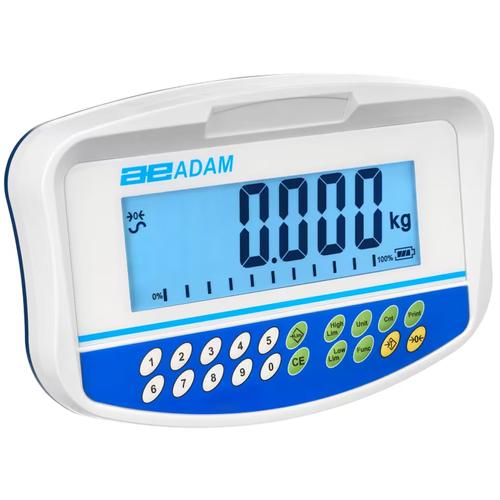

Adam Equipment GK-Plus Full Keyboard Indicator |
|
With a full numeric keypad, the GK-Plus offers an advanced user interface, bright display and smart features, a color-changing LCD for checkweighing, large 1.6"/40mm digits and a capacity tracker. The indicator’s housing is constructed of rugged ABS plastic more ... |
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
Features
With a full numeric keypad, the GK-Plus offers an advanced user interface, bright display and smart features, a color-changing LCD for checkweighing, large 1.6"/40mm digits and a capacity tracker. The indicator’s housing is constructed of rugged ABS plastic. GK-Plus comes with a bracket for easy, secure wall-mounting. Connect the GK-Plus to any Adam platform scale to perform numerous applications, including weighing, parts counting, percentage weighing, dynamic/animal weighing, checkweighing and check counting.
- Color-changing backlight in checkweighing mode to show if under, over or within acceptable limits
- Large, 40mm-high easy to read digits on a bright background
- Full numeric keypad for quick and easy entering of check weighing limits
- Capacity tracker built into display for easily monitoring possible overloads
- Solid ABS housing is durable for industrial use
- Selectable language for printing
- Rechargeable battery included for operation almost anywhere
- Hold function freezes the displayed weight, allowing time to elapse without losing the result
- Auto power-off to save energy
- Memory accumulation totals results
- Optional USB interface simplifies data communication
- RS-232 interface provides speedy connection to computers and printers
- External calibration allows for verification and adjustment with weights
- Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects
- Wall-mount bracket for placing indicator on vertical surface
- 1:1,600,000 Internal counting resolution for precise results
- A 5-year warranty means quality assured for years of use.
Weight:
5.00 lb
|
|
Other Adam Equipment GK-S and GK-Plus Indicators
|
Specifications
Model |
GK-S |
GK-Plus |
Capacity x Readability |
Selectable |
Selectable |
Keypad |
5-key |
Full |
Weighing Units |
g, kg, lb, lb:oz, oz |
Internal Counting Resolution |
1:1,600,000 |
Interface |
RS-232, Optional USB |
Calibration |
External |
Display |
Backlit LCD with 1.6" / 40mm-high digits |
Power Supply |
12VDC 800mA adapter, Optional internal rechargeable battery |
Operating Temperature |
-10° to 40°C / 14° to 104°F |
Housing |
ABS Plastic indicator with die-cast aluminum base |
Overall Dimensions |
8.7"x12.4"x8.3" / 220x315x210mm |
|
|
|
* within the 48 continental US States
|
