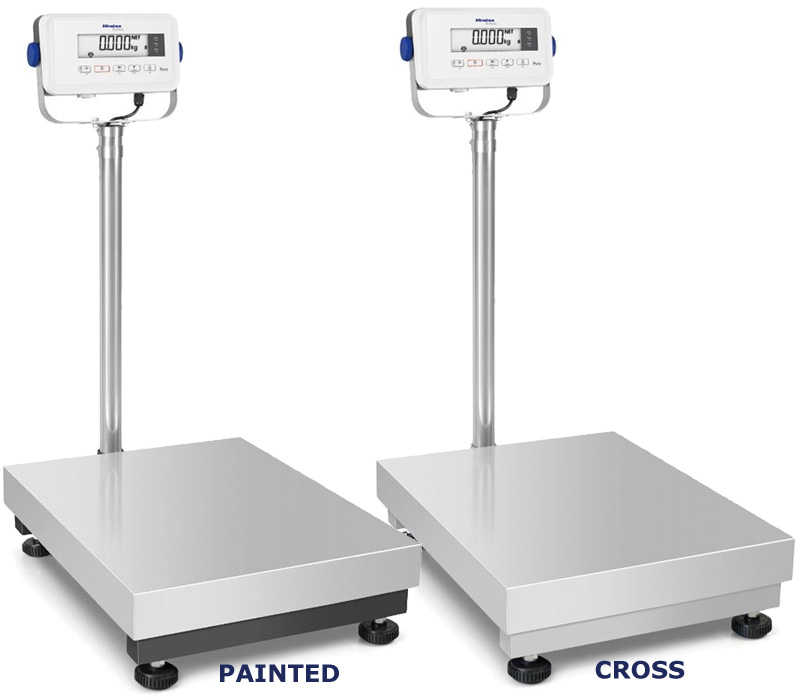

Minebea Puro® Industrial Bench Scales

Have Questions? or email Us Our Staff will be glad to help Specifications - PAINTED Steel Specifications - CROSS Steel

Minebea Puro® Industrial Bench Scales FREE UPS Ground Shipping (within the 48 continental US States) Select PAINTED Models 13.7 x 11.8 in PAINTED 66 x 0.01 lb $735.30 132 x 0.02 lb $735.30 21.65 x 16.53 in PAINTED 132 x 0.02 lb $818.10 330 x 0.05 lb $818.10 21.65 x 16.53 in PAINTED 330 x 0.05 lb $932.40 660 x 0.1 lb $932.40 CROSS Models 13.7 x 11.8 in CROSS 66 x 0.01 lb $1,108.80 132 x 0.02 lb $1,108.80 21.65 x 16.53 in CROSS 132 x 0.02 lb $1,538.10 330 x 0.05 lb $1,538.10 21.65 x 16.53 in CROSS 330 x 0.05 lb $1,974.60 660 x 0.1 lb $1,974.60 Minebea MD2000 Puro Scanner, add $283.50 Minebea YP-DP1 Puro Printer, add $396.90 Minebea YP-P1 Paper for Puro Printer - 10 Rolls, add $100.80

• Application package: Indicator
• Applications: Weighing, Counting, Check Weighing, Check Counting, Totalization
• Display: 1 front display
• Capacity: 60 kg
• Resolution: 6,000 d
• Protection class: IP43
• Material Indicator: plastic Frame: 304 stainless steel Load plate: 304 stainless steel
• Dimension in mm: 550 x 420 x 134

• Compact scales - The Puro® compact scales range offers a wide choice to meet almost every requirement. Large, bright displays and a traffic light function ensure comfortable user operation.
• Weight indicator - Reliable and accurate weighing results in almost no time along with high operational comfort increase productivity and streamline work processes.
• Bench scales and floor scales - In order to be to be the first choice in any weighing situation, Puro® bench and floor scales are available in different dimensions, capacities, resolutions and materials
• Bench platforms and floor platforms - The robust industrial design provides rugged solutions for a multitude of tasks along with accurate and reliable results within a second. Because of the model variety and the different construction materials the weighing platforms fit into any environment.

Minebea Intec is a leading manufacturer of industrial weighing and inspection technologies. We provide a wide, highly developed range of products, solutions and services to the industry for increasing the reliability, safety and efficiency of production and packaging lines.

Our ability to do this is based on the high quality of our products and services combined with around 150 years of experience and continuous investment in developing the relevant technology.

With a Minebea Intec product, customers can rely on services and solutions across the globe and throughout the product’s entire life cycle – from assistance in selecting the right equipment to design-in or installation support, calibration, maintenance and repair services to conduct equipment upgrades and user training sessions.

Our key market position as a leading global provider of products and solutions and passion for setting high standards in all areas of business are reflected in our company motto “The true measure”.

Puro® was developed on the principle of transferring our high-quality standards and leading technologies to a diverse and affordable range of industrial scales. The result is innovative weighing solutions that are intuitive to use and offer unique features to the market.

It is our aim to deliver the perfect industrial scale for every need, to every location and in the shortest possible time. An important function is thus already pre-installed in every Puro®: customer focus.

• Exceptional high operational comfort
• Smart, sophisticated and affordable product portfolio
• Up to 500 hours battery operation time.
• First industrial scale with standard charging via USB-C
• Worldwide delivery within only a few days

The MinebeaMitsumi group is a global precision electromechanical components manufacturer, providing products for various industries. Minebea was founded in 1951 in Japan, Mitsumi in 1954 and today has more than 78,000 employees as well as production and sales & service facilities in 16 countries around the globe. For many products, the MinebeaMitsumi group is No. 1 in terms of its global market share.

Puro® was specifically designed to help maximize productivity in a variety of industries and for a wide range of applications. You can choose your industrial scale according to your requirements.

Bench Scale Puro® Bench Scales
type	PAINTED Bench
MODEL	EF-4PDDP30-6d	EF-4PDDP60-6d	EF-4PFEP60-6d	EF-4PFEP150-6d	EF-4PGFP150-6d	EF-4PGFP300-6d
Price	$735.30 Add to Cart	$735.30 Add to Cart	$818.10 Add to Cart	$818.10 Add to Cart	$932.40 Add to Cart	$932.40 Add to Cart
Capacity / Readability (Lbs.)	66 x 0.01 lb	132 x 0.02 lb	132 x 0.02 lb	330 x 0.05 lb	330 x 0.05 lb	660 x 0.1 lb
Capacity / Readability (Kg.)	30 x 0.005 kg (30 kg x 50 g)	60 x 0.01 kg (60 kg x 10 g)	60 x 0.01 kg (60 kg x 10 g)	150 x 0.02 kg (150 kg x 20 g)	150 x 0.02 kg (150 kg x 20 g)	300 x 0.05 kg (300 kg x 50 g)
Capacity / Readability (OZ.)	1056 x 0.2 oz	2112 x 0.5 oz	2112 x 0.5 oz	5280 x 1 oz	5280 x 1 oz	10576 x 2 oz
Dimension (Inch)	13.7 x 11.8 in 350 x 300 x 110 mm (Column height: 300 mm - 11.8 in)		21.65 x 16.53 in 550 x 420 x 140 mm (Column height: 600 mm - 23.62 in)		25.59 x 19.68 in 650 x 500 x 145 mm (Column height: 600 mm - 23.62 in)
Material weight indicator	P ABS housing
Material weighing platform	P Painted carbon steel, 304 stainless steel load plate
Application package	Weighing, Counting, Check Weighing, Check Counting, Totalizing
Weighing units	kg, g, lb, oz, lb:oz
Ingress protection rating	IP43
Display	LCD display with white backlight, 1.4 in/35 mm height, 6 digits, 14-segment
Checkweighing indicators	3 LED (yellow, green, red) with configurable operation and alert beeper
Keypad	5 mechanical keys
Zero range	2 % or 10 % of full scale capacity
Tare range	Full capacity by subtraction
Stabilization time	1 second
Auto-zero tracking	Off, 0.5, 1 or 3 divisions
Safe overload	150 % of rated scale capacity
Leveling components	Externally visible level indicator and adjustable leveling feet
Power	100 – 240 V – 50/60 Hz AC adapter or internal rechargeable lithium battery
Battery operation time	Up to 500 hours operation time between recharges with 12 hour recharge time
Calibration	External, with calibration weight
Interface	Built-in USB-C, USB-A, RS232
Operating temperature	-10 oC to 40 oC
Product dimension	310 x 302 x 85 mm (w x d x h)
Product dimension mm	218 x 180 mm (w x l) - 8.58 x 7.08 in
Compliance electromagnetic compatibility	FCC Part 15 Class B, IEC 61326-1 (emissions Class B, immunity industrial requirements)

Bench Scale Puro® Bench Scales
type	CROSS Bench
MODEL	EF-4PDDS30-6d	EF-4PDDS60-6d	EF-4PFES60-6d	EF-4PFES150-6d	EF-4PGFS150-6d	EF-4PGFS300-6d
Price	$1,108.80 Add to Cart	$1,108.80 Add to Cart	$1,538.10 Add to Cart	$1,538.10 Add to Cart	$1,974.60 Add to Cart	$1,974.60 Add to Cart
Capacity / Readability (Lbs.)	66 x 0.01 lb	132 x 0.02 lb	132 x 0.02 lb	330 x 0.05 lb	330 x 0.05 lb	660 x 0.1 lb
Capacity / Readability (Kg.)	30 x 0.005 kg (30 kg x 50 g)	60 x 0.01 kg (60 kg x 10 g)	60 x 0.01 kg (60 kg x 10 g)	150 x 0.02 kg (150 kg x 20 g)	150 x 0.02 kg (150 kg x 20 g)	300 x 0.05 kg (300 kg x 50 g)
Capacity / Readability (OZ.)	1056 x 0.2 oz	2112 x 0.5 oz	2112 x 0.5 oz	5280 x 1 oz	5280 x 1 oz	10576 x 2 oz
Dimension (Inch)	13.7 x 11.8 in 350 x 300 x 110 mm (Column height: 300 mm - 11.8 in)		21.65 x 16.53 in 550 x 420 x 140 mm (Column height: 600 mm - 23.62 in)		25.59 x 19.68 in 650 x 500 x 145 mm (Column height: 600 mm - 23.62 in)
Material weight indicator	P ABS housing
Material weighing platform	S All 304 stainless steel structure
Application package	Weighing, Counting, Check Weighing, Check Counting, Totalizing
Weighing units	kg, g, lb, oz, lb:oz
Ingress protection rating	IP43
Display	LCD display with white backlight, 1.4 in/35 mm height, 6 digits, 14-segment
Checkweighing indicators	3 LED (yellow, green, red) with configurable operation and alert beeper
Keypad	5 mechanical keys
Zero range	2 % or 10 % of full scale capacity
Tare range	Full capacity by subtraction
Stabilization time	1 second
Auto-zero tracking	Off, 0.5, 1 or 3 divisions
Safe overload	150 % of rated scale capacity
Leveling components	Externally visible level indicator and adjustable leveling feet
Power	100 – 240 V – 50/60 Hz AC adapter or internal rechargeable lithium battery
Battery operation time	Up to 500 hours operation time between recharges with 12 hour recharge time
Calibration	External, with calibration weight
Interface	Built-in USB-C, USB-A, RS232
Operating temperature	-10 oC to 40 oC
Product dimension	310 x 302 x 85 mm (w x d x h)
Product dimension mm	218 x 180 mm (w x l) - 8.58 x 7.08 in
Compliance electromagnetic compatibility	FCC Part 15 Class B, IEC 61326-1 (emissions Class B, immunity industrial requirements)

Below you will find an overview of the product portfolio. If you have any questions, our distributors will be happy to help you.

	Compact scale smale		Compact scale large			Bench and floor scale	Indicator	Bench and floor platforms
	SmallFlat	SmallTall	LargeFlat	LargeTall	Count
Front Display	YES	YES	YES	YES	YES	YES	YES	-
Front and Rear Display	-	YES	-	YES	-	-	-	-
1.5 kg Capacity	YES	YES	YES	YES	YES	-	-	-
3 kg Capacity	YES	YES	YES	YES	YES	-	-	-
6 kg Capacity	YES	YES	YES	YES	YES	-	-	-
15 kg Capacity	YES	YES	YES	YES	YES	-	-	-
30 kg Capacity	YES	YES	YES	YES	YES	YES	-	-
60 kg Capacity	-	-	-	-	-	YES	-	-
150 kg Capacity	-	-	-	-	-	YES	-	-
300 kg Capacity	-	-	-	-	-	YES	-	-
1,500 kg Capacity	-	-	-	-	-	-	-	YES
3,000 kg Capacity	-	-	-	-	-	-	-	YES
30,000 d Resolution	YES	YES	YES	YES	YES	-	YES	-
6,000 d Resolution	-	-	-	-	-	YES	-	YES
3,000 d Resolution	-	-	-	-	-	YES	-	YES
Application package - Advanced	YES	YES	YES	YES	-	-	-	-
Application package - Count Professional	-	-	-	-	YES	-	-	-
Application package - Indicator	-	-	-	-	-	YES	YES	-
