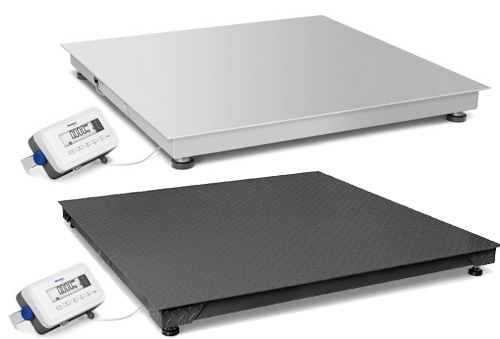

The Puro® Floor Scales are a multi-functional weighing solution for diverse industrial weighing needs. The scales unite the most needed applications in one multi-purpose indicator with large display for a comfortable user operating experience along with accurate and reliable results in a second. Combined with the robustness and durability of the platforms, the bench scales fit comfortably in any environment while offering simple charging and connection technology.
The exceptionally user-friendly floor scale with robust industrial design
- Large, bright display for easy
- and comfortable weighing
- Instant stabilisation
- Highly developed battery with
- exceptional operating time
- Easy charging via USB-C
- Compact scales - The Puro® compact scales range offers a wide choice to meet almost every requirement. Large, bright displays and a traffic light function ensure comfortable user operation.
- Weight indicator - Reliable and accurate weighing results in almost no time along with high operational comfort increase productivity and streamline work processes.
- Bench scales and floor scales - In order to be to be the first choice in any weighing situation, Puro® bench and floor scales are available in different dimensions, capacities, resolutions and materials
- Bench platforms and floor platforms - The robust industrial design provides rugged solutions for a multitude of tasks along with accurate and reliable results within a second. Because of the model variety and the different construction materials the weighing platforms fit into any environment.
The true measure
Minebea Intec is a leading manufacturer of industrial weighing and inspection technologies. We provide a wide, highly developed range of products, solutions and services to the industry for increasing the reliability, safety and efficiency of production and packaging lines.
Our ability to do this is based on the high quality of our products and services combined with around 150 years of experience and continuous investment in developing the relevant technology.
With a Minebea Intec product, customers can rely on services and solutions across the globe and throughout the product’s entire life cycle – from assistance in selecting the right equipment to design-in or installation support, calibration, maintenance and repair services to conduct equipment upgrades and user training sessions.
Our key market position as a leading global provider of products and solutions and passion for setting high standards in all areas of business are reflected in our company motto “The true measure”.
Puro® was developed on the principle of transferring our high-quality standards and leading technologies to a diverse and affordable range of industrial scales. The result is innovative weighing solutions that are intuitive to use and offer unique features to the market.
It is our aim to deliver the perfect industrial scale for every need, to every location and in the shortest possible time. An important function is thus already pre-installed in every Puro®: customer focus.
Special characteristics
- Exceptional high operational comfort
- Smart, sophisticated and affordable product portfolio
- Up to 500 hours battery operation time.
- First industrial scale with standard charging via USB-C
- Worldwide delivery within only a few days
The MinebeaMitsumi group
The MinebeaMitsumi group is a global precision electromechanical components manufacturer, providing products for various industries. Minebea was founded in 1951 in Japan, Mitsumi in 1954 and today has more than 78,000 employees as well as production and sales & service facilities in 16 countries around the globe. For many products, the MinebeaMitsumi group is No. 1 in terms of its global market share.
How to select your Puro
Puro® was specifically designed to help maximize productivity in a variety of industries and for a wide range of applications. You can choose your industrial scale according to your requirements.
|
|
Puro® Floor Scales |
type |
Floor PAINTED |
MODEL |
EF-4PLLP1500-3d |
EF-4PNNP1500-3d |
EF-4PNNP3000-3d |
EF-4PRRP1500-3d |
EF-4PRRP3000-3d |
Price |
$1,470.60
|
$1,638.00
|
$1,638.00
|
$1,830.60
|
$1,830.60
|
Capacity / Readability (Lbs.) |
3,000 x 1 lb |
3,000 x 1 lb |
6,000 x 2 lb |
3,000 x 1 lb |
6,000 x 2 lb |
Capacity / Readability (Kg.) |
1500 x 0.5 kg |
1500 x 0.5 kg |
3000 x 1 kg |
1500 x 0.5 kg |
3000 x 1 kg |
Dimension (Inch) |
39.37 x 39.37 in 1000 x 1000 x 105 mm |
49.21 x 49.21 in 1250 x 1250 x 105 mm |
59.05 x 59.05 in 1500 x 1500 x 105 mm |
Material weight indicator |
P ABS housing |
Material weighing platform |
P Painted carbon steel, Painted carbon steel with checker plate |
Application package |
Weighing, Counting, Check Weighing, Check Counting, Totalizing |
Weighing units |
kg, g, lb, oz, lb:oz |
Ingress protection rating |
IP43 |
Display |
LCD display with white backlight, 1.4 in/35 mm height, 6 digits, 14-segment |
Keypad |
5 mechanical keys |
Zero range |
2 % or 10 % of full scale capacity |
Tare range |
Full capacity by subtraction |
Stabilization time |
1 second |
Auto-zero tracking |
Off, 0.5, 1 or 3 divisions |
Safe overload |
150 % of rated scale capacity |
Leveling components |
Externally visible level indicator and adjustable leveling feet |
Power |
100 – 240 V – 50/60 Hz AC adapter or internal rechargeable lithium battery |
Battery operation time |
Up to 500 hours operation time between recharges with 12 hour recharge time |
Calibration |
External, with calibration weight |
Interface |
Built-in USB-C, USB-A, RS232, optional Bluetooth or WIFI (call us)_ |
Operating temperature |
-10 oC to 40 oC |
Compliance electromagnetic compatibility |
FCC Part 15 Class B, IEC 61326-1 (emissions Class B, immunity Industrial requirements) |
Puro® Floor Scales |
type |
Floor CROSS |
MODEL |
EF-4PLLS1500-3d |
EF-4PNNS1500-3d |
EF-4PNNS3000-3d |
EF-4PRRS1500-3d |
EF-4PRRS3000-3d |
Price |
$2,602.80
|
$2,892.60
|
$2,892.60
|
$3,566.70
|
$3,566.70
|
Capacity / Readability (Lbs.) |
3,000 x 1 lb |
3,000 x 1 lb |
6,000 x 2 lb |
3,000 x 1 lb |
6,000 x 2 lb |
Capacity / Readability (Kg.) |
1500 x 0.5 kg |
1500 x 0.5 kg |
3000 x 1 kg |
1500 x 0.5 kg |
3000 x 1 kg |
Dimension (Inch) |
39.37 x 39.37 in 1000 x 1000 x 105 mm |
49.21 x 49.21 in 1250 x 1250 x 105 mm |
59.05 x 59.05 in 1500 x 1500 x 105 mm |
Material weight indicator |
P ABS housing |
Material weighing platform |
S All 304 stainless steel structure |
Application package |
Weighing, Counting, Check Weighing, Check Counting, Totalizing |
Weighing units |
kg, g, lb, oz, lb:oz |
Ingress protection rating |
IP43 |
Display |
LCD display with white backlight, 1.4 in/35 mm height, 6 digits, 14-segment |
Keypad |
5 mechanical keys |
Zero range |
2 % or 10 % of full scale capacity |
Tare range |
Full capacity by subtraction |
Stabilization time |
1 second |
Auto-zero tracking |
Off, 0.5, 1 or 3 divisions |
Safe overload |
150 % of rated scale capacity |
Leveling components |
Externally visible level indicator and adjustable leveling feet |
Power |
100 – 240 V – 50/60 Hz AC adapter or internal rechargeable lithium battery |
Battery operation time |
Up to 500 hours operation time between recharges with 12 hour recharge time |
Calibration |
External, with calibration weight |
Interface |
Built-in USB-C, USB-A, RS232, optional Bluetooth or WIFI (call us)_ |
Operating temperature |
-10 oC to 40 oC |
Compliance electromagnetic compatibility |
FCC Part 15 Class B, IEC 61326-1 (emissions Class B, immunity Industrial requirements) |
Below you will find an overview of the product portfolio. If you have any questions, our distributors will be happy to help you.
|
Compact scale smale |
Compact scale large |
Bench and floor scale |
Indicator |
Bench and floor platforms |
|
SmallFlat |
SmallTall |
LargeFlat |
LargeTall |
Count |
image |
|
|
|
|
|
|
|
|
Front Display |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
- |
Front and Rear Display |
- |
YES |
- |
YES |
- |
- |
- |
- |
1.5 kg Capacity |
YES |
YES |
YES |
YES |
YES |
- |
- |
- |
3 kg Capacity |
YES |
YES |
YES |
YES |
YES |
- |
- |
- |
6 kg Capacity |
YES |
YES |
YES |
YES |
YES |
- |
- |
- |
15 kg Capacity |
YES |
YES |
YES |
YES |
YES |
- |
- |
- |
30 kg Capacity |
YES |
YES |
YES |
YES |
YES |
YES |
- |
- |
60 kg Capacity |
- |
- |
- |
- |
- |
YES |
- |
- |
150 kg Capacity |
- |
- |
- |
- |
- |
YES |
- |
- |
300 kg Capacity |
- |
- |
- |
- |
- |
YES |
- |
- |
1,500 kg Capacity |
- |
- |
- |
- |
- |
- |
- |
YES |
3,000 kg Capacity |
- |
- |
- |
- |
- |
- |
- |
YES |
30,000 d Resolution |
YES |
YES |
YES |
YES |
YES |
- |
YES |
- |
6,000 d Resolution |
- |
- |
- |
- |
- |
YES |
- |
YES |
3,000 d Resolution |
- |
- |
- |
- |
- |
YES |
- |
YES |
Application package - Advanced |
YES |
YES |
YES |
YES |
- |
- |
- |
- |
Application package - Count Professional |
- |
- |
- |
- |
YES |
- |
- |
- |
Application package - Indicator |
- |
- |
- |
- |
- |
YES |
YES |
- |
|
