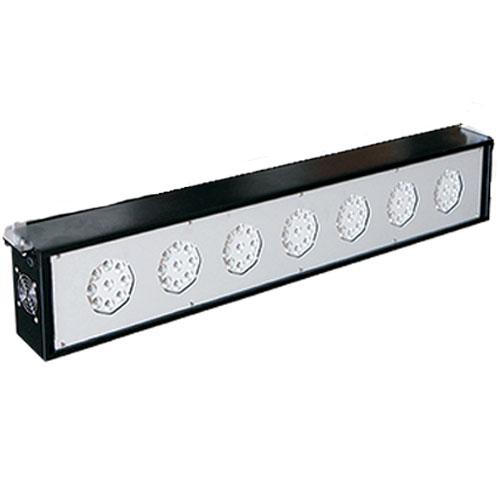

Shimpo ST-329BL-1 Blacklight Stroboscope Array, 20in (500 mm) ,120 VAC, 27 LED's in 3 groups

SHIMPO INSTRUMENTS
Series ST-329BL is a permanent mount blacklight stroboscope array utilizing super bright, CREE high powered LED lamps. The ST-329BL’s LED array provides a bright, stable black light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. more ...
Scales > Industrial Scales > Accessories
Shimpo ST-329BL-1 Blacklight Stroboscope Array, 20in (500 mm) ,120 VAC, 27 LED's in 3 groups




Call for more info
Download PDF
Shimpo ST-329BL-1 Blacklight Stroboscope Array, 20in (500 mm) ,120 VAC, 27 LED's in 3 groups
FREE Ground Shipping
(48 US States Only)

Price: $1,440.00


In Stock - Ships within 24 hours

Optional Accessories

View Features

Shimpo
SKU: ST-329BL-1

Features

Series ST-329BL is a permanent mount blacklight stroboscope array utilizing super bright, CREE high powered LED lamps. The ST-329BL’s LED array provides a bright, stable black light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. The ST-329BL arrays are available in several standard sizes from 9.25” (235 mm) to 65” (1650 mm) in length. Custom sizes are available upon request. The arrays are easily mountable on production equipment. An optional mounting adapter kit is available to aid in array installation. A separate control enclosure is connected with 6.5’ (2 m) cable to the array. Operation is simple with the 8 button keypad and large, backlit LCD display. Phase shift, flash duration, plus flash rate are all quickly adjustable via the control. The unit can work off user programmed flash frequency or from a remote sensor’s signal which will automatically adjust to corresponding process fluctuations.

The ST-329BL is designed for speed and frequency measurements in the printing, packaging, textile, automotive, cable, medical industries in various applications.

FEATURES
  • Wide Flash Range 60 – 120,000 Flashes/min. can be adjusted to meet almost any high-speed application
  • Long-life LED operation
  • Adjustable Flash Pulse duration achieves sharper images for detailed inspection
  • Phase Shift Advances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or “drifting” images
  • Input sensor trigger function allows process machinery to control flash rate
  • Delay time adjustment combined with leading or trailing edge activation simplifies process set-up when using external signal input
  • Ten standard size lengths from 9” (235 mm) to 65” (1650 mm). Custom options available
  • x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning
Flash Rate Range 60 to 120,000 FPM
Accuracy 0.01%±1 digit of F.S. @ 77° F (25°C)
Lamp Lifetime Approximately 3~5 years depending on usage.
Display Backlit LCD
Resolution 60 ~12,000 FPM = 0.1 FPM; 12,001~120,000 FPM = 1 FPM
Flash Duration 0.1°- 2.5°
Phase Shift 0-359°
Power Requirement 100-120 VAC; Optional 220-260 VAC
Input Signal 12 V Pulse Input; M-12, 3 pin
Input Signal Range 60-120,000 FPM
Input Pulse Width Over 50us
Input Signal Flash Delay 0-999 ms; 0-359°
Temperature Limits 32-95°F (0-35°C)
Humidity Limits 35 to 85% RH
Enclosure Control - ABS; Array - ABS window & aluminum frame
Mounting Control: Magnetic mount to include bracket; Array: Flanges for use with 6 mm bolts. Mounting bracket kit available separately.
Enclosure Rating IP65 - Control & Array
Dimensions Length (See model chart) x 6” (153 mm) x 3.5” (90 mm)
Approvals CE
Included Accessories 6.5’ (2 m) AC power cord, 9.8’ (3 m) control/array connection cable (5 pin)

Weight: 30.00 lb
1 Year Manufacture Warranty
Other Shimpo Blacklight Stroboscope Arrays

ST-329BL-0
Blacklight Stroboscope Array
9.25in (235 mm)
120 VAC
18 LED's in 2 groups

$1,170.00

ST-329BL-1
Blacklight Stroboscope Array
20in (500 mm)
120 VAC
27 LED's in 3 groups

$1,440.00

You are viewing this product

ST-329BL-2
Blacklight Stroboscope Array
24in (600 mm)
120 VAC
36 LED's in 4 groups

$1,575.00

ST-329BL-3
Blacklight Stroboscope Array
31in (800 mm)
120 VAC
54 LED's in 6 groups

$1,710.00

ST-329BL-4
Blacklight Stroboscope Array
39in (1000 mm)
120 VAC
63 LED's in 7 groups

$1,845.00

ST-329BL-5
Blacklight Stroboscope Array
39in (1000 mm)
120 VAC
72 LED's in 8 groups

$1,980.00

ST-329BL-6
Blacklight Stroboscope Array
47in (1200 mm)
120 VAC
81 LED's in 9 groups

$2,205.00

ST-329BL-7
Blacklight Stroboscope Array
47in (1200 mm)
120 VAC
90 LED's in 10 groups

$2,385.00

ST-329BL-8
Blacklight Stroboscope Array
63in (1600 mm)
120 VAC
99 LED's in 11 groups

$2,610.00

ST-329BL-9
Blacklight Stroboscope Array
65in (1650 mm)
120 VAC
108 LED's in 12 groups

$2,728.00

* within the 48 continental US States


Optional Accessories


Shimpo MK-320 Mounting Kit for ST-32X Stroboscopes
more info
Shimpo MK-320 Mounting Kit for ST-32X Stroboscopes
more info
Price: $112.50
In Stock
btn buy
SHIMPO MK-320 Mounting kit for ST-32X Stroboscope Series
Shimpo E2E-X5ME1-Z Proximity Sensor for the SHIMPO Stroboscopes
more info
Shimpo E2E-X5ME1-Z Proximity Sensor for the SHIMPO Stroboscopes
more info
Price: $35.00
In Stock
btn buy
Proximity Sensor with M-12 3 pin Connection for the SHIMPO ST-328, ST-329, ST-329BL and ST-320BL Stroboscope Series.
