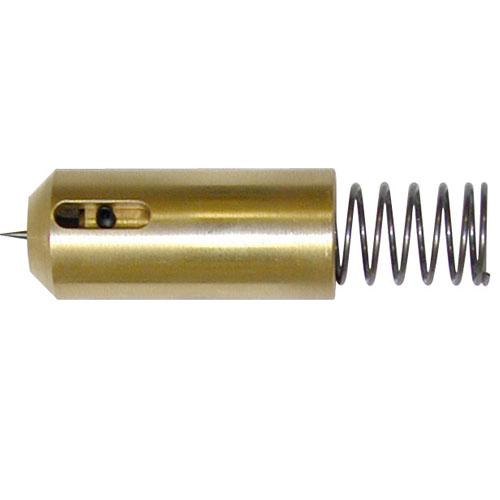

Name: Shimpo FG-M6PUNCTURE-ST Puncture Test Attachment, M6 Thread
Brand: Shimpo
SKU: 46755
Price: 76.50 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

Shimpo FG-M6PUNCTURE-ST Puncture Test Attachment, M6 Thread
The FG-M6PUNCTURE-ST adapter operation is quite simple. The outer shell of the FG-M6PUNCTURE-ST retracts as a load is applied to the test material. As the retraction of the outer shell occurs, the pin becomes exposed. The puncture test continues until the outer shell comes to a stop from contact with the base of the force gauge. more ...

Test Equipment > Grips and Attachments > Compression - Bend - Push

Shimpo FG-M6PUNCTURE-ST Puncture Test Attachment, M6 Thread

View Full Detail Page

Features

Puncture Test Measure the hardness or puncture resistance of a material.

A large variety of materials need to be able to withstand a specific threshold of puncture force in order to pass certain quality standards. Specifically Gypsum board, or drywall, must be tested in order to determine the ASTM Standard classification level of the product. ASTM C1629 provides details for classifying Abuse-Resistance Non-decorated Interior Gypsum Panel Products and Fiber-Reinforced Cement Panels.

Quality Technicians needing to classify their products to this ASTM standard can utilize the Nidec-SHIMPO FG-M6PUNCTURE-ST adapter. Attaching this adapter to one of Shimpo’s digital or mechanical force gauges creates an ideal testing kit for determining the indentation resistance.

The FG-M6PUNCTURE-ST adapter operation is quite simple. The outer shell of the FG-M6PUNCTURE-ST retracts as a load is applied to the test material. As the retraction of the outer shell occurs, the pin becomes exposed. The puncture test continues until the outer shell comes to a stop from contact with the base of the force gauge. The maximum force reading displayed on the gauge is the resultant puncture resistance of the test material.

The FG-M6PUNCTURE-ST combined with the Shimpo force gauge can be used to test puncture resistance on a multitude of materials such as: foam, cardboard, cork, tubing, membranes, baked goods, and even the ripeness of fruits or vegetables.

FG-M6PUNCTURE-ST accessory
Any Shimpo Series Mechanical or Digital Force Gauge with recommended ranges of 20 lb (10 kg) to 100 lb (50 kg):

Weight: 1.00 lb

1 Year Manufacture Warranty

Other Shimpo M6 Grips For use with 2 - 200 lb force gauges

FG-M6PUNCTURE-ST Puncture Test Attachment M6 Thread $76.50 You are viewing this product	FG-M4PIN05 0.5 mm Pin Head Grip M4 Thread 22 lb (11 kg) Capacity $112.50	FG-M6PIN05 0.5 mm Pin Head Grip M6 Thread 22 lb (11 kg) Capacity $112.50	FG-M6PIN2 2 mm Pin Head Grip M6 Thread 22 lb (11 kg) Capacity $117.00	FG-M4PIN1 1 mm Pin Head Grip M6 Thread 22 lb (11 kg) Capacity $117.00
FG-M4PIN2 2 mm Pin Head Grip M4 Thread 22 lb (11 kg) Capacity $117.00	FG-M6FLM50U 50 mm Wide Film Grip M6 Thread 100 lb (50 kg) Capacity $135.00	FG-M6FLM20 20 mm Wide Film Frip M6 Thread 100 lb (50 kg) Capacity $135.00	FG-M6FPG3 3 mm Fine Point Grip M6 Thread 30 lb (15 kg) Capacity $135.00	FG-M6FPG8 8 mm Fine Point Grip M6 Thread 60 lb (30 kg) Capacity $135.00
FG-M4FPG8 8 mm Fine Point Grip M4 Thread 60 lb (30 kg) Capacity $135.00	FG-M6JAC5U Jacobs Chuck Grip M6 Thread 100 lb (50 kg) Capacity $144.00	FG-FLM50B 2inch (50 mm) Wide Film Grip Bottom 100 lb (50 kg) Max. Capacity $162.00	FG-JAC5B Jacobs Chuck Grip Bottom 500 lb (225 kg) Max. Capacity $171.00	FG-M6FTG20U Flat Tensile Grip M6 Thread 100 lb (50 kg) Capacity $198.00
FG-M6SPO10U Spool Grip M6 Thread 100 lb (50 kg) Capacity $198.00	FG-M6TAP30U 30 mm Tape Grip M6 Thread 100 lb (50 kg) Capacity $225.00	FG-M6WDG50U Small Capacity Wedge Grip M6 Thread 100 lb (50 kg) Capacity $360.00	FG-M10WDG500U High Capacity Wedge Grip M10 Thread 500 lb (250 kg) Capacity $877.50
